1688085-00 - Simplicity 18" Seat Kit, High Back With Armrests Seat Kit Parts Diagram

18" Seat Kit, High Back With Armrests

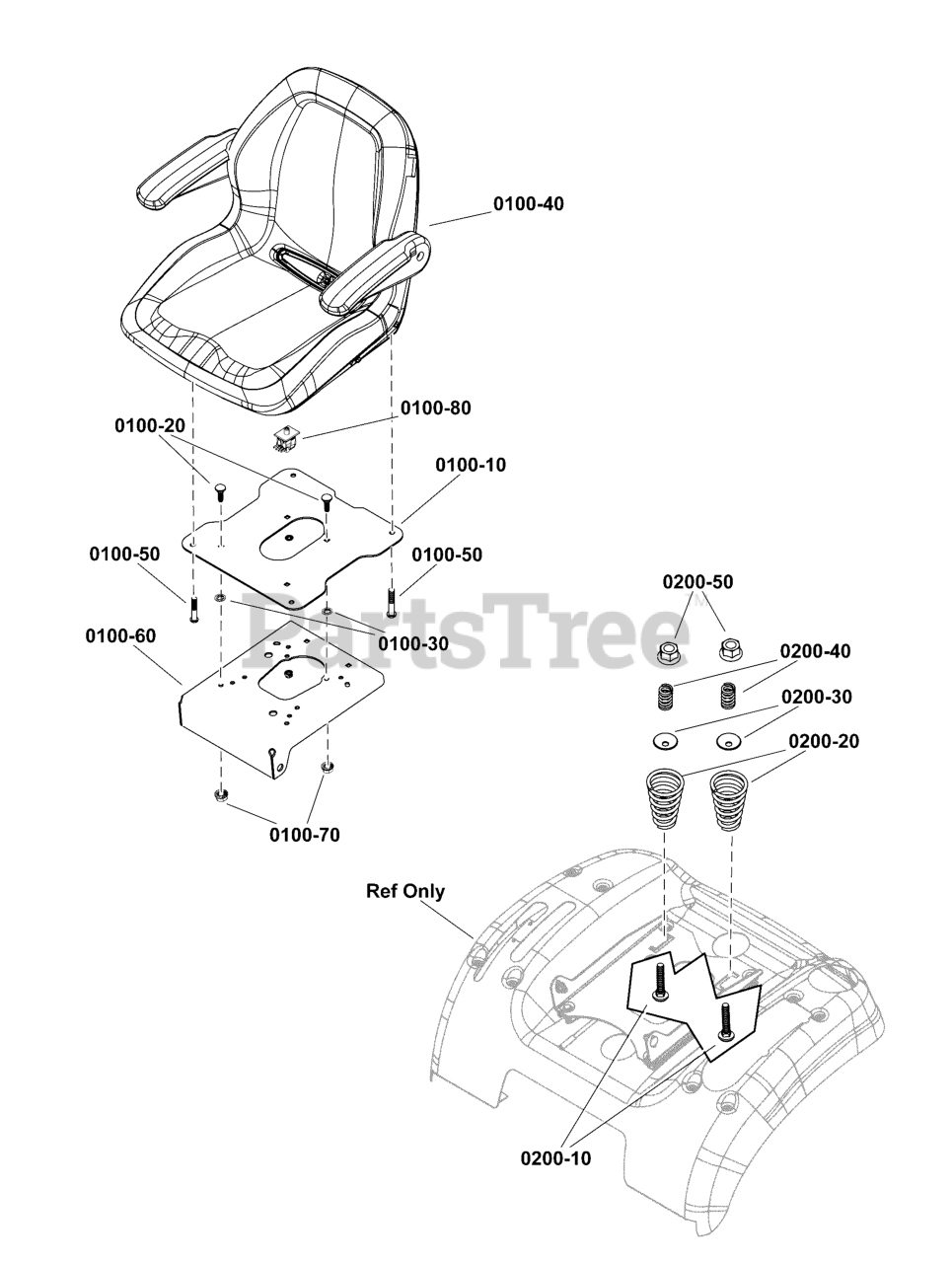

Seat Kit Parts Diagram

  • Title

0100-10

Simplicity 84003735

ADAPTER

$86.99

$

Usually ships in 2-12 days

0

0100-20

Simplicity 704065

BOLT, Carriage, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 14

0

0100-30

Simplicity 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 8

0

0100-40

Simplicity 84003734

SEAT

$523.99

$

Usually ships in 2-12 days

0

0100-50

Simplicity 703172

SCREW, Button Head

$4.49

$

Usually ships in 2-12 days

0

0100-60

Simplicity 1755623AYP

BRACKET, Seat Support

$128.99

$

Usually ships in 2-12 days

0

0100-70

Simplicity 703409

NUT, Serrated Lock Flange, 5/16-18

$5.99

$

In Stock, Qty 20+

0

0100-80

Simplicity 5101280YP

SWITCH, Low Prof, NC/NO

$32.99

$

In Stock, only 2 left!

0

--

HARDWARE BAG

Note: (Not a serviceable item, order components)

$

$

Not available

0200-10

Simplicity 704035

BOLT, Carriage, 5/16-18 X 2

$4.49

$

In Stock, only 2 left!

0

0200-20

Simplicity 1717051SM

SPRING, Seat

$14.99

$

In Stock, only 2 left!

0

0200-30

Simplicity 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$6.49

$

In Stock, Qty 11

0

0200-40

Simplicity 1714263SM

SPRING, Compression

$5.49

$

Usually ships in 2-12 days

0

0200-50

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0
