16880 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) MOWER HOUSING (MODEL NO. 16880) Parts Diagram

Walk-Behind Mower

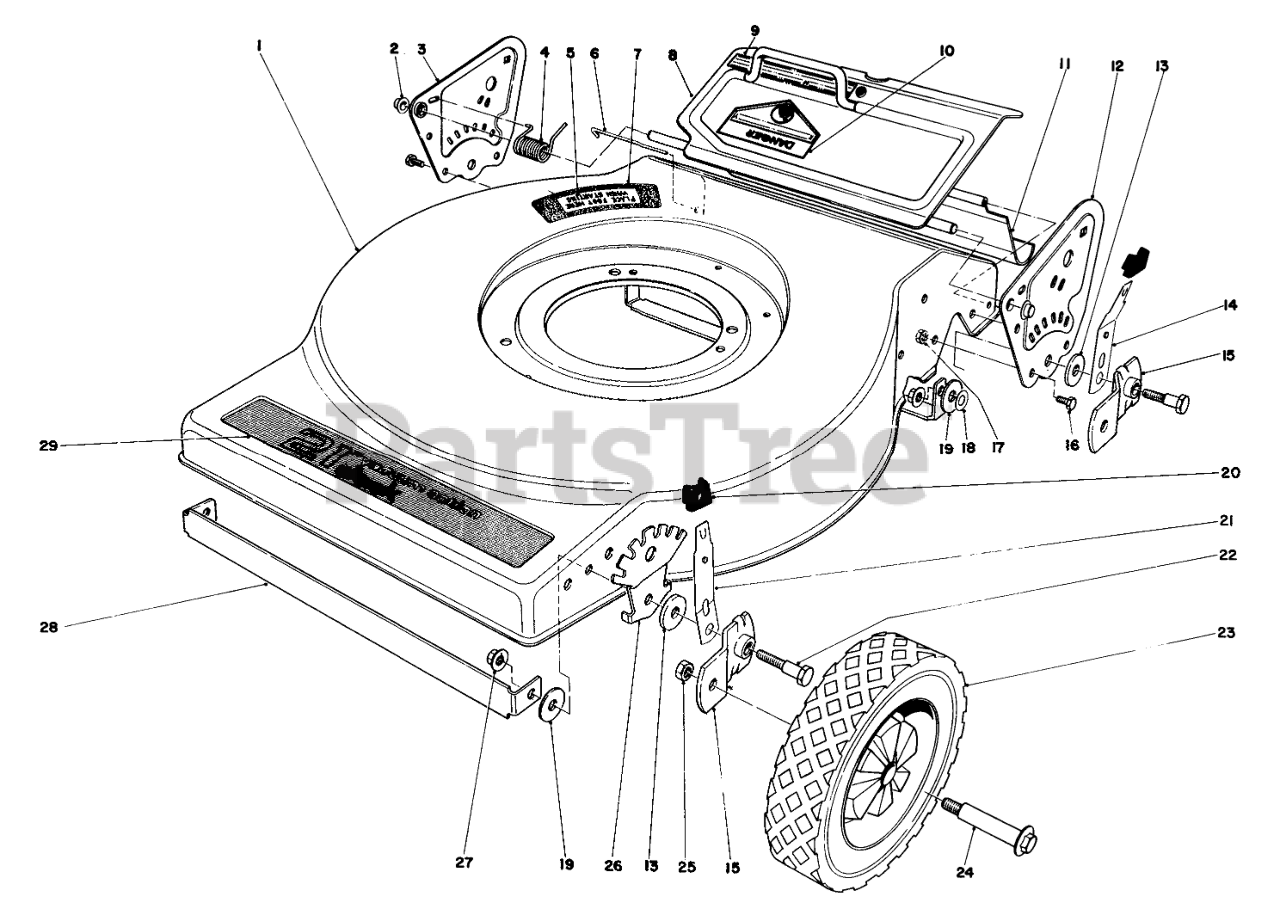

MOWER HOUSING (MODEL NO. 16880) Parts Diagram

  • Title

1

Toro 8-7799

Housing

$

$

Not available

2

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

3

Toro 374380

Side Plate R.H

$

$

Currently unavailable

4

Toro 37-9420

TORSION SPRING

$

$

Not available

5

Toro 36-2820

Decal Step Pad

$

$

Not available

6

Toro 33-3204

SHIELD ROD

$

$

Not available

7

Toro 37-0030

PAD STEP

$

$

Not available

8

Toro 38-0700

Rear Door

$

$

Not available

9

Toro 39-9090

Decal-Door

$

$

Not available

10

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

11

Toro 36-6330

SAF SHIELD REAR

$

$

Not available

12

Toro 374390

Side Plate L. H.

$

$

Currently unavailable

13

Toro 33-0390

PIVOT WASHER

$3.99

$

In Stock, only 2 left!

0

14

Toro 374830

Spring Arm

$

$

Currently unavailable

15

Toro 24-7710

PIVOT ARM ASM A

$147.99

$

Usually ships in 3-6 days

0

Toro 23-9120

PIVOT ARM ASM B

Note: Not illustrated

$

$

Not available

16

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

17

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 20+

0

20

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

21

Toro 25-8000

SPRING ARM ASM

$

$

Not available

22

Toro 364670

Cup Spacer

$

$

Currently unavailable

23

Toro 34-0390

Wheel & Tire Assembly
(Superseded to 27-6200)

$

$

Not available

24

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

25

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

26

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

27

Toro 32128-30

NUT

$3.49

$

Usually ships in 3-6 days

0

28

Toro 36-6830

DECK SUPPORT

$

$

Not available

29

Toro 39-9060

Decal-Deck

$

$

Not available
