16880 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) GEAR CASE ASSEMBLY (MODEL NO. 16890) Parts Diagram

Walk-Behind Mower

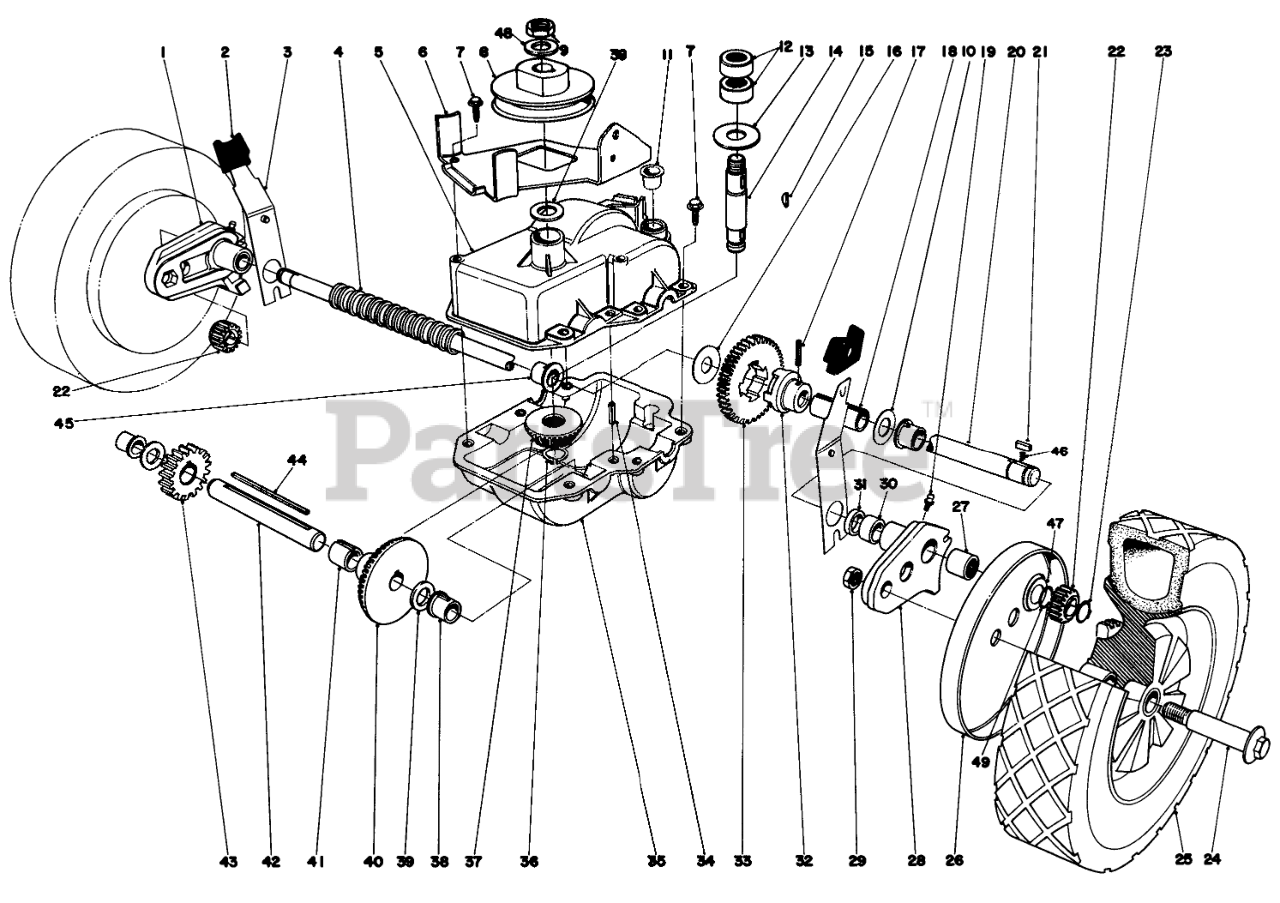

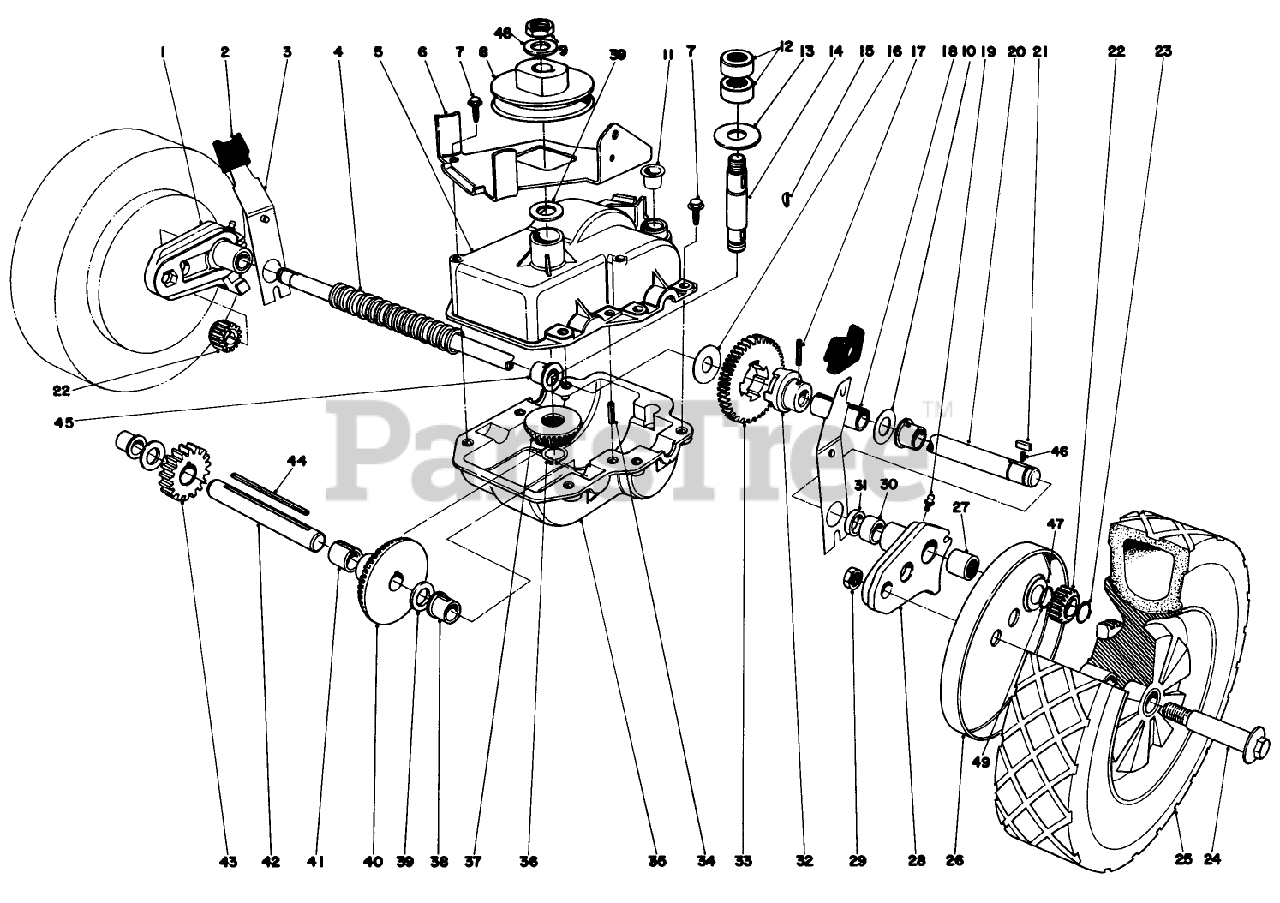

GEAR CASE ASSEMBLY (MODEL NO. 16890) Parts Diagram

  • Title

1

Toro 29-9590

Pivot Arm R.H. (Incl. Ref. #19, 27 & 30-31)
(Superseded to 49-7720)

$

$

Not available

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

3

Toro 37-4820

SP SPRING ARM ASM

$

$

Not available

4

Toro 37-9281

Cover Drive Shaft

$

$

Not available

5

Toro 39-7280

Case Upper

$

$

Not available

6

Toro 37-4460

Bracket-Belt Guide

$

$

Not available

7

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

8

Toro 39-6740

PULLEY

$54.99

$

Usually ships in 3-6 days

0

9

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

10

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

11

Toro 12-0510

Caplug

$

$

Not available

12

Toro 252-97

Bearing
(Superseded to 47-7270)

$30.99

$

In Stock, only 4 left!

0

13

Toro 256-196

Thrust Washer
(Superseded to 47-2910)

$13.99

$

In Stock, only 1 left!

0

14

Input Shaft

$

$

Not available

15

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

16

Toro 29-9690

WASHER

$13.99

$

Usually ships in 3-6 days

0

17

Toro 32121-95

COIL PIN
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

18

Toro 36-9120

Spacer-Output Shaft

$

$

Not available

19

Toro 302-18

FITTING-GREASE

$4.49

$

Usually ships in 3-6 days

0

20

Toro 39-9750

Output Shaft
(Superseded to 12-4779)

$206.99

$

Usually ships in 3-6 days

0

21

Toro 39-9680

KEY RECTANGULAR

$5.99

$

In Stock, Qty 20+

0

22

Toro 39-9160

GEAR-PINION

$14.99

$

In Stock, Qty 5

0

23

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

24

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

25

Toro 36-7790

Wheel & Tire Assembly
(Superseded to 11-1419)

$

$

Not available

26

Toro 36-5630

Cover-Wheel
(Superseded to 36-5630-03)

$36.99

$

Usually ships in 3-6 days

0

27

Toro 252-96

Needle Baring
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

28

Toro 29-9640

Pivot Arm L.H. (Incl. Ref. #19, 27 & 30-31)
(Superseded to 49-7710)

$

$

Not available

29

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

30

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

31

Toro 253-140

Seal
(Superseded to 47-6730)

$13.99

$

In Stock, Qty 20+

0

32

Toro 36-6280

ADAPTER DRIVE

$

$

Not available

33

Toro 29-9270

Gear
(Superseded to 29-9271)

$94.99

$

Usually ships in 3-6 days

0

34

Toro 32121-100

ROLL PIN 3/16 X 1 IN

$1.99

$

Usually ships in 3-6 days

0

35

Toro 29-9410

LOWER GEAR CASE CAST

$

$

Not available

36

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

37

Pinion Bevel

$

$

Not available

38

Toro 29-9350

Botching Shaft
(Superseded to 52-5410)

$

$

Not available

39

Toro 36-4790

WASHER-THRUST

$3.49

$

Usually ships in 3-6 days

0

40

Toro 39-6670

BEVEL GEAR

$

$

Not available

41

Toro 37-4760

Shaft-Pivot

$

$

Not available

42

Toro 39-6680

Sort Shaft

$

$

Not available

43

Toro 39-6630

14 T GEAR

$

$

Not available

44

Toro 39-7840

Key Square
(Superseded to 39-7842)

$2.99

$

In Stock, Qty 13

0

45

Toro 29-9310

Bushing
(Superseded to 47-5220)

$

$

Not available

46

Toro 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 20+

0

47

Toro 252-73

Washer
(Superseded to 60-8030)

$

$

Not available

48

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

49

Toro 32151-11

RING-EXT GRIP

$11.99

$

In Stock, Qty 5

0

Toro 8-7819

Gear Case Assembly (Incl. Ref. #5-18, 20 & 32-45)

Note: Not illustrated

$

$

Not available

Toro 8-6799

Input Shaft & Pinion Assembly (Incl. Ref. #14 & 37)

Note: Not illustrated

$

$

Not available
