1687781 YP - Snapper Belt Spacer Kit for 46" Mower Deck Belt & Spacer Kit Parts Diagram

Belt Spacer Kit for 46" Mower Deck

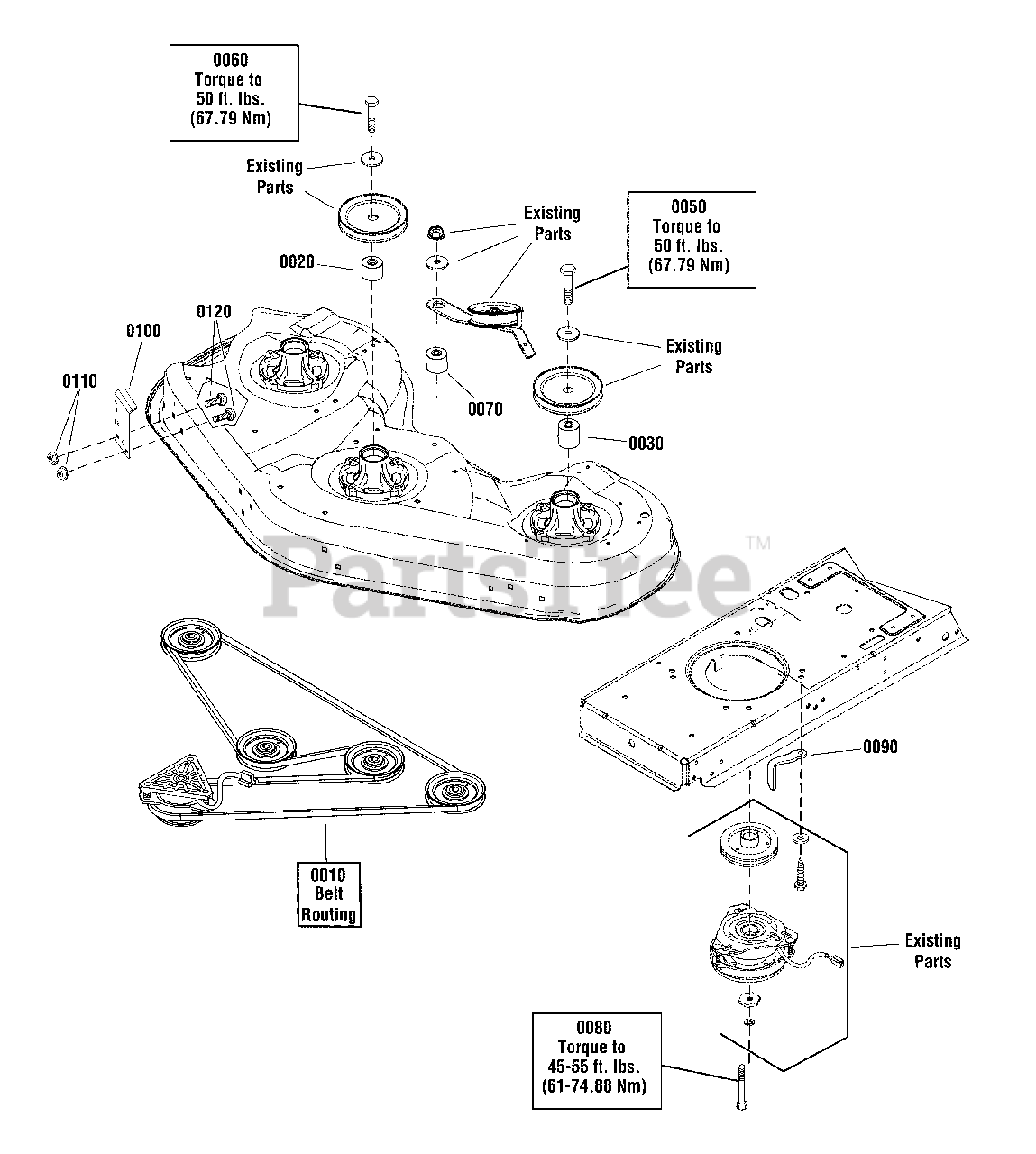

Belt & Spacer Kit Parts Diagram

  • Title
0010

Snapper 1732956SM

V-BELT, HA

$75.99

$

In Stock, Qty 7

0

0020

Snapper 1736445YP

SPACER, Pulley, 1" LG

$13.99

$

In Stock, only 1 left!

0

0030

Snapper 1757967YP

SPACER, Step, 1.75" LG

$53.99

$

Usually ships in 2-12 days

0

0050

Snapper 706301

CAPSCREW, Hex Head, 7/16-20 X 2 1/2, GR5

$5.99

$

Usually ships in 2-12 days

0

0060

Snapper 703171

CAPSCREW, Hex Head, 7/16-14 X 1 3/4, GR5

$3.99

$

In Stock, Qty 6

0

0070

Snapper 1729007SM

SPACER, Step, 1.04" LG

$11.99

$

In Stock, Qty 20+

0

0080

Snapper 1960649SM

CAPSCREW, Hex Head, 7/16-20 X 3 1/2, GR5

$7.49

$

In Stock, only 1 left!

0

0090

Snapper 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, Qty 10

0

0100

Snapper 1736991BM

UP STOP
(Superseded to 1736991AYP)

$12.99

$

Usually ships in 2-12 days

0

0110

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0120

Snapper 704065

BOLT, Carriage Short Neck, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 5

0
