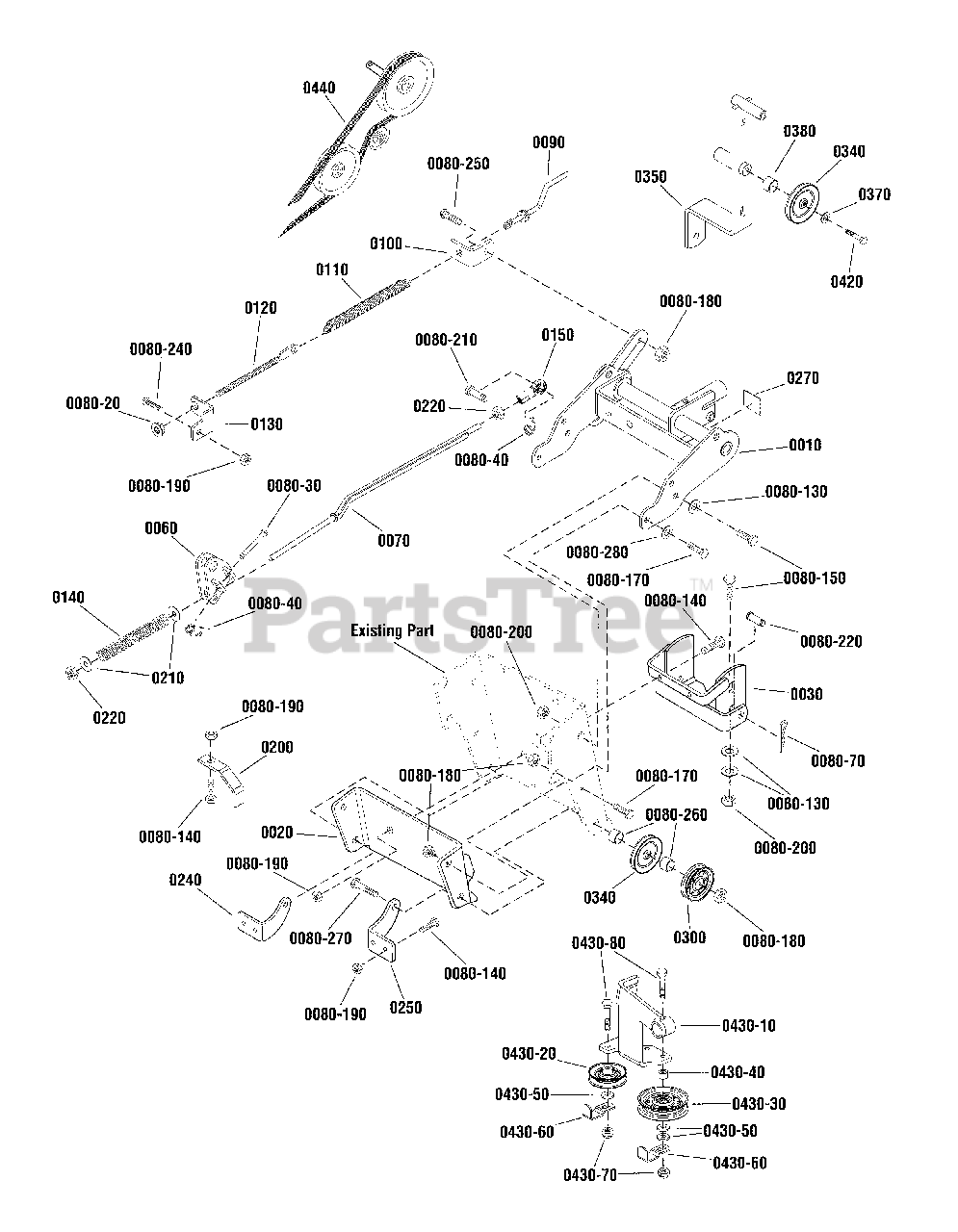

1687727-00 - Simplicity Upfit Kit, Tiller Hitch & Lift Group (1687727) Parts Diagram

Upfit Kit, Tiller

Hitch & Lift Group (1687727) Parts Diagram

  • Title

0010

Simplicity 1755746AYP

SLEEVE HITCH ASSEMBLY

$

$

Not available

0020

Simplicity 1722608ASM

HITCH SUPPORT ASSEMBLY

$84.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1707470ASM

BRACKET, Hitch Assembly

$205.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1756072AYP

LEVER, Lift

$626.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1756469YP

ROD, Lift

$843.99

$

Usually ships in 2-12 days

0

--

Simplicity 1756872

HARDWARE BAG

Note: (Not a serviceable part, order parts separately)

$

$

Not available

0080-20

Simplicity 1960515SM

NUT, Hex Flange, 1/2-13

$5.49

$

Usually ships in 2-12 days

0

0080-30

Simplicity 2105249SM

PIN, Round Head, 3/8 X 2 3/8

$16.99

$

Usually ships in 2-12 days

0

0080-40

Simplicity 703852

PIN, Retainer, 5/16 X 3/8

$4.49

$

In Stock, Qty 20+

0

0080-70

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

0080-130

Simplicity 703451

WASHER, Flat

$4.49

$

In Stock, Qty 20+

0

0080-140

Simplicity 703570

CAPSCREW, Hex Head, 5/16-18 X 1 1/4, GR5

$4.99

$

In Stock, Qty 7

0

0080-150

Simplicity 703571

CAPSCREW, Hex Head, 1/2-13 1 1/2, GR5

$4.49

$

In Stock, only 1 left!

0

0080-170

Simplicity 703969

CAPSCREW, Hex Head, 3/8-16 X 1 1/4,GR8

$4.99

$

Usually ships in 2-12 days

0

0080-180

Simplicity 7091299SM

NUT, NyLock, 3/8-16,GR5
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0080-190

Simplicity 703902

NUT, NyLock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0080-200

Simplicity 703567

NUT, Lock, 1/2-13

$4.49

$

In Stock, only 2 left!

0

0080-210

Simplicity 1756522YP

PIN, Yoke

$18.99

$

Usually ships in 2-12 days

0

0080-220

Simplicity 2155037SM

PIN, Round Head, 7/16 X 1 3/4

$12.99

$

In Stock, only 1 left!

0

0080-240

Simplicity 703410

BOLT, Serrated Flange, 5/16-18 X 1, GR5

$4.49

$

In Stock, only 2 left!

0

0080-250

Simplicity 703815

BOLT, Round Head Short Neck, 3/8-16 X 1, GR5

$4.49

$

In Stock, only 4 left!

0

0080-260

Simplicity 704057

SPACER, 25/64 X 3/4 X .80 LG

$60.99

$

Usually ships in 2-12 days

0

0080-270

Simplicity 703875

CAPSCREW, HexHead, 3/8-16 X 4, GR5

$4.99

$

Usually ships in 2-12 days

0

0080-280

Simplicity 703590

WASHER, Flat, 13/32

$3.99

$

In Stock, Qty 19

0

0090

Simplicity 1723840ASM

CRANK ASSEMBLY

$292.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1723841ASM

BRACKET, Crank

$75.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1723412SM

SPRING, Extension

$58.99

$

In Stock, only 1 left!

0

0120

Simplicity 1757741YP

ROD, Threaded, 1/2-13 x 7 1/2

$187.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1757734AYP

BRACKET, Spring

$176.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1757487YP

SPRING, Compression

$182.99

$

Usually ships in 2-12 days

0

0150

Simplicity 5103246YP

BALL JOINT, 3/4-16

$30.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1757733AYP

DEFLECTOR, Lift Rod

$136.99

$

Usually ships in 2-12 days

0

0210

Simplicity 703992

WASHER, Flat

$4.49

$

Usually ships in 2-12 days

0

0220

Simplicity 7092099YP

NUT, Hex, 3/4

$2.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1755917AYP

BRACKET, Suspension Lockout, RH

$95.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1755918AYP

BRACKET, Suspension Lockout, LH

$95.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1757810YP

DECAL, Caution

$13.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1724387SM

PULLEY, Backside Idler , 4"

$35.99

$

In Stock, Qty 20+

0

0340

Simplicity 2101096SM

V PULLEY, 4 1/2"

$59.99

$

In Stock, only 3 left!

0

0350

Simplicity 1756871AYP

BRACKET, Idler Support

$400.99

$

Usually ships in 2-12 days

0

0360

Simplicity 1758899AYP

BRACKET, Retention

$216.99

$

Usually ships in 2-12 days

0

0370

Simplicity 703878

WASHER, Flat

$3.99

$

In Stock, Qty 20+

0

0380

Simplicity 704057

SPACER, 25/64 X 3/4 X .80 LG

$60.99

$

Usually ships in 2-12 days

0

0420

Simplicity 1921971SM

CAPCSREW, Hex Head, 3/8-16 X 1 3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

0430-10

Simplicity 1756389AYP

IDLER ARM ASSEMBLY

$

$

Not available

0430-20

Simplicity 1721134SM

V Pulley, 3"

$30.99

$

In Stock, Qty 20+

0

0430-30

Simplicity 1724387SM

PULLEY, Backside Idler, 4"

$35.99

$

In Stock, Qty 20+

0

0430-40

Simplicity 2157081SM

SPACER, 3/8 X 3/4 X 1/2 LG

$8.99

$

In Stock, only 4 left!

0

0430-50

Simplicity 704128

WASHER, 3/8

$4.99

$

In Stock, Qty 9

0

0430-60

Simplicity 1708352SM

GUARD, Spring
(Superseded to 1708352ASM)

$35.99

$

Usually ships in 2-12 days

0

0430-70

Simplicity 703117

NUT, Nylock, 3/8-16 GR5

$3.49

$

In Stock, Qty 20+

0

0430-80

Simplicity 5025058X18YP

BOLT, 3/8-16 x 2 1/4 GR5

$7.49

$

In Stock, only 1 left!

0

0440

Simplicity 1756718YP

BELT, Tiller Drive

$164.99

$

Usually ships in 2-12 days

0
