1687629 - Murray Headlight Kit Headlight Kit - Front Mount Parts Diagram

Headlight Kit

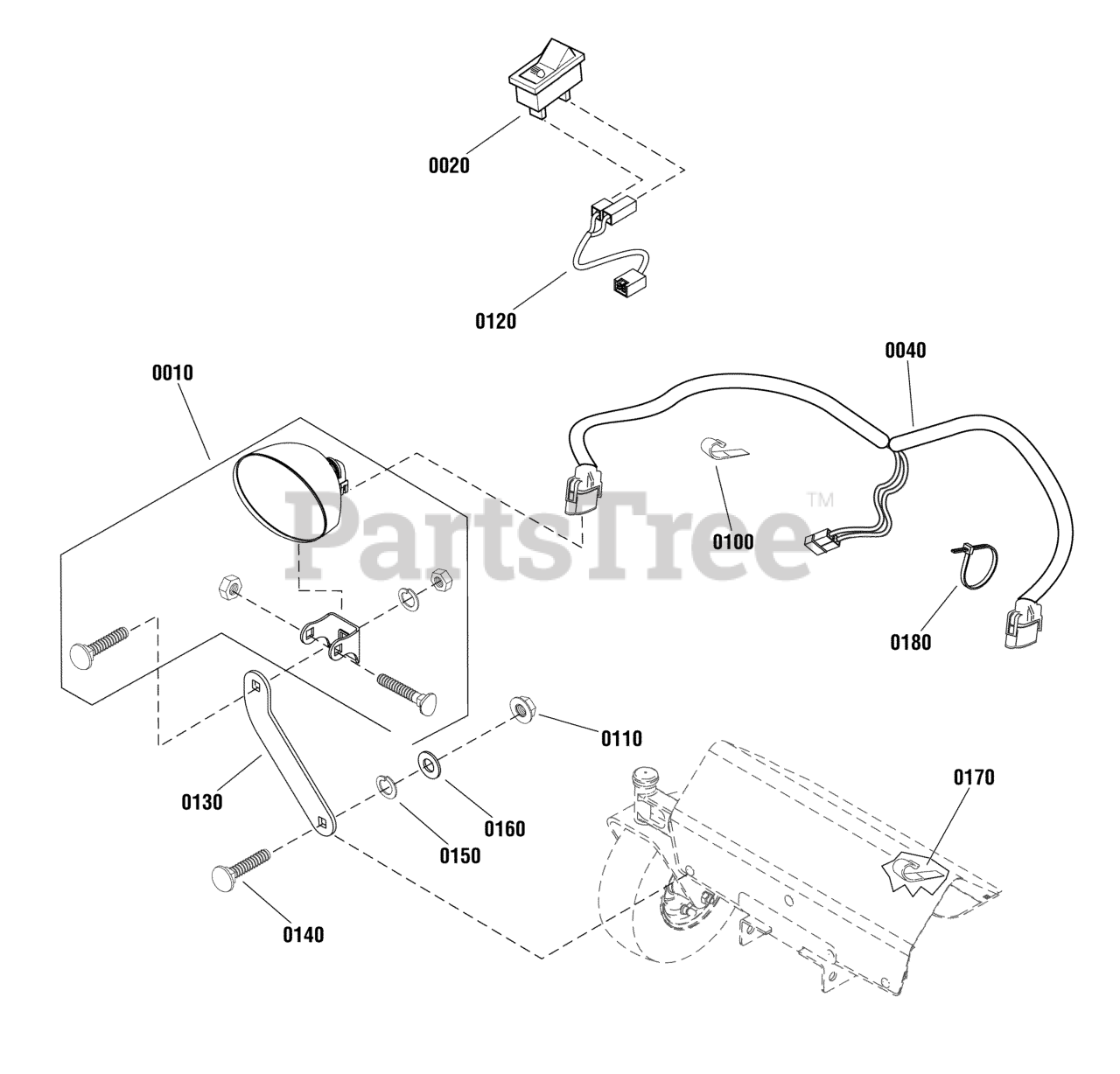

Headlight Kit - Front Mount Parts Diagram

  • Title
0010

Murray 1726801SM

HEADLIGHT ASSEMBLY

$

$

Not available

0020

Murray 1716951SM

SWITCH, Headlight

$21.99

$

In Stock, Qty 6

0

0040

Murray 7104566YP

LIGHT KIT, Harness

$93.99

$

Usually ships in 2-12 days

0

0100

Murray 7012652YP

CLIP, Wire 7/16

$3.99

$

Usually ships in 2-12 days

0

0110

Murray 7091601SM

HEX NUT, Flange 5/16
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0120

Murray 7104556YP

JUMPER KIT, Light

$29.99

$

Usually ships in 2-12 days

0

0130

Murray 7301202BZYP

BRACKET, Light

$5.99

$

Usually ships in 2-12 days

0

0140

Murray 2X100MA

BOLT, Carriage 5/16 - 18 x 1
(Superseded to 704217)

$

$

Not available

0150

Murray 7091301YP

LOCK WASHER, Split
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

0160

Murray 7090122YP

WASHER, Flat
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0170

Murray 7035638YP

CLIP, Open 3/8

$3.49

$

Usually ships in 2-12 days

0

0180

Murray 2825094SM

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0
