1687455 - Simplicity Cab, Snow Thrower Deluxe Snow Cab Group Parts Diagram

Cab, Snow Thrower Deluxe

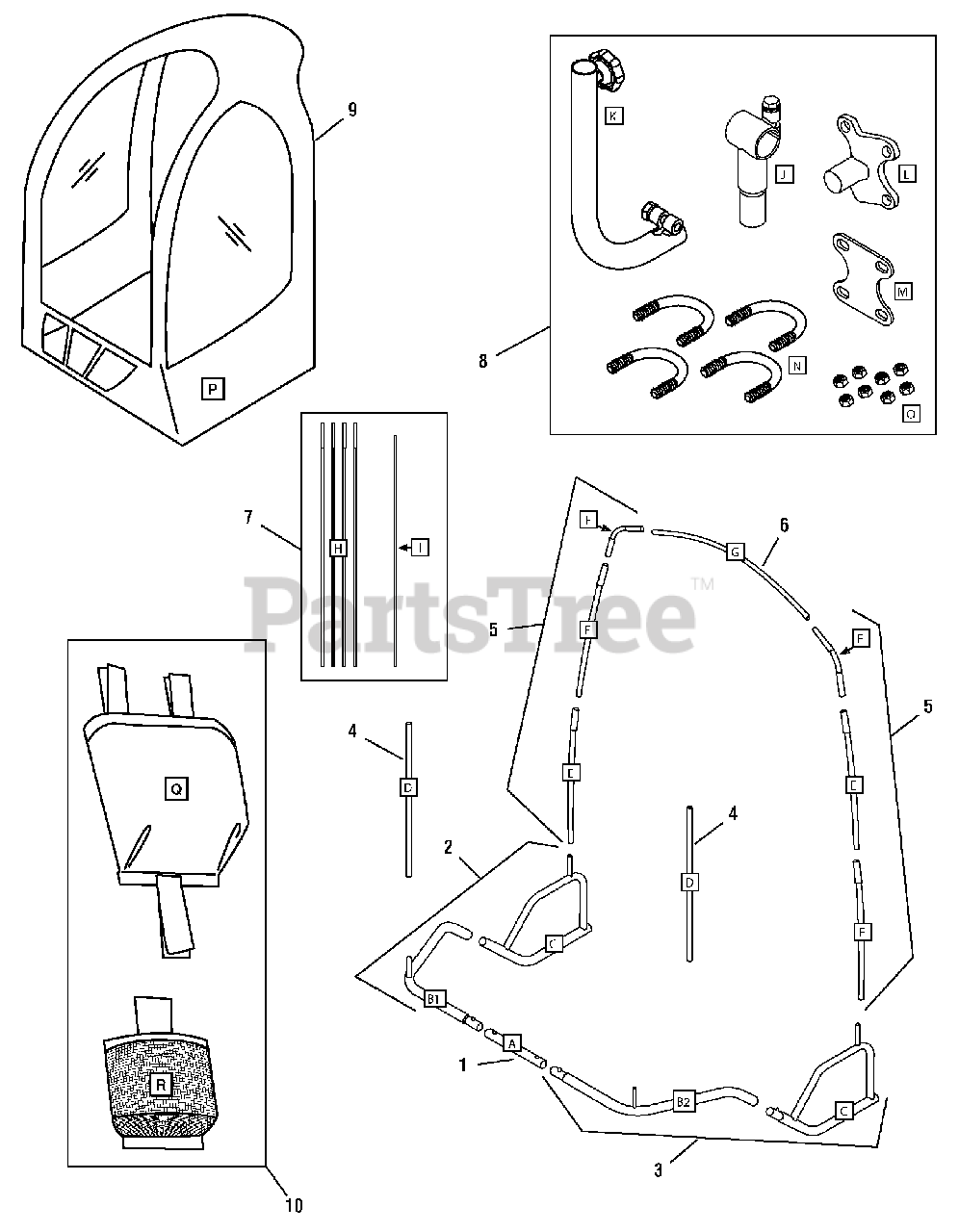

Snow Cab Group Parts Diagram

  • Title

1

Simplicity 1739603YP

BAR, Center Mounting

Note: (Inst. Sheet Ref. A)

$

$

Not available

2

Simplicity 1739604YP

BAR, Side Mounting, R.H.

Note: (Inst. Sheet Ref. B1 & C)

$

$

Not available

3

Simplicity 1739605YP

BAR, Side Mounting, L.H.

Note: (Inst. Sheet Ref. B2 & C)

$

$

Not available

4

Simplicity 1739606YP

POLE, Front

Note: (Inst. Sheet Ref. D)

$

$

Not available

5

Simplicity 1739607YP

POLE, Back Hoop Side & Corner, R.H. & L.H.

Note: (Inst. Sheet Ref. E & F)

$

$

Not available

6

Simplicity 1739608YP

POLE, Back Hoop, Top

Note: (Inst. Sheet Ref. G)

$

$

Not available

7

Simplicity 1739609YP

POLE, Front Hoop Side & Top

Note: (Inst. Sheet Ref. H & I)

$

$

Not available

8

Simplicity 1739610YP

POST & MOUNTING HARDWARE, Upper & Lower

Note: (Inst. Sheet Ref. J, K, L, M, N & O)

$

$

Not available

9

Simplicity 1739611YP

CAB, Fabric Shell

Note: (Inst. Sheet Ref. P)

$

$

Not available

10

Simplicity 1739612YP

POCKET, Removable, Sand & Salt Opener

Note: (Inst. Sheet Ref. Q & R)

$

$

Not available

--

Simplicity 1687455YP

Snow Cab, Soft Side

$

$

Not available
