1687286 - Snapper Power Steering Conversion Kit Power Steering Conversion Kit Parts Diagram

Power Steering Conversion Kit

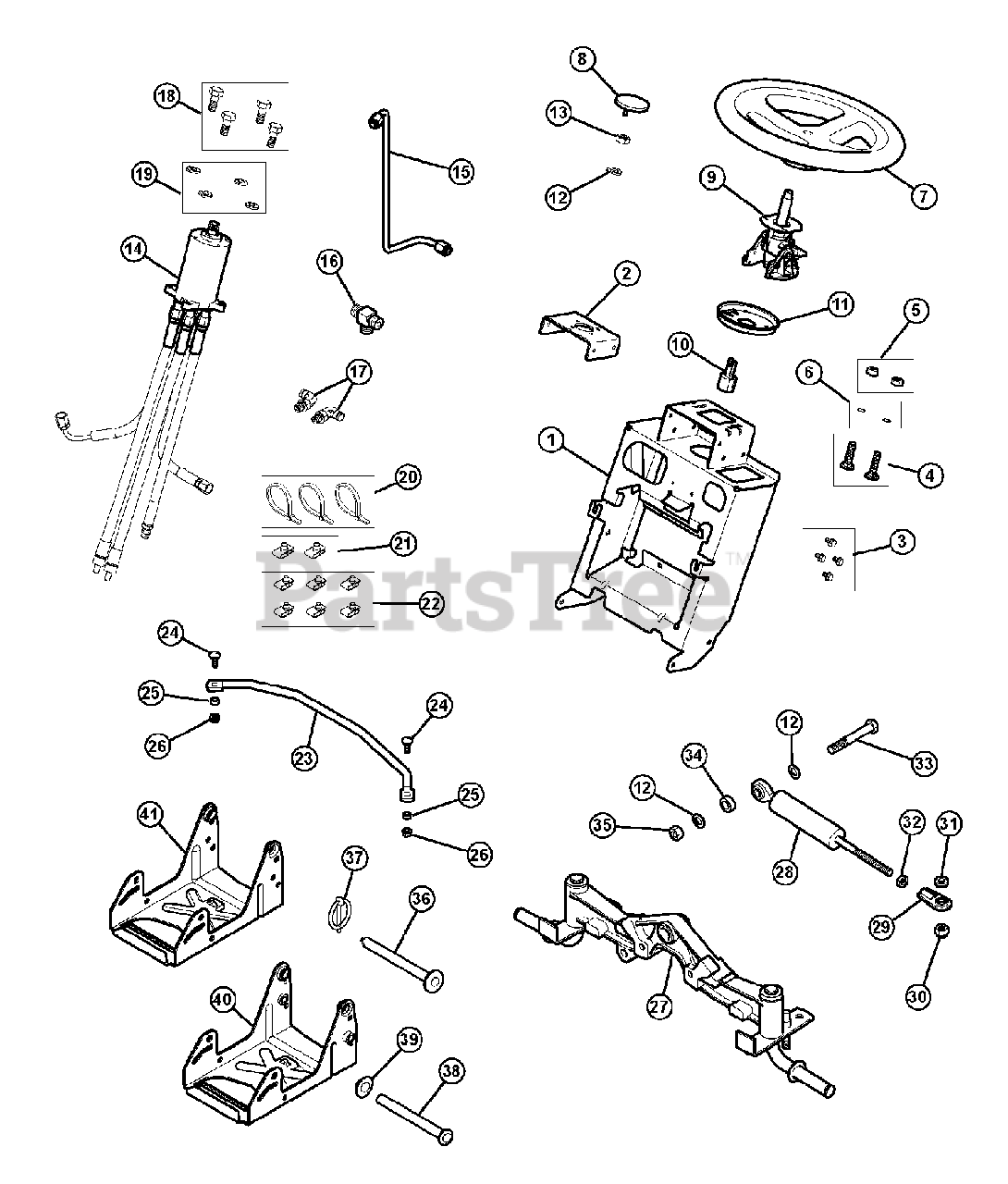

Power Steering Conversion Kit Parts Diagram

  • Title

--

Snapper 1687286

KIT, Power Steering Conversion (Prestige)
(Superseded to 1687286SM)

$2450.99

$

Usually ships in 2-12 days

0

--

Snapper 1687302

KIT, Power Steering Conversion (54" Prestige)
(Superseded to 1687302SM)

$2450.99

$

Usually ships in 2-12 days

0

1

Snapper 1733139A

TOWER, Steering
(Superseded to 1733139ASM)

$233.99

$

Usually ships in 2-12 days

0

2

Snapper 1733044A

PLATE, Support
(Superseded to 1733044ASM)

$23.99

$

Usually ships in 2-12 days

0

3

Snapper 1924856

SCREW,Taptite 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

4

Snapper 1960655

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

5

Snapper 1960636

NUT, KEPS, 5/16-18
(Superseded to 1960636SM)

$4.99

$

In Stock, only 1 left!

0

6

Snapper 1933988

NUT, Push, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 1733363

STEERING WHEEL
(Superseded to 1733363SM)

$100.99

$

In Stock, only 1 left!

0

8

Snapper 1725024

CAP, Steering Wheel
(Superseded to 1725024SM)

$7.49

$

In Stock, only 1 left!

0

9

Snapper 1733790

TILT STEERING UNIT
(Superseded to 1687680YP)

$

$

Not available

10

Snapper 1725294

ADAPTER, Tilt
(Superseded to 1725294SM)

$15.99

$

Usually ships in 2-12 days

0

11

Snapper 1724685A

PLATE, Mounting
(Superseded to 1724685ASM)

$19.99

$

Usually ships in 2-12 days

0

12

Snapper 1924366

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

13

Snapper 1960576

NUT, HEX, 5/8-18
(Superseded to 1960576SM)

$5.99

$

In Stock, Qty 8

0

14

Snapper 1733506

POWER STEERING Assembly, 5-Port
(Superseded to 1733506SM)

$

$

Not available

15

Snapper 1733727

TUBE, Hydraulic
(Superseded to 1733727SM)

$74.99

$

Usually ships in 2-12 days

0

16

Snapper 1733211

TEE FITTING
(Superseded to 1733211SM)

$43.99

$

Usually ships in 2-12 days

0

17

Snapper 1733230

FITTING, Perma-Push
(Superseded to 1733230SM)

$103.99

$

Usually ships in 2-12 days

0

18

Snapper 2860444

SCREW, HEX, M6 x 16mm
(Superseded to 2860444SM)

$2.99

$

Usually ships in 2-12 days

0

19

Snapper 1916964

WASHER, LOCK, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

20

Snapper 1701011

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

21

Snapper 1935225

NUT, SPEED, 5/16-18

$

$

Currently unavailable

22

Snapper 1960368

NUT, SPEED, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 1732759A

TIE ROD
(Superseded to 1732759ASM)

$

$

Not available

24

Snapper 1931350

BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

25

Snapper 1611705

SPACER
(Superseded to 1611705SM)

$4.49

$

In Stock, Qty 17

0

26

Snapper 1930645

NUT, Flange, Lock 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

27

Snapper 1732937A

FRONT AXLE Assembly
(Superseded to 1732937ASM)

$308.99

$

Usually ships in 2-12 days

0

28

Snapper 1732439

STEERING CYLINDER
(Superseded to 1737057YP)

$512.99

$

Usually ships in 2-12 days

0

29

Snapper 1702779

BALL JOINT
(Superseded to 1702779SM)

$28.99

$

In Stock, Qty 12

0

30

Snapper 1960355

NUT, Hex, Lock ESNA, 1/2-13
(Superseded to 703567)

$4.49

$

In Stock, only 2 left!

0

31

Snapper 1719725

SPACER
(Superseded to 1719725SM)

$9.99

$

Usually ships in 2-12 days

0

32

Snapper 1919262

NUT, Hex, Jam, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

33

Snapper 1960713

SCREW, Hex, M16-110mm
(Superseded to 1960713SM)

$11.99

$

Usually ships in 2-12 days

0

34

Snapper 1733912A

SPACER
(Superseded to 1733912ASM)

$13.99

$

Usually ships in 2-12 days

0

35

Snapper 1960714

NUT, Lock, 1/2-20
(Superseded to 1960714SM)

$5.99

$

Usually ships in 2-12 days

0

36

Snapper 1734011

PIN, Hitch
(Superseded to 1734011SM)

$67.99

$

In Stock, only 3 left!

0

37

Snapper 1709189

PIN, Klik, 3/16 x 1-5/8
(Superseded to 1709189SM)

$6.99

$

Usually ships in 2-12 days

0

38

Snapper 1713578

ROD, 1/2 x 7-5/8
(Superseded to 1713578SM)

$15.99

$

In Stock, only 1 left!

0

39

Snapper 1960519

NUT, PUSH, 1/2
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

40

Snapper 1733229A

HITCH, 54 Inch Mower
(Superseded to 1733229ASM)

$222.99

$

Usually ships in 2-12 days

0

41

Snapper 1733717A

HITCH, 44/50 Inch Mower
(Superseded to 1738040AYP)

$289.99

$

Usually ships in 2-12 days

0
