1687284 - Snapper 40" Roller Bar Mower Kit 40" Roller Bar Mower Kit Parts Diagram

40" Roller Bar Mower Kit

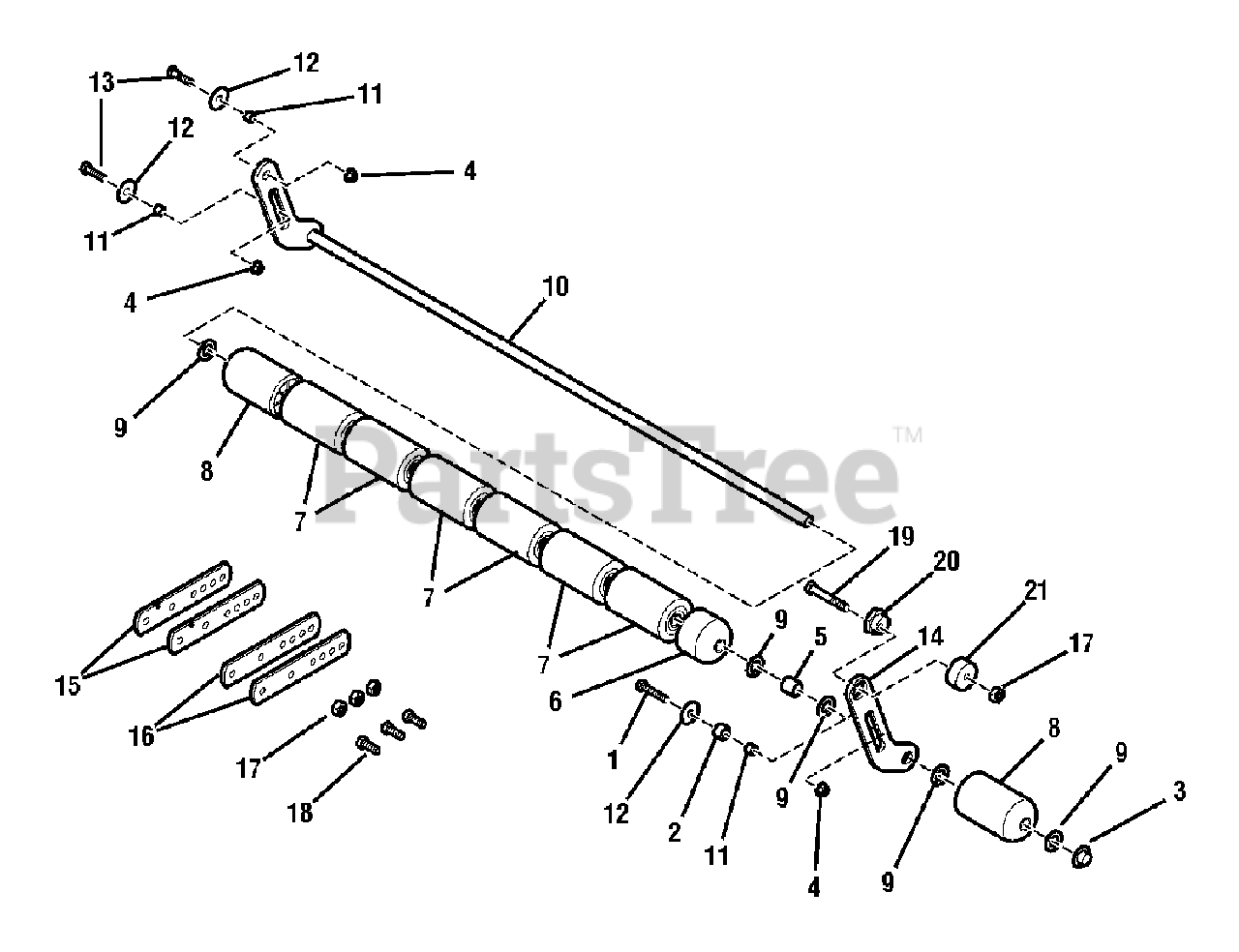

40" Roller Bar Mower Kit Parts Diagram

  • Title
--

Snapper 1687284

KIT, 40" Roller Bar Mower
(Superseded to 1687284SM)

$262.99

$

Usually ships in 2-12 days

0

1

Snapper 1922127

Capscrew, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

2

Snapper 2157081

Spacer
(Superseded to 2157081SM)

$8.99

$

In Stock, only 4 left!

0

3

Snapper 1960520

Nut, push, 5/8, capped
(Superseded to 1960520SM)

$3.99

$

In Stock, Qty 20+

0

4

Snapper 2860643

Nut, lock, flanged, 5/16-18
(Superseded to 2860643SM)

$3.49

$

In Stock, only 4 left!

0

5

Snapper 1602946

Spacer
(Superseded to 1602946SM)

$13.99

$

In Stock, Qty 20+

0

6

Snapper 1717675

Roller, round end, 2.05 long
(Superseded to 1717675SM)

$6.99

$

In Stock, Qty 20+

0

7

Snapper 1668513

Roller, flat end, 4.1 long
(Superseded to 1668513SM)

$10.99

$

In Stock, Qty 20+

0

8

Snapper 1722036

Roller, round end, 4.1 long
(Superseded to 1722036SM)

$7.99

$

In Stock, Qty 20+

0

9

Snapper 1924366

Washer, flat, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 1733081

Roller Shaft Assembly

$

$

Currently unavailable

11

Snapper 1960236

Spacer
(Superseded to 1960236SM)

$6.49

$

In Stock, only 2 left!

0

12

Snapper 1960044

Washer, Flat 5/16
(Superseded to 1960044SM)

$4.49

$

In Stock, only 3 left!

0

13

Snapper 1921977

Capscrew, 5/16-18 x 1-1/4
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

14

Snapper 1734987A

Bar, roller
(Superseded to 1734987ASM)

$14.99

$

Usually ships in 2-12 days

0

15

Snapper 1735093

Bar, Extension (notched)

$

$

Currently unavailable

16

Snapper 1735092

Bar, Extension

$

$

Currently unavailable

17

Snapper 1960687

Nut, Lock, Flanged, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 1923490

Capscrew, 3/8-16 x 1
(Superseded to 1923490SM)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 1921972

Capscrew, 3/8-16 x 2
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

20

Snapper 1704082

Adjusting Nut
(Superseded to 1704082SM)

$5.49

$

In Stock, Qty 16

0

21

Snapper 1718762

Spacer
(Superseded to 1718762SM)

$17.99

$

Usually ships in 2-12 days

0
