16870 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

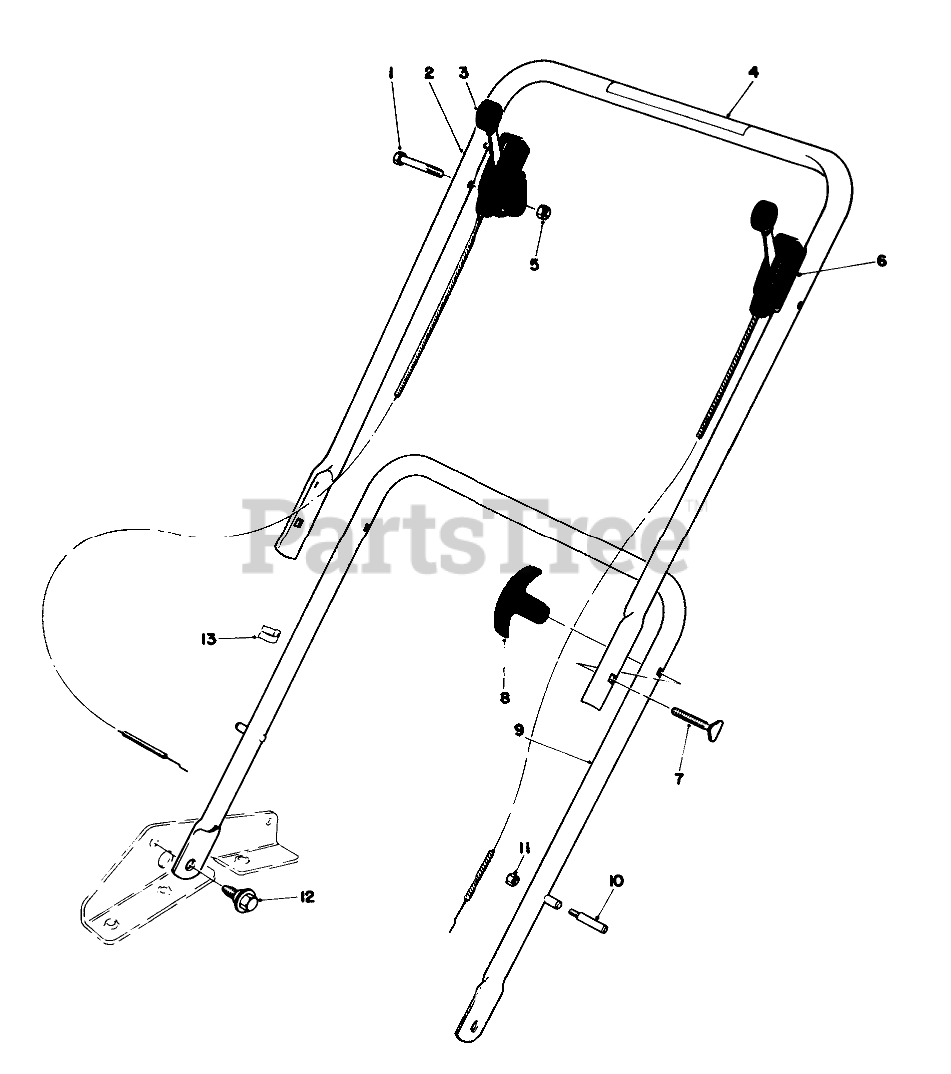

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 39-5641

Upper Handle

$

$

Not available

3

Toro 33-2535

Throttle Control
(Superseded to 46-6000)

$53.99

$

Usually ships in 3-6 days

0

4

Toro 29-6290

Decal

$

$

Not available

5

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

6

Toro 33-2521

Traction Control
(Superseded to 46-6030)

$

$

Not available

7

Toro 6-6330

HANDLE SCREW

$

$

Not available

8

Toro 233-41

KNOB

$

$

Not available

9

Toro 38-1260

LOWER HANDLE ASM SP

$244.99

$

Usually ships in 3-6 days

0

10

Toro 17-9380

HANDLE PIN

Note: Service Replacement Parts

$

$

Not available

11

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Service Replacement Parts

$1.49

$

Usually ships in 3-6 days

0

12

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

13

Toro 218-466

CLIP

$

$

Not available
