16870 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY-MODEL 16860 Parts Diagram

Walk-Behind Mower

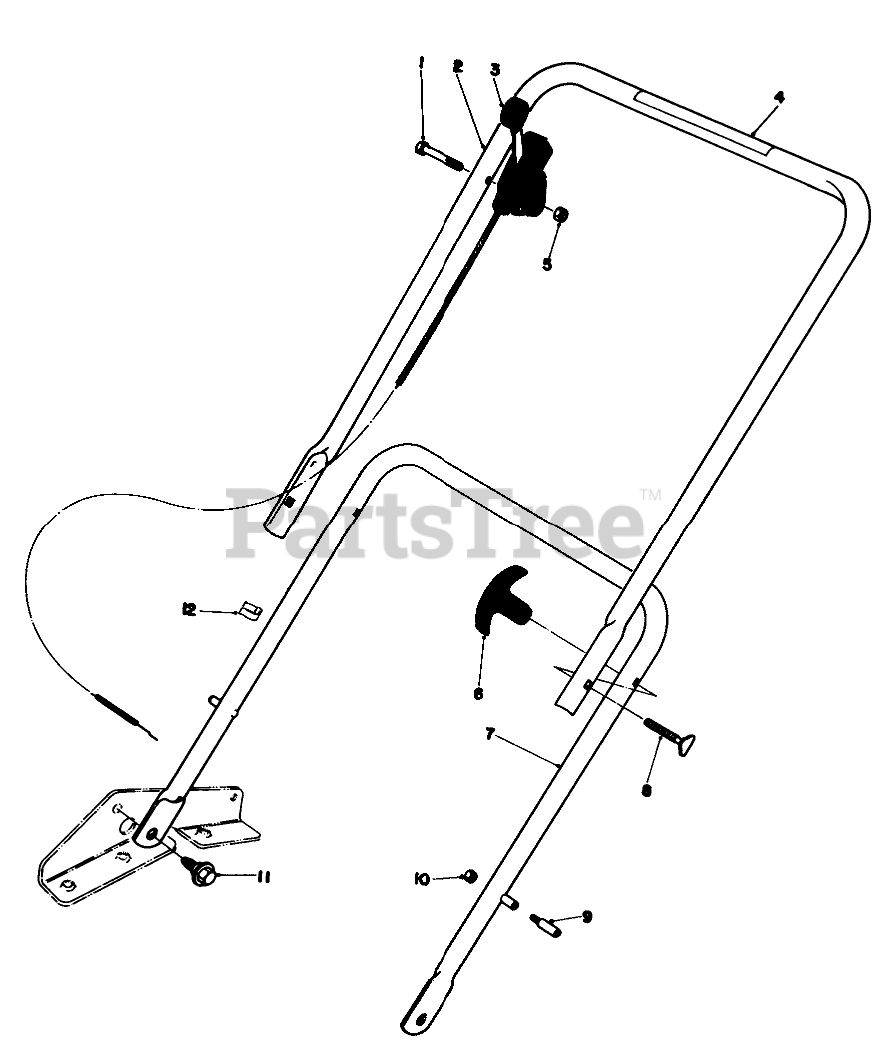

HANDLE ASSEMBLY-MODEL 16860 Parts Diagram

  • Title

1

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 39-5640

Upper Handle

$

$

Not available

3

Toro 33-2535

Throttle Control
(Superseded to 46-6000)

$50.99

$

Usually ships in 3-6 days

0

4

Toro 29-6290

Decal

$

$

Not available

5

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

6

Toro 233-41

KNOB

$

$

Not available

7

Toro 38-1260

LOWER HANDLE ASM SP

$230.99

$

Usually ships in 3-6 days

0

8

Toro 6-6330

HANDLE SCREW

$

$

Not available

9

Toro 17-9380

HANDLE PIN

Note: Service Replacement Parts

$

$

Not available

10

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Service Replacement Parts

$1.49

$

Usually ships in 3-6 days

0

11

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

12

Toro 218-466

CLIP

$

$

Not available
