16870 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) GEAR CASE ASSEMBLY-MODEL 16870 Parts Diagram

Walk-Behind Mower

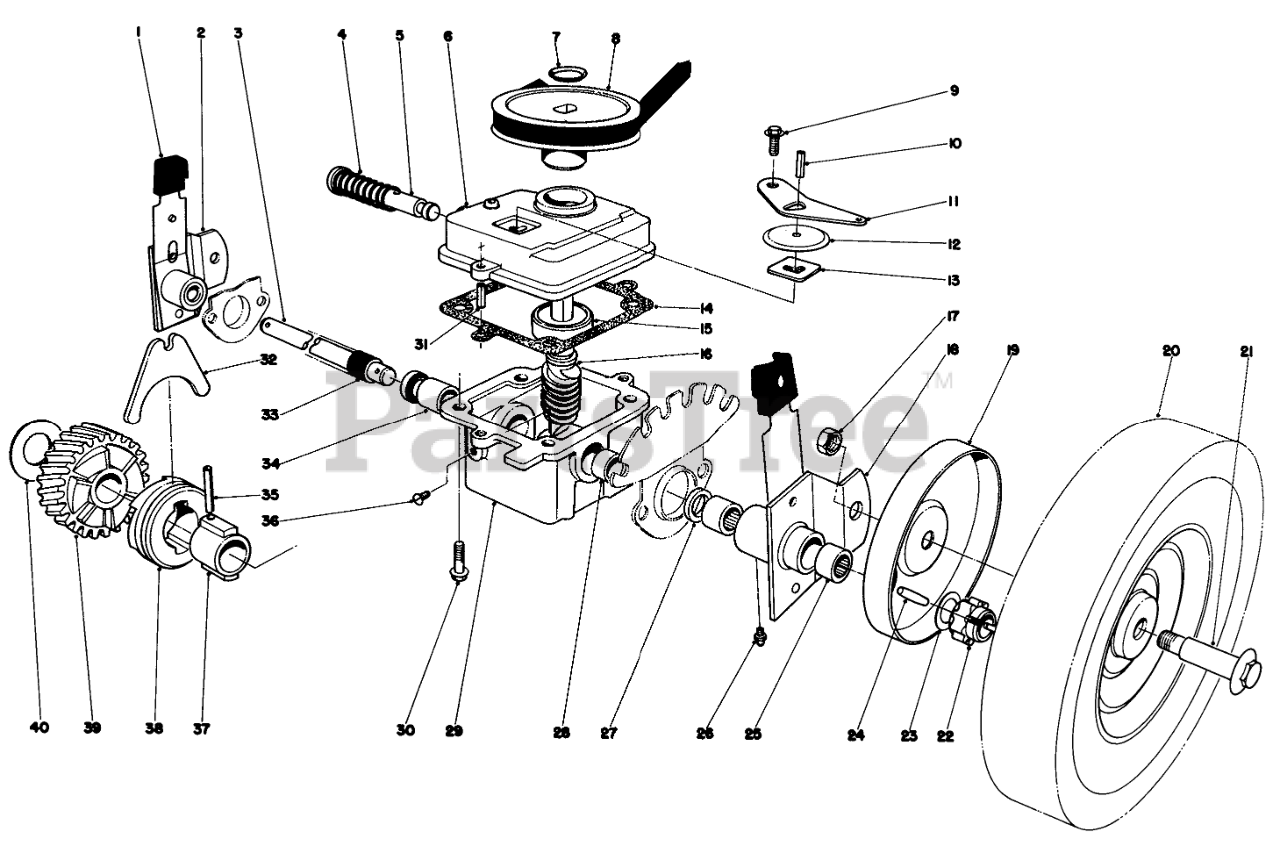

GEAR CASE ASSEMBLY-MODEL 16870 Parts Diagram

  • Title

1

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

2

Toro 37-9690

Pivot Arm R.H. (Incl. Ref. #25 & 27)

$

$

Not available

3

Toro 36-6301

Drive Shaft

$

$

Not available

4

Toro 3-0731

SPRING

$11.99

$

Usually ships in 3-6 days

0

5

Toro 5-3248

Shift Rod
(Superseded to 46-8240)

$46.99

$

Usually ships in 3-6 days

0

6

Toro 39-1100

Case-Upper

$

$

Not available

7

Toro 3290-346

PUSH-ON 93-3236

$9.49

$

Usually ships in 3-6 days

0

8

Toro 18-9760

PULLEY

$74.99

$

Usually ships in 3-6 days

0

9

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

10

Toro 32121-23

PIN-ROLL

$

$

Not available

11

Toro 5-3252

SHIFTER ARM

$38.99

$

In Stock, only 1 left!

0

12

Toro 3-2615

TRANS DUST COVER

$

$

Not available

13

Toro 3-0681

LATCH PLATE

$

$

Not available

14

Toro 36-1000

GASKET

$10.99

$

Usually ships in 3-6 days

0

15

Toro 251-284

Bearing
(Superseded to 47-7250)

$72.99

$

Usually ships in 3-6 days

0

16

Shaft-Worm

$

$

Not available

17

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

18

Toro 37-9680

Pivot Arm L.H. (Incl. Ref. #25 & 27)

$

$

Not available

19

Toro 23-0280

WHEEL COVER

$

$

Not available

20

Toro 12-2610

Wheel & Tire
(Superseded to 11-1279)

$

$

Not available

21

Toro 3-2652

Bolt

$

$

Not available

22

Toro 18-9690

Pinion
(Superseded to 99-2532)

$15.99

$

Usually ships in 3-6 days

0

23

Toro 18-9810

WASHER-THRUST

$9.99

$

In Stock, only 2 left!

0

24

Toro 3284-3

PIN-GROOVED

$2.99

$

In Stock, Qty 12

0

25

Toro 252-96

Needle Baring
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 20+

0

26

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

27

Toro 253-140

Seal
(Superseded to 47-6730)

$13.99

$

In Stock, Qty 20+

0

28

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

29

Toro 33-2060

Case-Lower
(Superseded to 8-0479)

$258.99

$

Usually ships in 3-6 days

0

30

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

31

Toro 32121-1

3/16 X 1/2 ROLL PIN

$4.49

$

In Stock, Qty 5

0

32

Toro 5-3247

SHIFTER FORK

$

$

Not available

33

Toro 24-7921

Cover-Drive Shaft

$

$

Not available

34

Toro 256-263

Bushing
(Superseded to 47-2900)

$6.49

$

In Stock, Qty 20+

0

35

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

36

Toro 28-1550

NYLON SCREW

$

$

Not available

37

Toro 3-0721

SLEEVE

$

$

Not available

38

Toro 19-5660

CLUTCH JAW

$46.99

$

Usually ships in 3-6 days

0

39

Helical Gear

$

$

Not available

40

Toro 3-0724

THRUST WASHER

$

$

Not available

Toro 8-5679

Worm Shaft & Gear Assembly (Incl. Ref. #16 & 39)

Note: Not illustrated

$165.99

$

In Stock, only 4 left!

0

Toro 8-7809

Gear Case Assembly Complete

Note: Not illustrated

$

$

Currently unavailable
