16860 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) ENGINE ASSEMBLY-MODEL 16870 Parts Diagram

Walk-Behind Mower

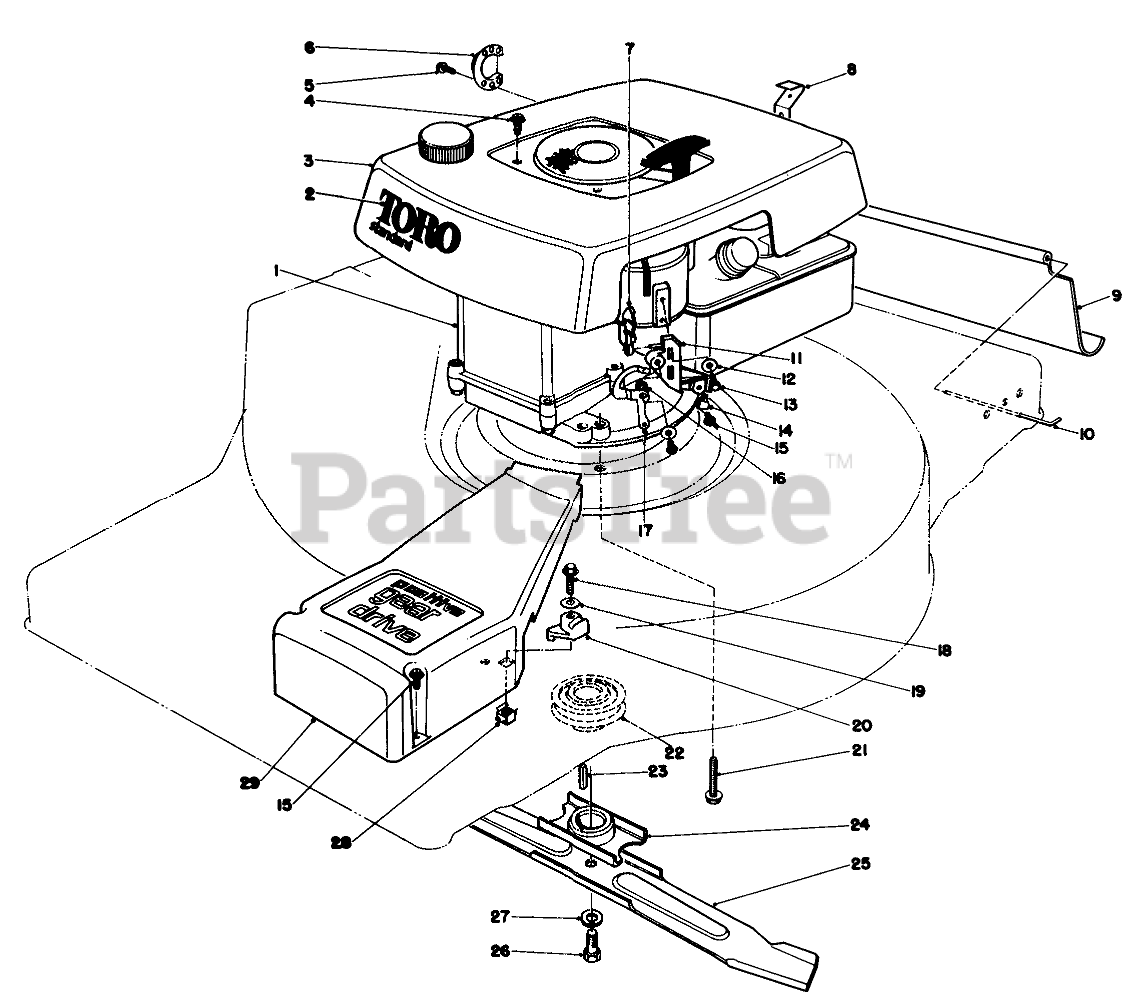

ENGINE ASSEMBLY-MODEL 16870 Parts Diagram

  • Title

1

Toro 221-647

Engine

$

$

Currently unavailable

2

Toro 39-9050

Decal Shroud
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

3

Toro 28-6772

SHROUD

$

$

Not available

4

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

5

Toro 2210-173

SCREW W/ENGINE

$

$

Not available

6

Toro 2210-184

Deflector

$

$

Not available

7

Toro 25-0350

INTERLOCK LEVER

$

$

Not available

8

Toro 38-7580

Bracket Control

$

$

Not available

9

Toro 36-6330

SAF SHIELD REAR

$

$

Not available

10

Toro 33-3204

SHIELD ROD

$

$

Not available

11

Toro 27-9280

CABLE & PIVOT BLOCK

$

$

Not available

12

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 32144-19

SCREW-SHWH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 2412-63

CLAMP

$

$

Not available

15

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 25-0520

BUSHING

$32.99

$

Usually ships in 3-6 days

0

17

Toro 25-8150

CAM INTERLOCK

$

$

Not available

18

Toro 32144-22

SCREW

$0.99

$

Usually ships in 3-6 days

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 38-6400

CABLE BOSS

$

$

Not available

21

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

22

Toro 21-5580

DRIVER PULLEY

$

$

Not available

23

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

24

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$

$

Not available

25

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$41.99

$

In Stock, only 2 left!

0

26

Toro 3-5246

SPECIAL SCREW

$

$

Not available

27

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

28

Toro 32115-2

SPEED NUT

$

$

Not available

29

Toro 39-5581

Belt Cover

$

$

Not available
