16860 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) MOWER HOUSING ASSEMBLY-MODEL 16860 Parts Diagram

Walk-Behind Mower

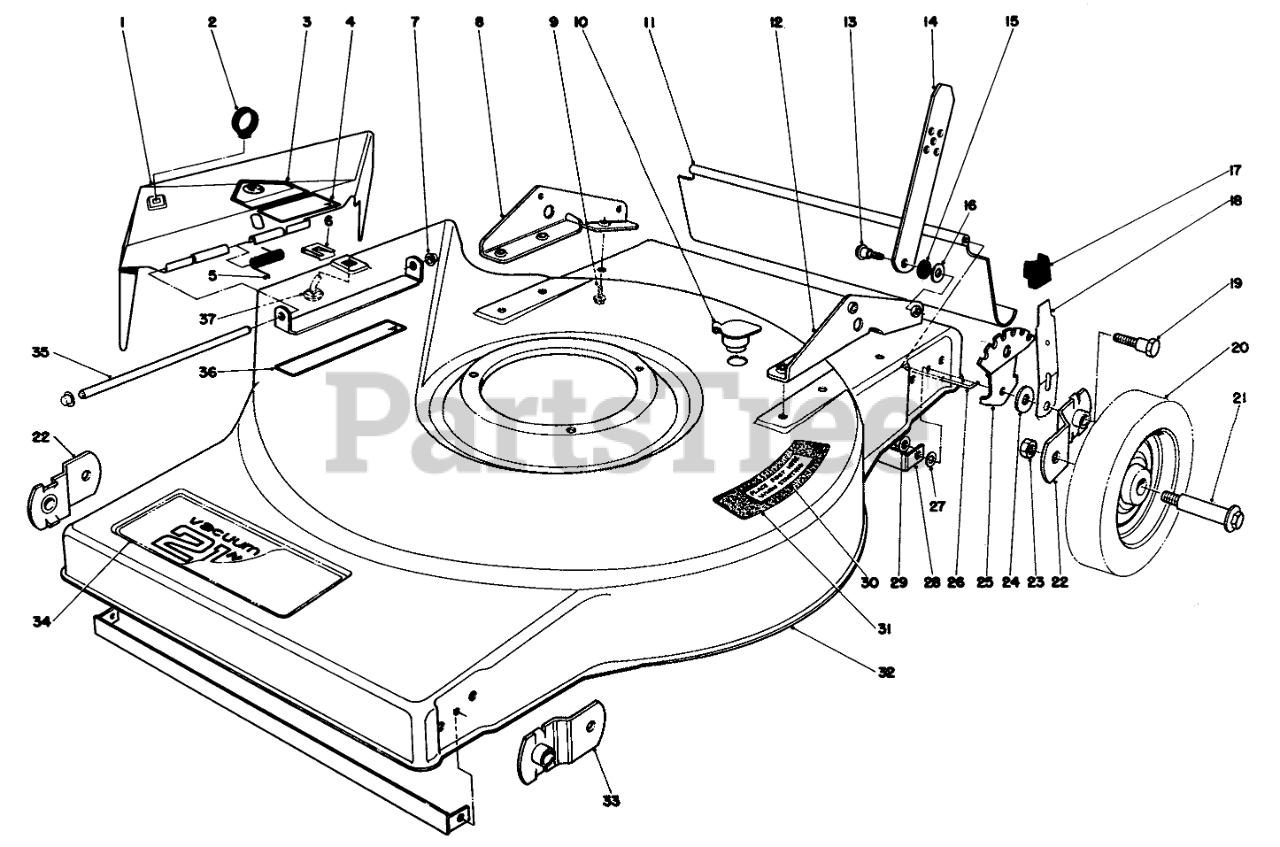

MOWER HOUSING ASSEMBLY-MODEL 16860 Parts Diagram

  • Title
1

Toro 36-6390

DefIector
(Superseded to 11-8579)

$122.99

$

Usually ships in 3-6 days

0

2

Toro 28-1430

LIFT LOOP

$

$

Not available

3

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

4

Toro 39-9130

DECAL DEFLECTOR

$

$

Not available

5

Toro 28-1560

TORSION SPRING

$

$

Not available

6

Toro 28-3250

BAG CHUTE CLIP PIN

$

$

Not available

7

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

8

Toro 36-6320

Bracket Handle R.H.

$

$

Not available

9

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

10

Toro 6-4500

WASHOUT PLUG

$

$

Not available

11

Toro 36-6330

SAF SHIELD REAR

$

$

Not available

12

Toro 36-6310

Bracket-L.H.

$

$

Not available

13

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

14

Toro 38-5090

Handle Latch
(Superseded to 27-7080)

$

$

Not available

15

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

18

Toro 25-8000

SPRING ARM ASM

$

$

Not available

19

Toro 36-6670

PIVOT SCREW

$

$

Not available

20

Toro 12-2620

Wheel Assembly
(Superseded to 99-5256)

$

$

Not available

21

$

$

Not available

22

Toro 24-7710

PIVOT ARM ASM A

$147.99

$

Usually ships in 3-6 days

0

23

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

24

Toro 33-0390

PIVOT WASHER

$3.99

$

In Stock, only 2 left!

0

25

Toro 36-6780

Quadrant

$

$

Not available

26

Toro 33-3204

SHIELD ROD

$

$

Not available

27

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 20+

0

28

Toro 36-6830

DECK SUPPORT

$

$

Not available

29

$3.49

$

Usually ships in 3-6 days

0

30

Toro 36-2820

Decal Step Pad

$

$

Not available

31

Toro 37-0030

PAD STEP

$

$

Not available

32

Toro 8-7769

Housing

$

$

Not available

33

Toro 23-9120

PIVOT ARM ASM B

$

$

Not available

34

Toro 39-9110

Decal-Deck

$

$

Not available

35

Toro 36-6350

DEFLECTOR PIVOT ROD

$

$

Not available

36

Toro 39-9120

DECAL CAUTION
(Superseded to 104-8589)

$7.49

$

Usually ships in 3-6 days

0

37

Toro 28-3260

BAG CHUTE PIN

$

$

Not available

Toro 8-6969

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
