1685337 - Simplicity Spring Assisted Lift Kit Spring Assisted Lift Kit (36" & 42" Snowthrowers) Parts Diagram

Spring Assisted Lift Kit

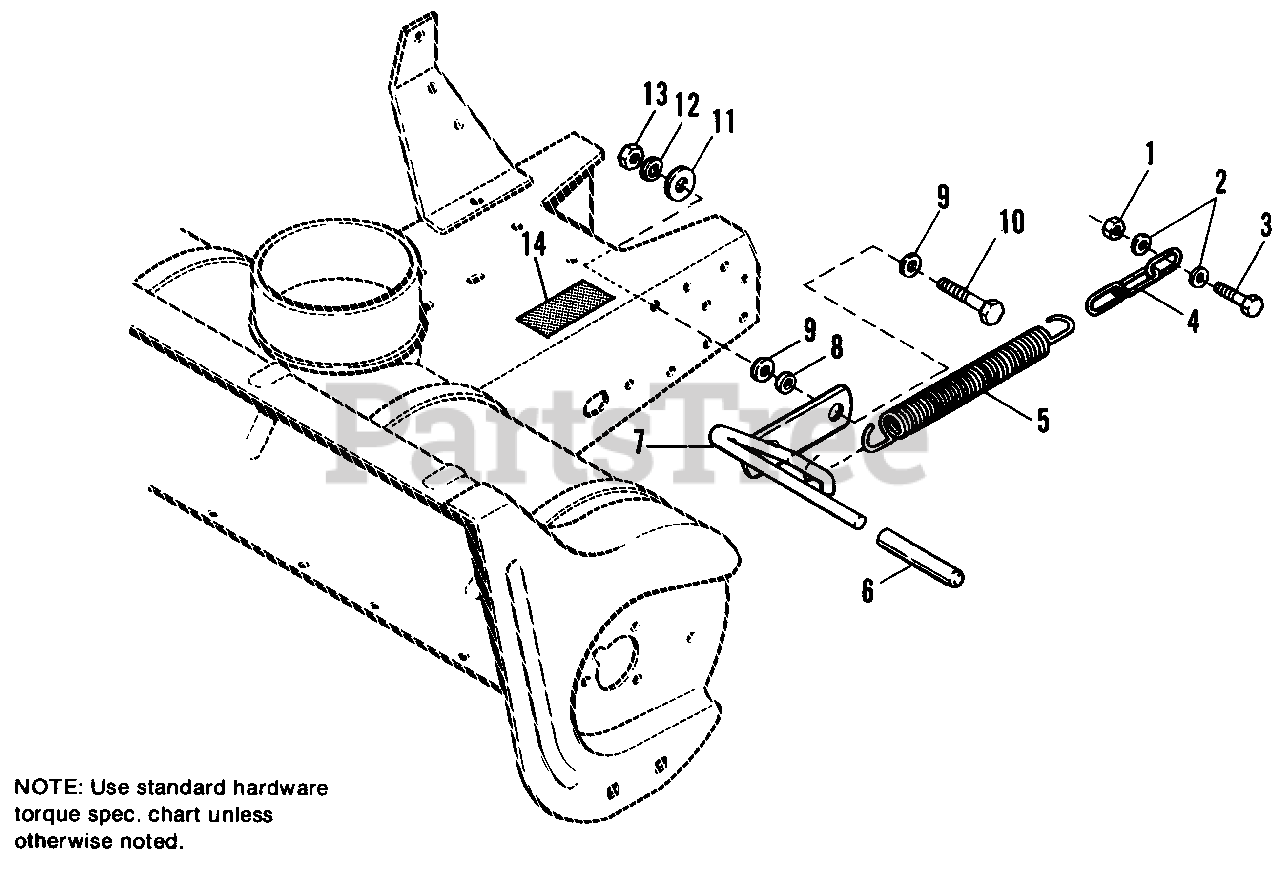

Spring Assisted Lift Kit (36" & 42" Snowthrowers) Parts Diagram

  • Title

1

Simplicity 1923362SM

NUT, Hex, Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0

2

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 1921977SM

CAPSCREW, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

4

Simplicity 1656835A

CHAIN, 3-Links

$

$

Not available

5

Simplicity 1675232SM

SPRING

$20.99

$

Usually ships in 2-12 days

0

6

Simplicity 2176934SM

GRIP

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 1701917ASM

LEVER ASSY., Spring

$31.99

$

Usually ships in 2-12 days

0

8

Simplicity 2108717SM

SPACER

$17.99

$

In Stock, only 1 left!

0

9

Simplicity 1924356SM

WASHER
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

10

Simplicity 1921969SM

CAPSCREW, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

11

Simplicity 1922755SM

WASHER, 13/32 x 1
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

12

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

13

Simplicity 1916950SM

NUT, Hex, Fu11, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1716536SM

DECAL, Caution

$18.99

$

Usually ships in 2-12 days

0
