16830 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) MOWER HOUSING (MODEL NO. 16830) Parts Diagram

Walk-Behind Mower

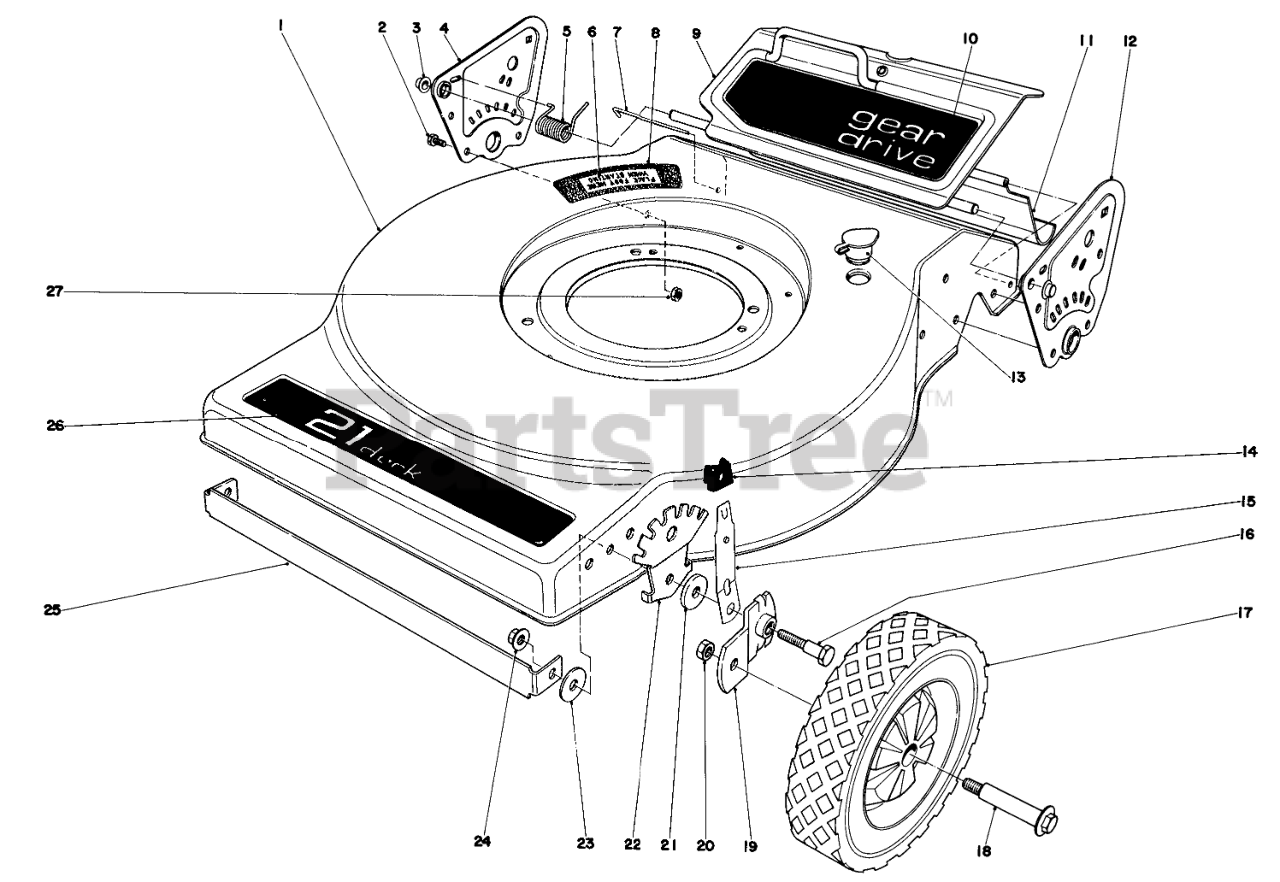

MOWER HOUSING (MODEL NO. 16830) Parts Diagram

  • Title

1

Toro 38-0490

Housing

$

$

Not available

2

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

3

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

4

Toro 37-1450

Side Plate R.H

$

$

Not available

5

Toro 37-9420

TORSION SPRING

$

$

Not available

6

Toro 36-2820

Decal Step Pad

$

$

Not available

7

Toro 33-3204

SHIELD ROD

$

$

Not available

8

Toro 37-0030

PAD STEP

$

$

Not available

9

Toro 38-0700

Rear Door

$

$

Not available

10

Toro 38-1520

Decal Door

$

$

Not available

11

Toro 36-6330

SAF SHIELD REAR

$

$

Not available

12

Toro 37-1440

Side Plate L.H.

$

$

Not available

13

Toro 6-4500

WASHOUT PLUG

$

$

Not available

14

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

15

Toro 25-8000

SPRING ARM ASM

$

$

Not available

16

Toro 36-6670

PIVOT SCREW

$

$

Not available

17

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

18

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

19

Toro 24-7710

PIVOT ARM ASM A

$147.99

$

Usually ships in 3-6 days

0

Toro 23-9120

PIVOT ARM ASM B

Note: Not illustrated

$

$

Not available

20

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

21

Toro 33-0390

PIVOT WASHER

$3.99

$

In Stock, only 2 left!

0

22

Toro 36-6780

Quadrant

$

$

Not available

23

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 20+

0

24

Toro 32128-30

NUT

$3.49

$

Usually ships in 3-6 days

0

25

Toro 36-6830

DECK SUPPORT

$

$

Not available

26

Toro 37-8060

Decal Deck

$

$

Not available

27

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

Toro 8-3149

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
