16820 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) GRASS CATCHER ASSEMBLY (MODEL NO. 16820 & 16830) Parts Diagram

Walk-Behind Mower

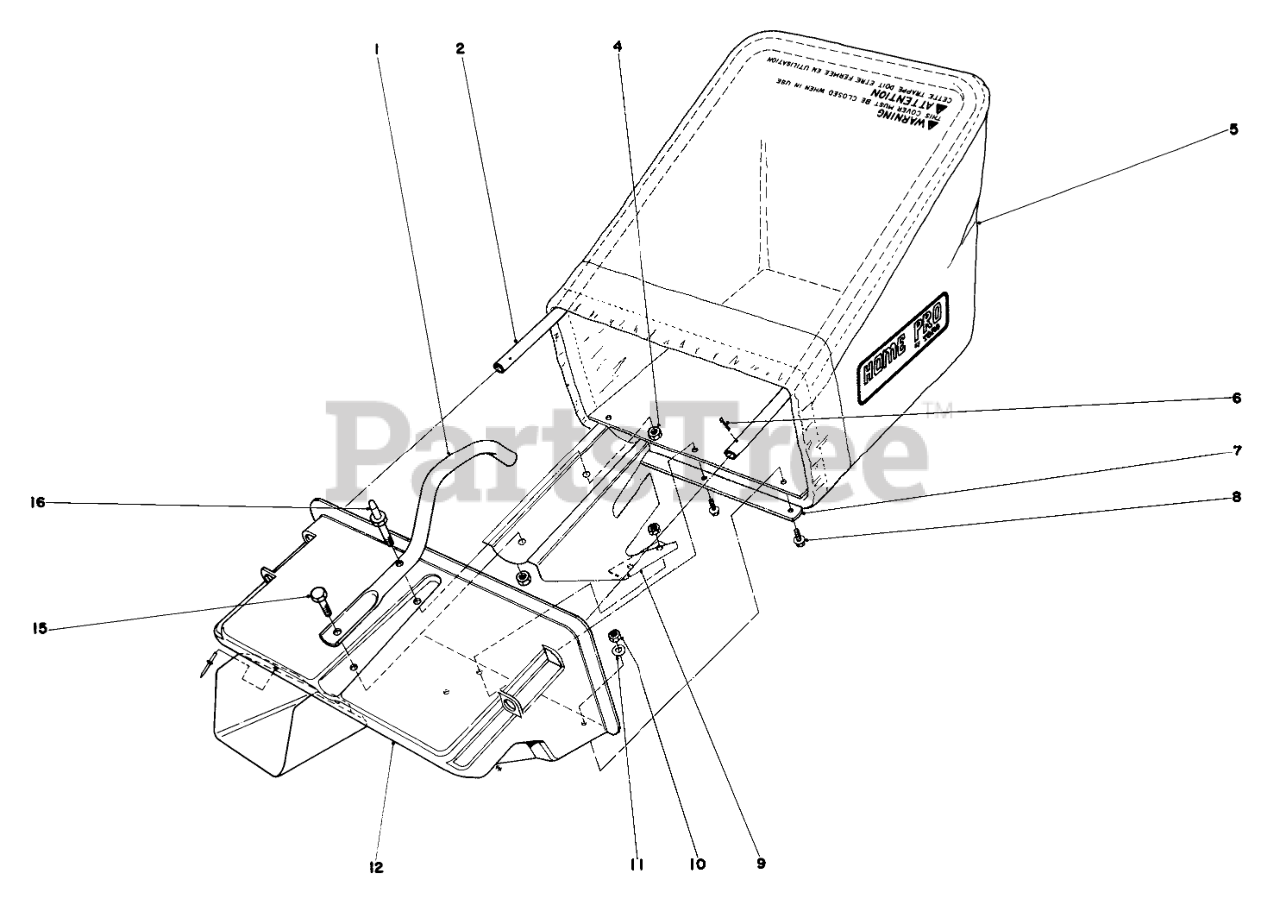

GRASS CATCHER ASSEMBLY (MODEL NO. 16820 & 16830) Parts Diagram

  • Title
1

Toro 38-0520

BAG HANDLE

$

$

Not available

2

Toro 37-9990

BAG FRAME

$

$

Not available

4

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

5

Toro 8-4729

Grass Bag
(Superseded to 39-9080)

$

$

Not available

6

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

7

Toro 38-4690

BAG RETAINER

$

$

Not available

8

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

9

Toro 38-1120

BAFFLE-BAG SHELL

$34.99

$

Usually ships in 3-6 days

0

10

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

11

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 38-1230

Bag Shell

$

$

Not available

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

16

Toro 38-0530

HANDLE STUD

$

$

Not available
