16820 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) ENGINE ASSEMBLY (MODEL NO.16820) Parts Diagram

Walk-Behind Mower

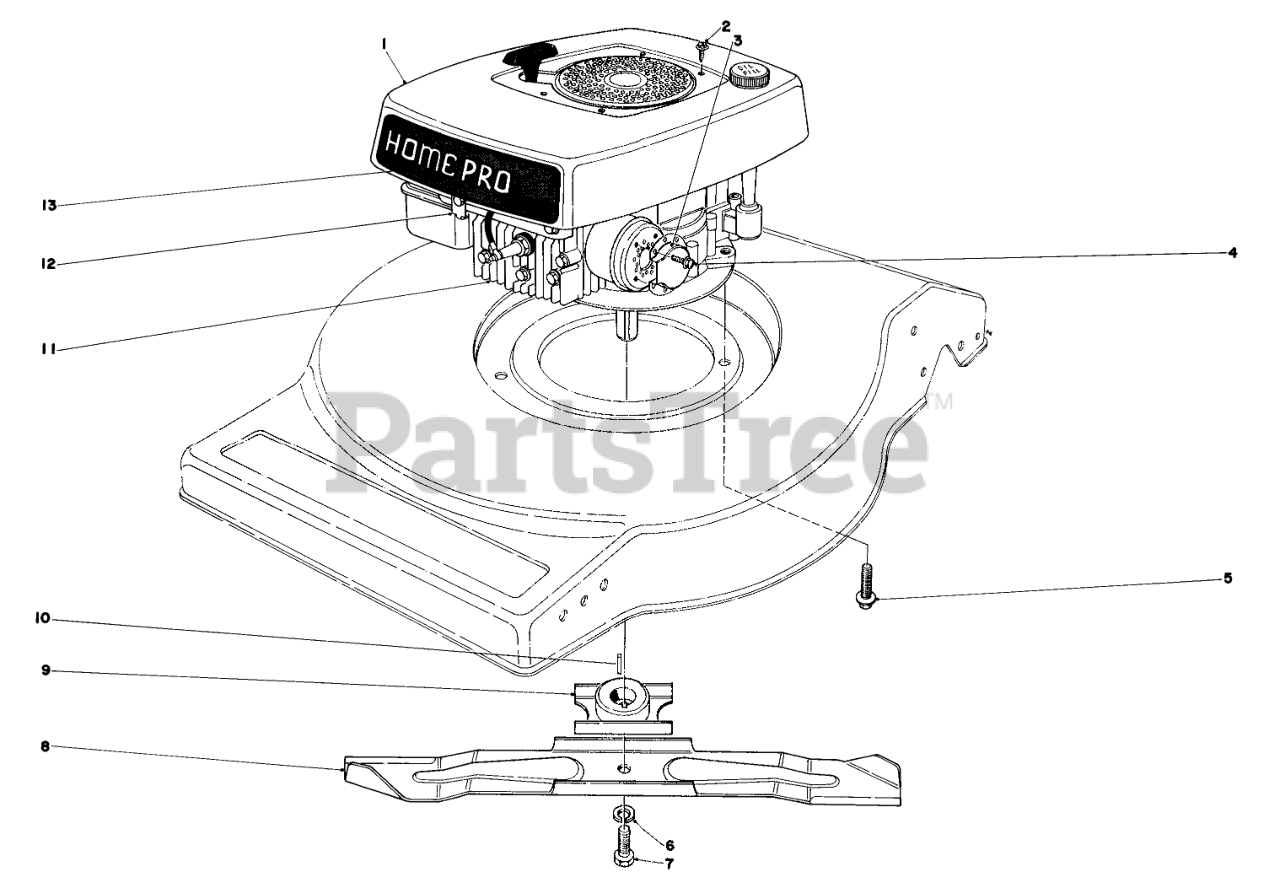

ENGINE ASSEMBLY (MODEL NO.16820) Parts Diagram

  • Title

1

Toro 28-6771

Shroud
(Superseded to 28-6772)

$

$

Not available

2

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

3

Toro 2210-184

Deflector

$

$

Not available

4

Toro 2210-173

SCREW W/ENGINE

$

$

Not available

5

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

6

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

7

Toro 3-5246

SPECIAL SCREW

$

$

Not available

8

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

9

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$64.99

$

Usually ships in 3-6 days

0

10

Toro 7-0036

KEY-SQUARE

$

$

Not available

11

Toro 221-599

Engine

$

$

Currently unavailable

12

Toro 38-7580

Bracket Control

$

$

Not available

13

Toro 38-5030

Decal Shroud

$

$

Not available

Toro 8-4989

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
