1681802 - Simplicity Hiller/Furrower Attachment Hiller / Furrow Group (2636I01) Parts Diagram

Hiller/Furrower Attachment

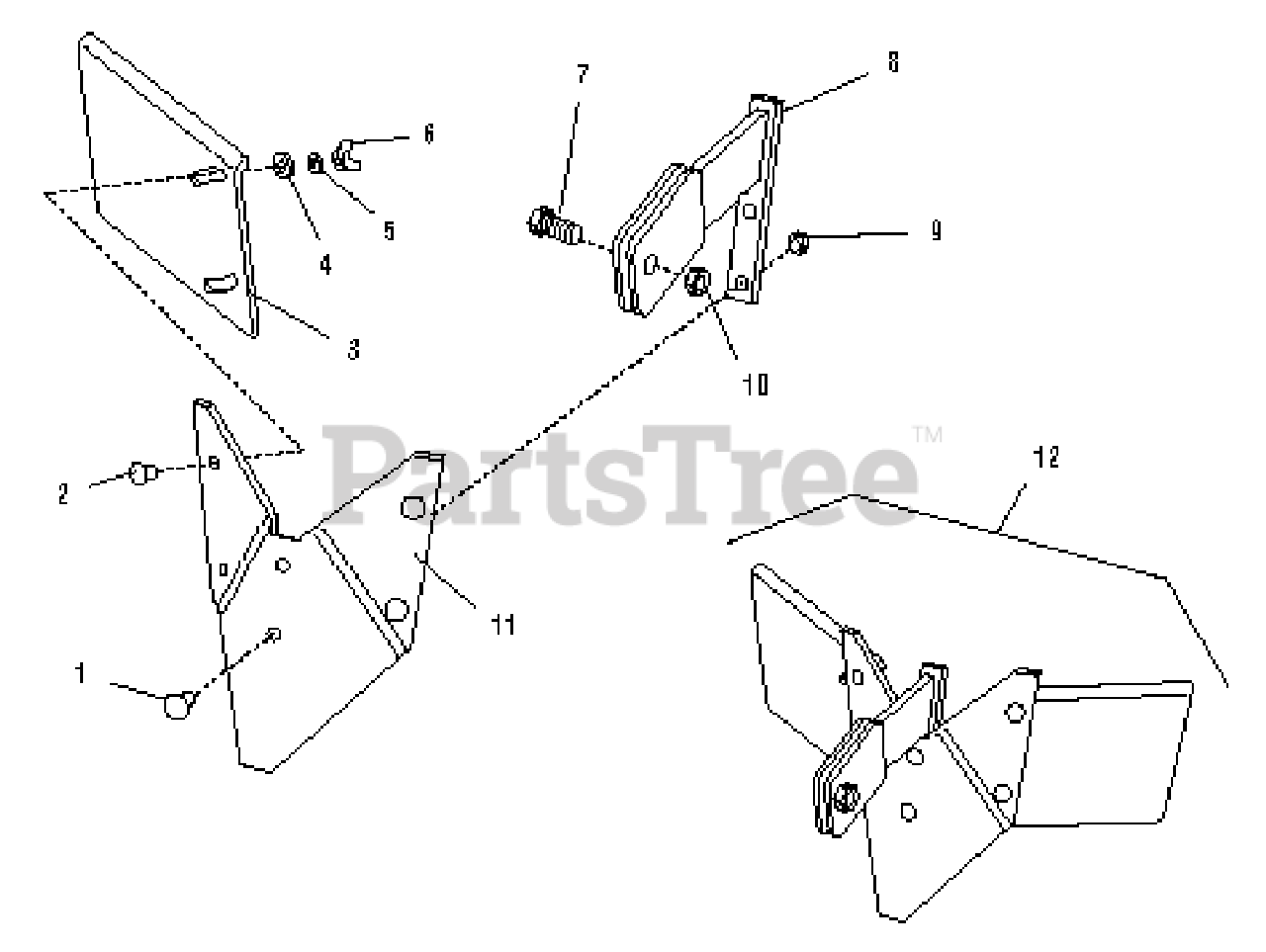

Hiller / Furrow Group (2636I01) Parts Diagram

  • Title
1

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 2 left!

0

2

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1723726SM

HILLER WING, Left

$18.99

$

Usually ships in 2-12 days

0

3

Simplicity 1723727SM

HILLER WING, Right (Not Shown)

$38.99

$

Usually ships in 2-12 days

0

4

Simplicity 1960044SM

WASHER, Flat, 5/16

$4.49

$

In Stock, only 3 left!

0

5

Simplicity 2820426SM

LOCKWASHER, External Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

6

Simplicity 1933126SM

WING NUT, 5/16-18

$5.49

$

In Stock, Qty 5

0

7

Simplicity 1960268SM

BOLT, Socket Head, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 10

0

$67.99

$

Usually ships in 2-12 days

0

9

Simplicity 1919439SM

NUT, Nyloc, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1723724SM

BLADE, Furrower

$60.99

$

Usually ships in 2-12 days

0

12

Simplicity 1686802SM

HILLER / FURROWER ATTACHMENT, Complete

$173.99

$

Usually ships in 2-12 days

0
