16810 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) HANDLE ASSEMBLY-MODEL 16800 Parts Diagram

Walk-Behind Mower

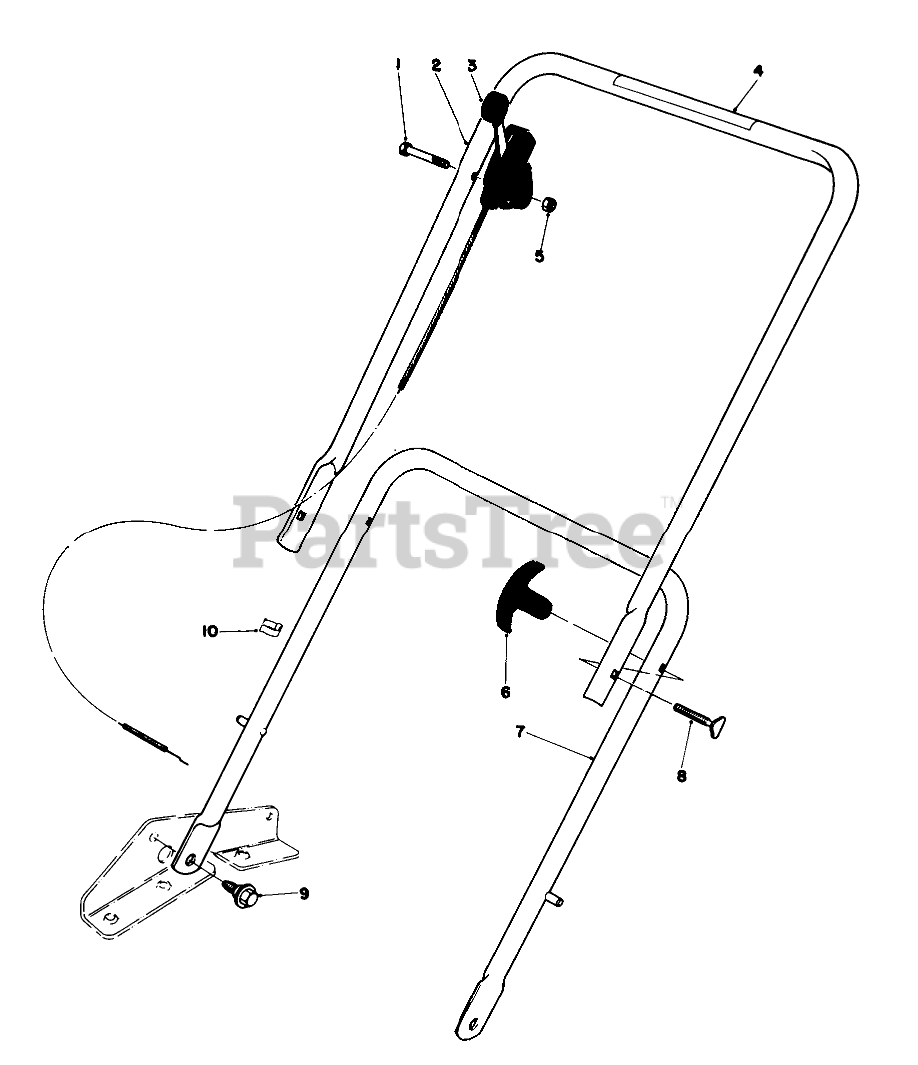

HANDLE ASSEMBLY-MODEL 16800 Parts Diagram

  • Title
1

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 36-6460

Upper Handle

$

$

Not available

3

Toro 33-2535

Throttle Control
(Superseded to 46-6000)

$50.99

$

Usually ships in 3-6 days

0

4

Toro 29-6290

Decal

$

$

Not available

5

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

6

$

$

Not available

7

Toro 27-7050

Lower Handle
(Superseded to 38-1260)

$230.99

$

Usually ships in 3-6 days

0

8

Toro 6-6330

HANDLE SCREW

$

$

Not available

9

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

10

$

$

Not available
