16793 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

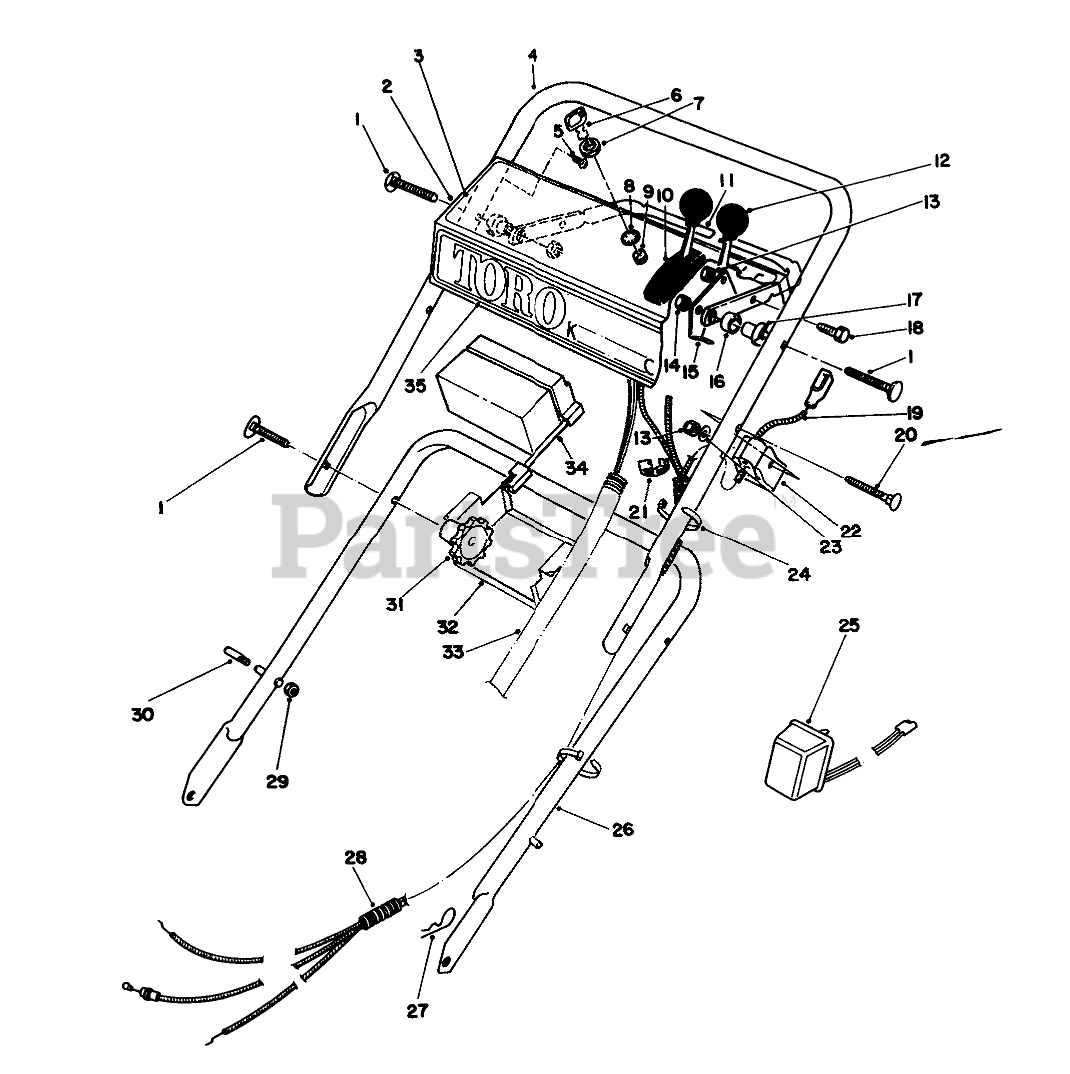

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 12

0

2

Toro 11-7029

Panel-Control (Incl. Ref. #3)

$

$

Not available

3

Toro 46-7430

INSTRUCTION DECAL

$

$

Not available

4

Toro 49-4234

UPPER HANDLE

$

$

Not available

5

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 2 left!

0

7

Toro 218461

Nut

$

$

Currently unavailable

8

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

9

Toro 46-5780

Switch-Starter (Incl. Ref. #7-8)

$29.99

$

In Stock, only 1 left!

0

10

Toro 46-6040

SERVICE TRACT. CONTROL

$

$

Not available

11

Toro 62-3810

Bar-Control
(Superseded to 71-3080-05)

$38.99

$

Usually ships in 3-6 days

0

12

Toro 46-6010

SERVICE THROTTLE CONTRO

$60.99

$

Usually ships in 3-6 days

0

13

Toro 329642

Nut

$

$

Currently unavailable

14

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

15

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

16

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

17

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

18

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 43-4531

BRAKE CABLE-SUZUKI

$

$

Not available

20

Toro 46-6434

HANDLE SCREW

$4.49

$

Usually ships in 3-6 days

0

21

Toro 2412-50

FITTING-RING

$8.99

$

Usually ships in 3-6 days

0

22

Toro 46-6980

SUPPORT-CABLE

$15.99

$

Usually ships in 3-6 days

0

23

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

25

Toro 6-9780

Charger
(Superseded to 131-0848)

$67.99

$

Usually ships in 3-6 days

0

26

Toro 49-1690

LOWER HANDLE ASM

$152.99

$

Usually ships in 3-6 days

0

27

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

28

Toro 46-6441

CONT. CABLE COVER

$

$

Not available

29

Toro 329647

Locknut

$

$

Currently unavailable

30

Toro 49-2750

HANDLE PIN

$32.99

$

Usually ships in 3-6 days

0

31

Toro 194050

Horn

$

$

Currently unavailable

32

Toro 63-8480

BATTERY RETAINER

$

$

Not available

33

Toro 46-5811

Wire Harness Assembly
(Superseded to 46-5810)

$164.99

$

Usually ships in 3-6 days

0

34

Toro 63-8570

Battery
(Superseded to 99-5262)

$

$

Not available

35

Toro 46-8460

Decal-Toro

$

$

Not available
