16793 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

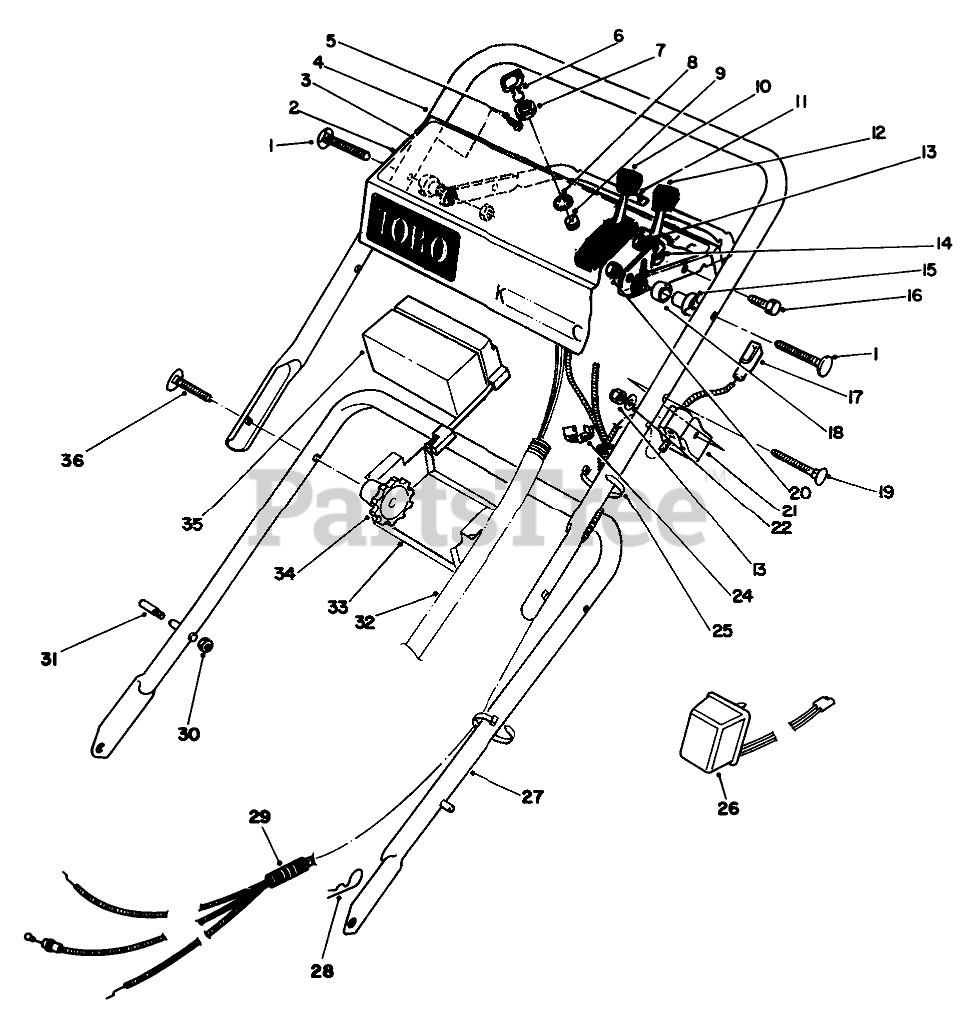

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 12

0

2

Toro 13-5709

Panel-Control (Incl. Ref. #3)

$

$

Not available

3

Toro 46-7430

INSTRUCTION DECAL

$

$

Not available

4

Toro 494234

Handle-Upper

$

$

Currently unavailable

5

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

7

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

8

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

9

Toro 46-5780

Switch-Starter (Incl. Ref. #7 & 8)

$29.99

$

In Stock, only 1 left!

0

10

Toro 46-6884

Control-Traction (Bend Type #3) Sheath Lg. 46")(Wire Lg. 2")
(Superseded to 46-6883)

$

$

Not available

11

Toro 71-3080

Bar-Control
(Superseded to 71-3080-05)

$38.99

$

Usually ships in 3-6 days

0

12

Toro 67-9811

THROTTLE CONTROL

$

$

Not available

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

15

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

16

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 43-4531

BRAKE CABLE-SUZUKI

$

$

Not available

18

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

19

Toro 46-6434

HANDLE SCREW

$4.49

$

Usually ships in 3-6 days

0

20

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

21

Toro 46-6980

SUPPORT-CABLE

$15.99

$

Usually ships in 3-6 days

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 2412-50

FITTING-RING

$8.99

$

Usually ships in 3-6 days

0

25

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

26

Toro 6-9780

Charger
(Superseded to 131-0848)

$67.99

$

Usually ships in 3-6 days

0

27

Toro 49-1690

LOWER HANDLE ASM

$152.99

$

Usually ships in 3-6 days

0

28

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

29

Toro 46-6441

CONT. CABLE COVER

$

$

Not available

30

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

31

Toro 49-2750

HANDLE PIN

$32.99

$

Usually ships in 3-6 days

0

32

Toro 46-5810

WIRE HARNESS

$164.99

$

Usually ships in 3-6 days

0

33

Toro 63-8480

BATTERY RETAINER

$

$

Not available

34

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

35

Toro 63-8570

Battery
(Superseded to 99-5262)

$

$

Not available

36

Toro 17-9424

SCREW
(Superseded to 6-6330)

$

$

Not available
