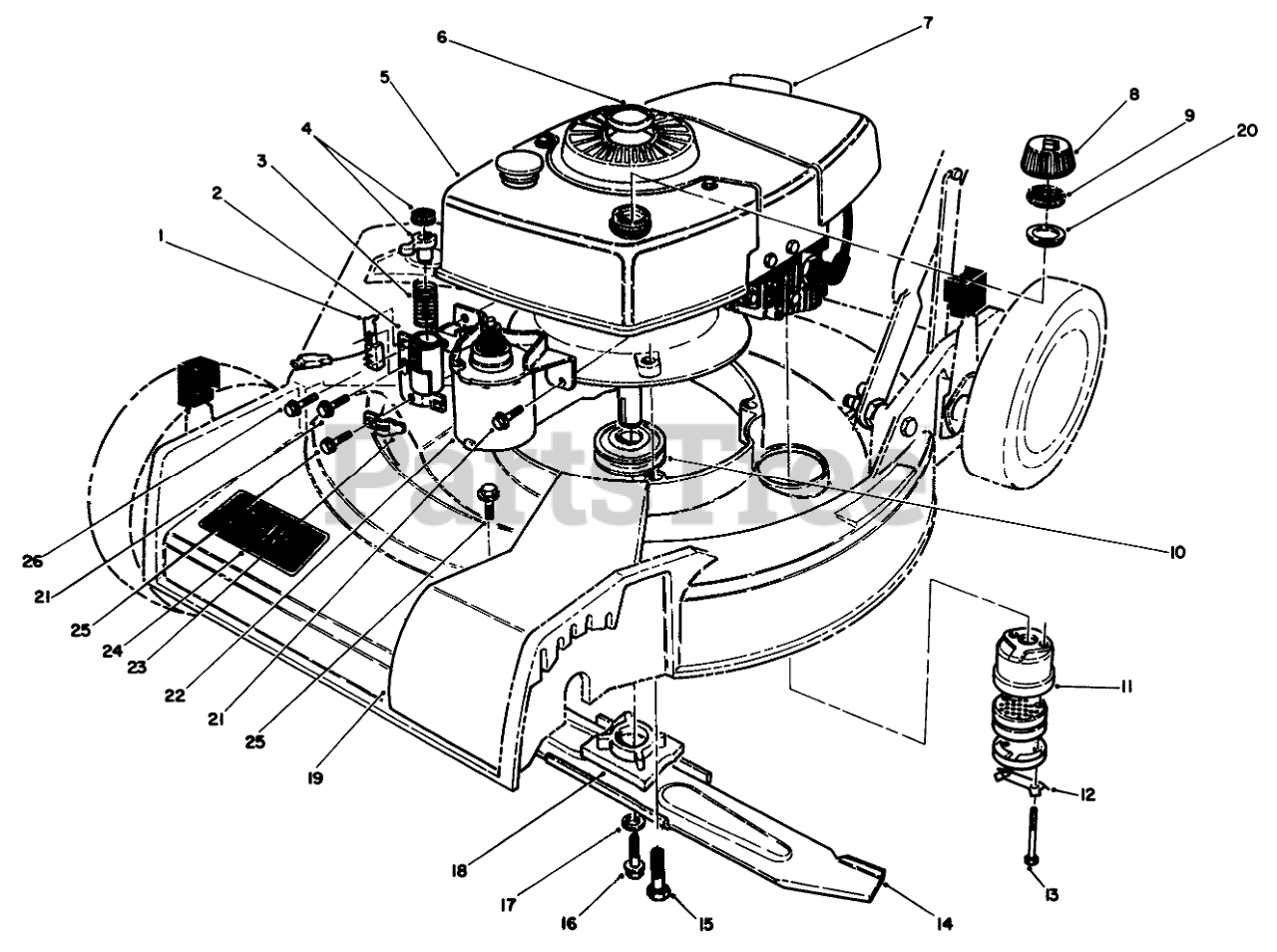

16793 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 70-2490

PUSH BUTTON SWITCH

$

$

Not available

2

Toro 46-5840

TUBE W A

$

$

Not available

3

Toro 47-2180

COMPRESSION SPRING

$

$

Not available

4

Toro 47-7350

BRAKE PAD/PLUNGER ASM

$

$

Not available

5

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

6

Toro 38-1480

PLUG BUTTON

$16.99

$

In Stock, only 1 left!

0

7

Toro 37-1580

Decal-Maintenan

$

$

Not available

8

Toro 42-0682

Gas Cap Assembly (Incl. Ref. #9 & 20)

$

$

Not available

9

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

10

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

11

Toro 5-4769

Muffler Assembly (Incl. Ref. #12 & 13)

$54.99

$

Usually ships in 3-6 days

0

12

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

13

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

14

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$36.99

$

In Stock, only 2 left!

0

15

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

16

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

17

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

18

Toro 49-7900

BLADE RETAINER

$63.99

$

In Stock, only 2 left!

0

19

Toro 46-4780

BELT COVER 21" S D

$30.99

$

Usually ships in 3-6 days

0

20

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

21

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

22

Toro 49-4210

STARTER MOTOR ASM

$

$

Not available

23

Toro 46-6530

CABLE CLAMP

$

$

Not available

24

Toro 70-2200

DECAL

$6.49

$

Usually ships in 3-6 days

0

25

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

26

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0
