1679-0 - Briggs & Stratton 10kW Home Standby Generator Alternator (B4899) Parts Diagram

10kW Home Standby Generator

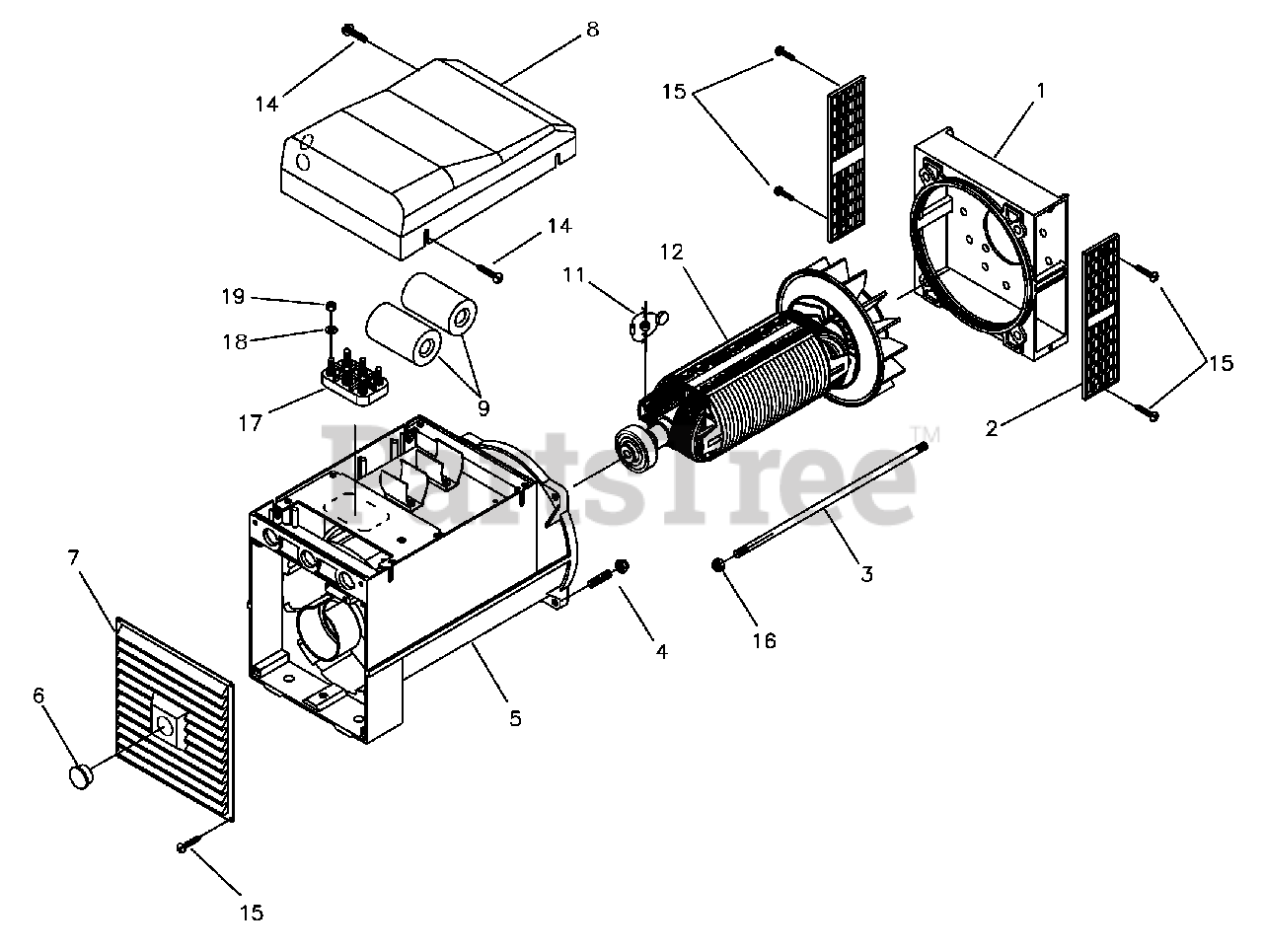

Alternator (B4899) Parts Diagram

  • Title

1

Briggs & Stratton B4906GS

SHIELD, Front

$126.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B4907GS

GRID, Front

$18.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B4908GS

BOLT

$28.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton B4909GS

BOLT

$11.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B4910GS

ASSY, Housing

$1203.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 187049GS

PLUG, Domed

$8.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B4912GS

COVER, Blind End

$24.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B4913GS

COVER,Top Black

$99.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B4914GS

CAPACITOR
(Superseded to 311560GS)

$

$

Not available

11

Briggs & Stratton B4916GS

CAPACITOR, Diode + Varistor + EMC

$

$

Not available

12

Briggs & Stratton 191297GS

ASSY, Rotor

Note: (Includes Item 11)

$969.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B4919GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B4920GS

SCREW

$1.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 49820GS

NUT, Lock

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 188928GS

CONNECTOR, 6-Pin

$65.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22473GS

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

19

Briggs & Stratton 49813GS

NUT

$2.99

$

Usually ships in 2-12 days

0
