16785 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) CARBURETOR ASSEMBLY (MODEL NO. 47PJ8) Parts Diagram

Walk-Behind Mower

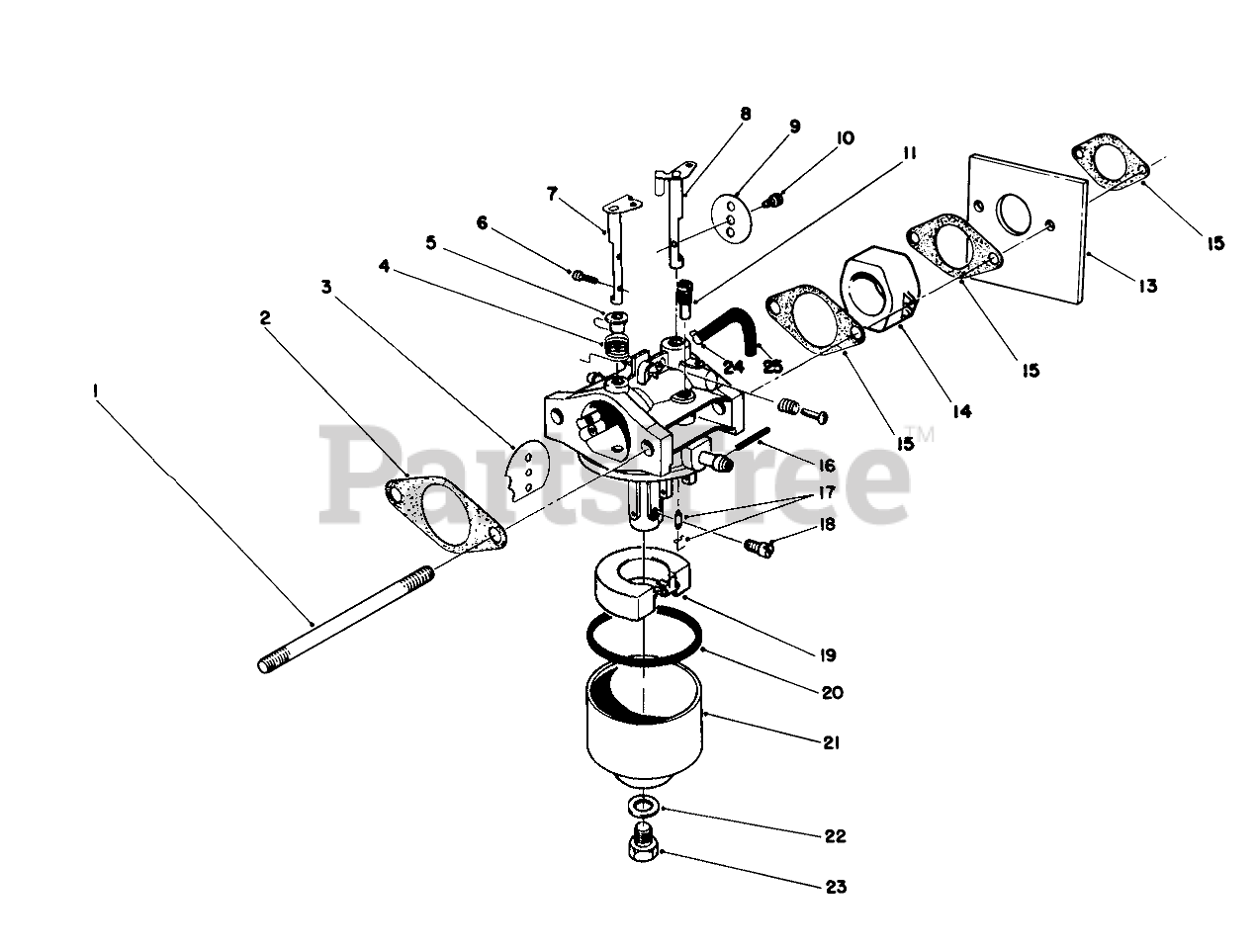

CARBURETOR ASSEMBLY (MODEL NO. 47PJ8) Parts Diagram

  • Title
1

Toro 81-5450

STUD-CARBURETOR

$

$

Not available

2

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

3

Toro 81-0240

PLATE

$

$

Not available

4

Toro 81-0230

SPRING

$

$

Not available

5

Toro 81-0220

BUSHING

$

$

Not available

6

Toro 81-2160

SCREW

$4.99

$

Usually ships in 3-6 days

0

7

Toro 81-1950

SHAFT-CHOKE

$

$

Not available

8

Toro 81-0250

SHAFT

$116.99

$

Usually ships in 3-6 days

0

9

Toro 81-0260

PLATE

$29.99

$

Usually ships in 3-6 days

0

10

Toro 81-0270

Screw-Throttle
(Superseded to 81-2160)

$4.99

$

Usually ships in 3-6 days

0

11

Toro 81-1030

PILOT JET

$33.99

$

Usually ships in 3-6 days

0

13

Toro 81-5490

SHIELD-CARBURETOR

$

$

Not available

14

Toro 81-5440

INSULATOR-CARBURETOR

$

$

Not available

15

Toro 81-0780

GASKET-CARB

$6.99

$

In Stock, only 2 left!

0

16

Toro 81-5600

Pin
(Superseded to 81-2600)

$8.49

$

Usually ships in 3-6 days

0

17

Toro 81-4910

NEEDLE

$

$

Not available

18

Toro 81-1060

JET-MAIN

$

$

Not available

Toro 81-2340

JET-HIGH ALTITUDE

$20.99

$

Usually ships in 3-6 days

0

19

Toro 81-0970

FLOAT

$60.99

$

Usually ships in 3-6 days

0

20

Toro 81-1010

GASKET

$19.99

$

In Stock, only 1 left!

0

21

Toro 81-5660

BOWL - FLOAT

$71.99

$

Usually ships in 3-6 days

0

22

Toro 81-5720

Gasket-Bowl Screw
(Superseded to 81-1020)

$

$

Not available

23

Toro 81-5670

SCREW

$14.99

$

Usually ships in 3-6 days

0

Toro 12-6379

Carburetor Kit (Incl. Ref. #2, 15, 17, 20 & 22)

$

$

Not available

Toro 81-5740

Carburetor Ass-y Complete
(Superseded to 81-2520)

$

$

Not available

1

Toro 81-1080

GASKET

$8.49

$

In Stock, only 4 left!

0

2

Toro 81-0200

Arrestor-Spark

$

$

Not available

3

Clamp

$

$

Not available

4

Toro 81-1090

Muffler
(Superseded to 81-5690)

$

$

Not available

5

Toro 81-2450

COVER-MUFFLER

$

$

Not available

6

$

$

Not available

7

Toro 81-1120

WASHER-LOCK

$2.49

$

In Stock, only 1 left!

0

8

$

$

Not available

9

$9.99

$

Usually ships in 3-6 days

0

10

Toro 81-1140

SCREW

$6.99

$

Usually ships in 3-6 days

0

24

Toro 81-5460

CLAMP

$

$

Not available

25

Toro 81-5470

VENT TUBE

$

$

Not available
