16785 - Toro Walk-Behind Mower (SN: 008000001 - 008007011) (1988) ENGINE ASSEMBLY (SERIAL NO. 8000001-8001571) Parts Diagram

Walk-Behind Mower

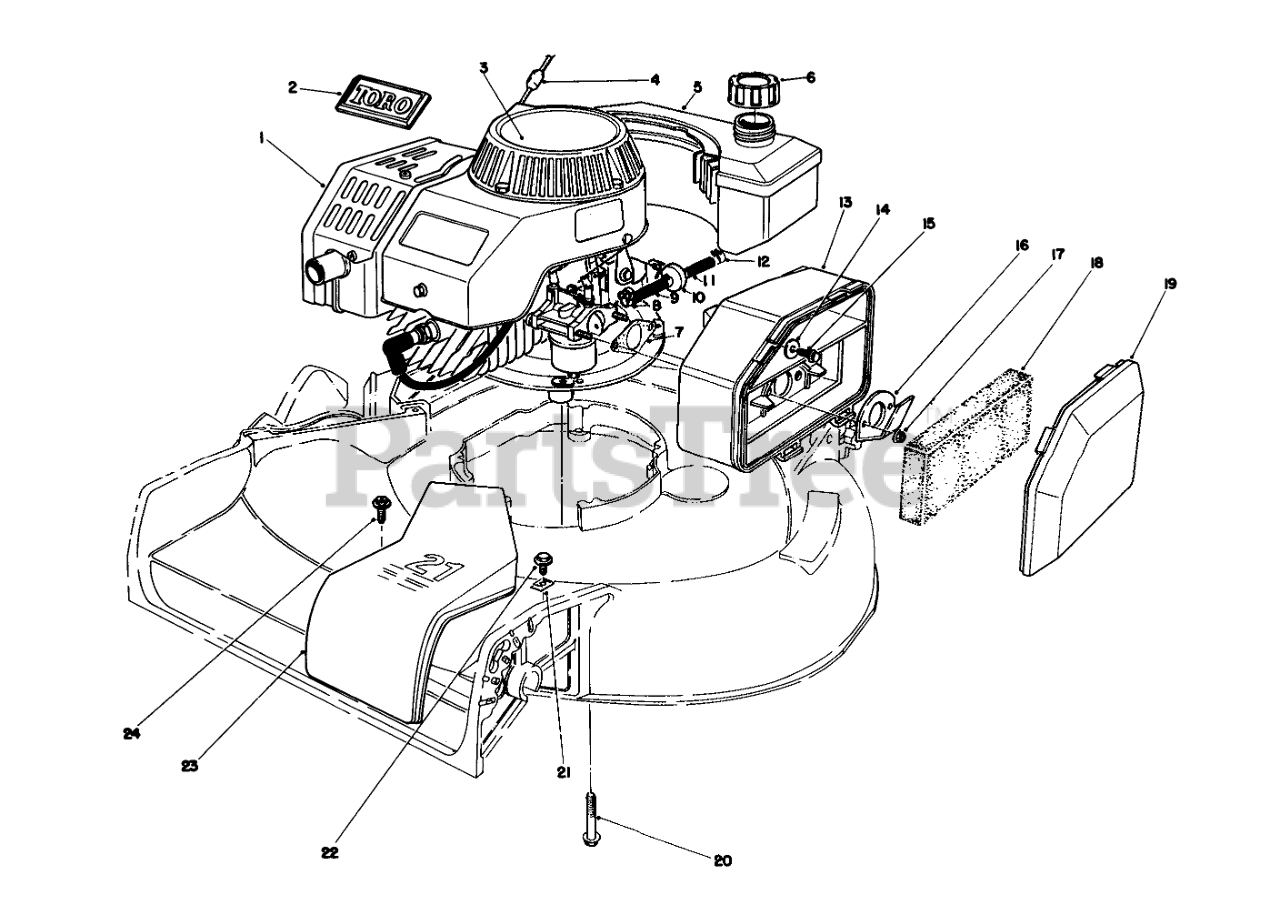

ENGINE ASSEMBLY (SERIAL NO. 8000001-8001571) Parts Diagram

  • Title

1

Toro 51-0412

Engine
(Superseded to 12-8099)

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

3

Toro 57-9870

DECAL

$

$

Not available

4

Toro 81-3980

STOP

$7.49

$

In Stock, only 1 left!

0

5

Toro 81-0162

FUEL TANK ASM
(Superseded to 99-5263)

$

$

Not available

6

Toro 55-3575

GAS CAP ASM

$20.99

$

Usually ships in 3-6 days

0

7

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

8

Toro 51-3200

FUEL LINE CLAMP

$

$

Not available

9

Toro 51-3216

HOSE-FUEL

$5.49

$

In Stock, only 4 left!

0

10

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

11

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

12

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 8

0

13

Toro 81-0110

AIR CLEANER

$

$

Not available

14

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

15

Toro 51-2690

SCREW-HH

$2.49

$

In Stock, only 4 left!

0

16

Toro 81-0140

SPIT BACK DEFLECTOR

$

$

Not available

17

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

18

Toro 81-0100

FILTER

$9.49

$

In Stock, only 1 left!

0

19

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

20

Toro 66-9302

SCREW-HHF, WHIZ

$4.99

$

Usually ships in 3-6 days

0

21

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 3 left!

0

22

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

23

Toro 46-4780

BELT COVER 21" S D

$

$

Not available

24

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

Toro 56-2530

Fuel Filter Kit (Incl. Ref. #8-12)

$

$

Not available

Staple-Rope Stop

$

$

Not available
