16785 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) RECOIL ASSEMBLY ENGINE 47PE4 (USED ON UNITS WITH SERIAL NO. 6000101-6004101)ENGINE 47PF5 (USED ON UNITS WITH SERIAL NO. 6004102 & Parts Diagram

Walk-Behind Mower

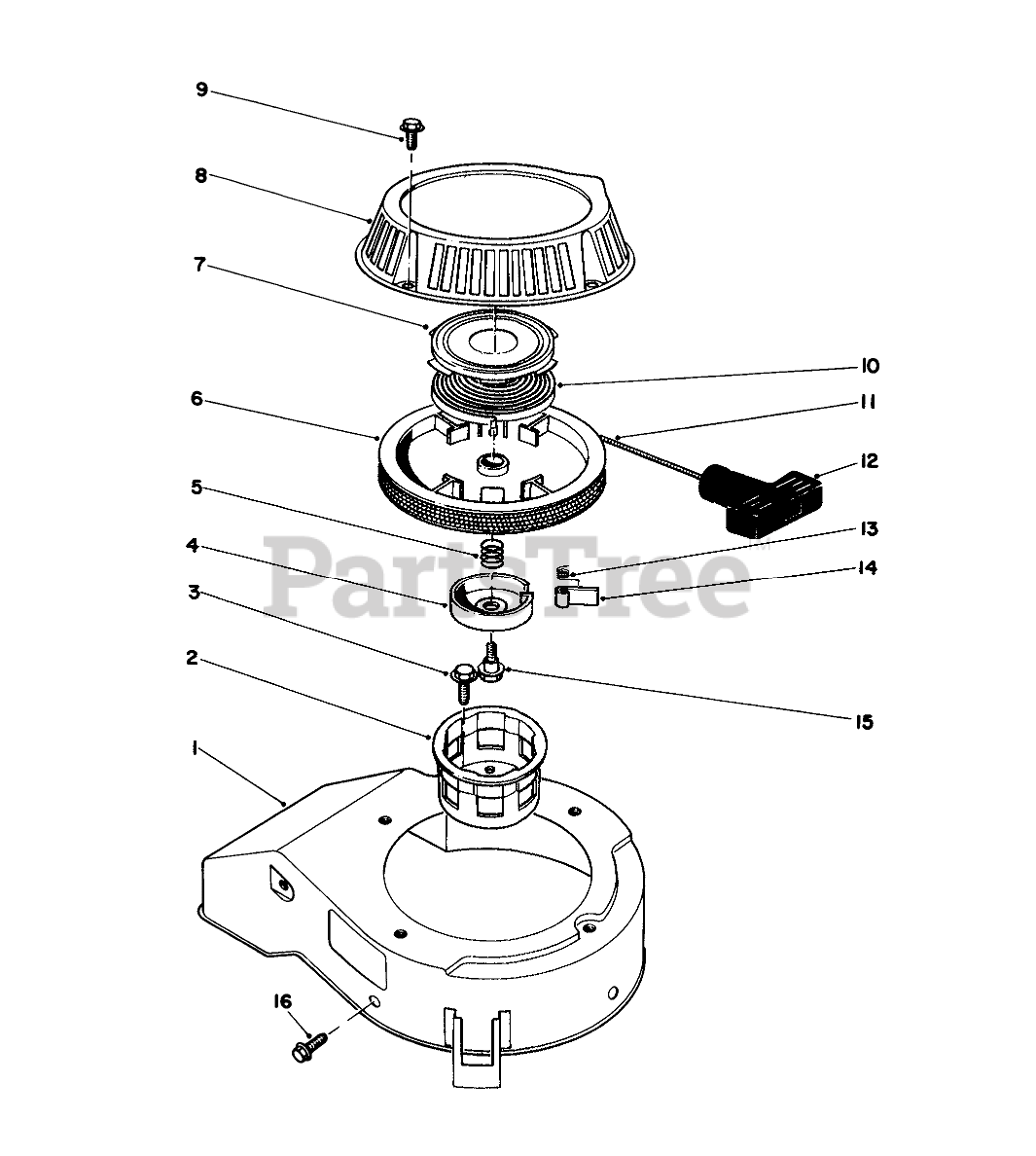

RECOIL ASSEMBLY ENGINE 47PE4 (USED ON UNITS WITH SERIAL NO. 6000101-6004101)ENGINE 47PF5 (USED ON UNITS WITH SERIAL NO. 6004102 & Parts Diagram

  • Title

1

Toro 81-2070

COVER

$

$

Not available

2

Toro 81-1290

CUP - STARTER

$25.99

$

Usually ships in 3-6 days

0

3

Toro 81-1300

BOLT

$9.99

$

Usually ships in 3-6 days

0

4

Toro 81-1250

RETAINER

$24.99

$

In Stock, only 1 left!

0

5

Toro 81-1240

SPRING

$

$

Not available

6

Toro 81-1210

REEL

$54.99

$

In Stock, only 2 left!

0

7

Toro 81-1640

Retainer-Recoil Spring
(Superseded to 81-2300)

$43.99

$

Usually ships in 3-6 days

0

8

Toro 81-2090

CASE

$

$

Not available

9

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

10

Toro 81-1200

Spring-Recoil
(Superseded to 81-2300)

$43.99

$

Usually ships in 3-6 days

0

11

Toro 81-1270

ROPE-STARTER
(Superseded to 613773)

$34.99

$

Usually ships in 3-6 days

0

12

Toro 81-1630

HANDLE-RECOIL

$21.99

$

Usually ships in 3-6 days

0

13

Toro 81-1220

SPRING

$

$

Not available

14

Toro 81-1230

DOG

$

$

Not available

15

Toro 81-1260

BOLT

$

$

Not available

16

Toro 81-1170

BOLT

$

$

Not available

Toro 47-2480

STOP-ROPE

Note: Not illustrated

$

$

Not available

Toro 81-2040

RECOIL ASM (F/W & PPP)

Note: Not illustrated

$400.99

$

Usually ships in 3-6 days

0

Toro 81-2300

SPRING

Note: Not illustrated

$43.99

$

Usually ships in 3-6 days

0
