16785 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

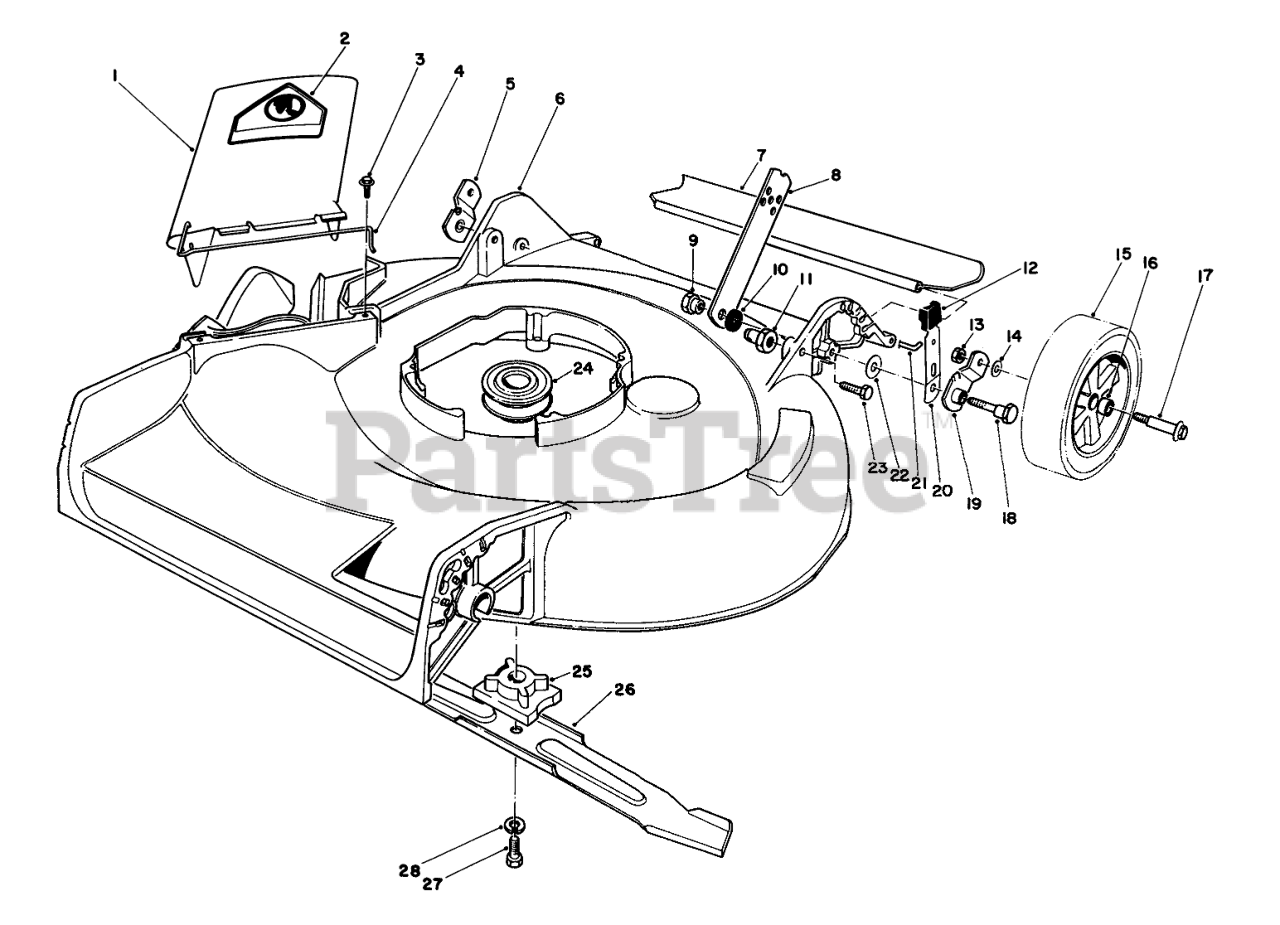

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 27-7817

Deflector Assembly (Incl. Ref. #2 & 4)
(Superseded to 13-4049)

$

$

Not available

2

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

3

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

4

Toro 20-2640

SPRING HINGE

$

$

Not available

5

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

6

Toro 11-4639

Housing
(Superseded to 99-5250)

$

$

Not available

7

Toro 22-4950

REAR SAFETY SHIELD 21

$

$

Not available

8

Toro 27-7080

HANDLE LATCH

$

$

Not available

9

Toro 27-6520

HANDLE PIVOT NUT

$9.99

$

Usually ships in 3-6 days

0

10

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

11

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

12

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

13

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

14

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

15

Toro 27-6200

Wheel 8 Tire Assembly (Incl Ref. #16)

$

$

Not available

16

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

17

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 7

0

18

Toro 28-8880

PIVOT SCREW

$10.99

$

In Stock, only 2 left!

0

19

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

20

Toro 25-8000

SPRING ARM ASM

$

$

Not available

21

Toro 33-3201

SHIELD ROD

$

$

Not available

22

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

23

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

24

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

25

Toro 49-7900

BLADE RETAINER

$73.99

$

In Stock, only 2 left!

0

26

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$41.99

$

In Stock, only 2 left!

0

27

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

28

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

Toro 12-0989

Loose Parts

Note: Not illustrated

$

$

Not available
