16780 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

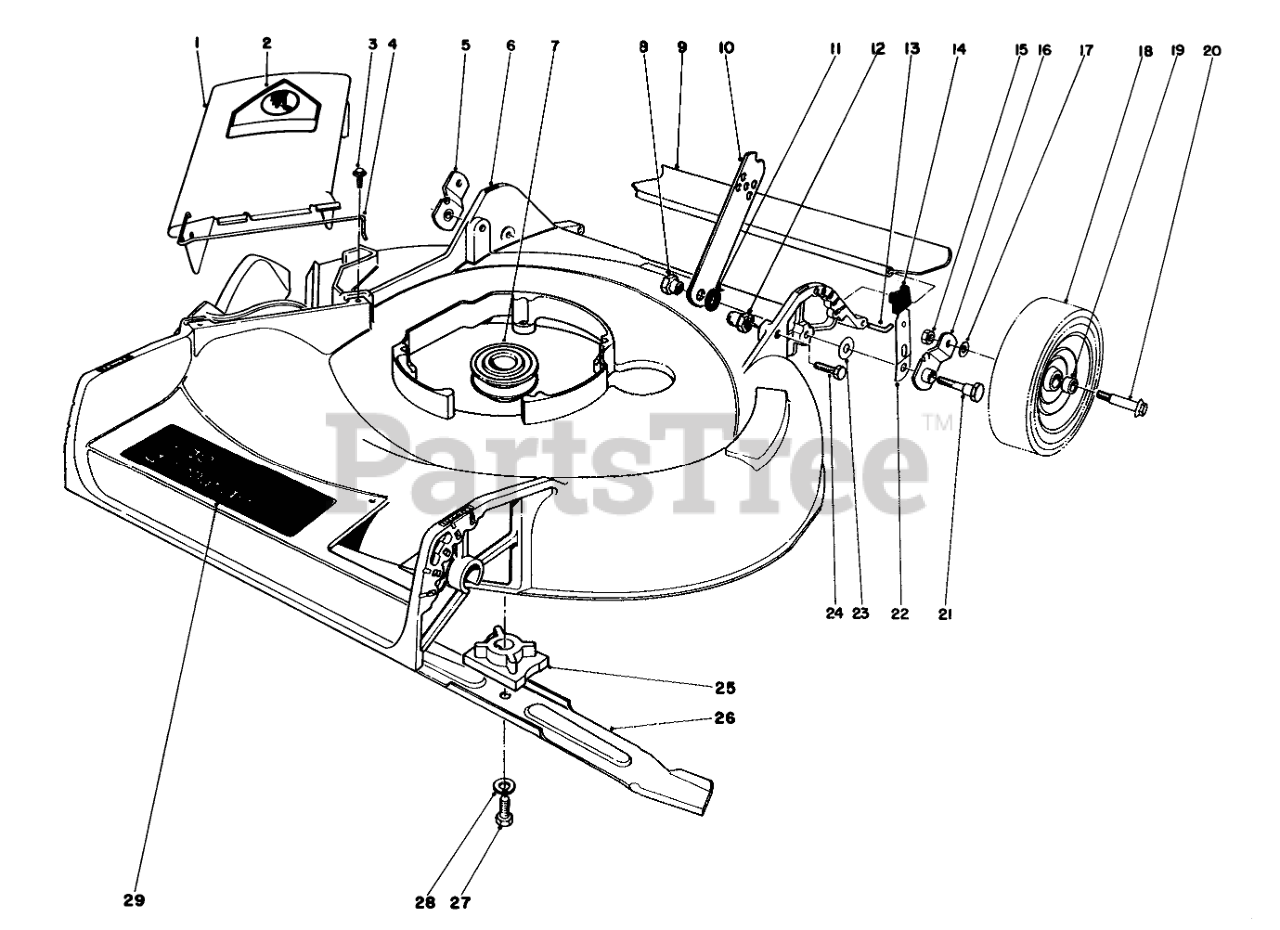

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 27-7817

Deflector Assembly (Incl. Ref. #2 & 4)
(Superseded to 13-4049)

$

$

Not available

2

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

3

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

4

Toro 20-2640

SPRING HINGE

$

$

Not available

5

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

6

Toro 11-4639

Housing
(Superseded to 99-5250)

$

$

Not available

7

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

8

Toro 27-6520

HANDLE PIVOT NUT

$9.99

$

Usually ships in 3-6 days

0

9

Toro 22-4950

REAR SAFETY SHIELD 21

$

$

Not available

10

Toro 27-7080

HANDLE LATCH

$

$

Not available

11

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

12

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

13

Toro 33-3201

SHIELD ROD

$

$

Not available

14

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

15

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

16

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

17

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

18

Toro 11-6349

Wheel & Tire Assembly (Incl. Ref. #19)

$

$

Not available

19

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

20

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

21

Toro 28-8880

PIVOT SCREW

$10.99

$

In Stock, only 2 left!

0

22

Toro 25-8000

SPRING ARM ASM

$

$

Not available

23

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

24

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

25

Toro 49-7900

BLADE RETAINER

$73.99

$

In Stock, only 2 left!

0

26

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$41.99

$

In Stock, only 2 left!

0

27

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

28

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

29

Toro 44-0440

Decal-Side Discharge

$

$

Not available

Toro 11-6479

Loose Parts

Note: Not illustrated

$

$

Not available
