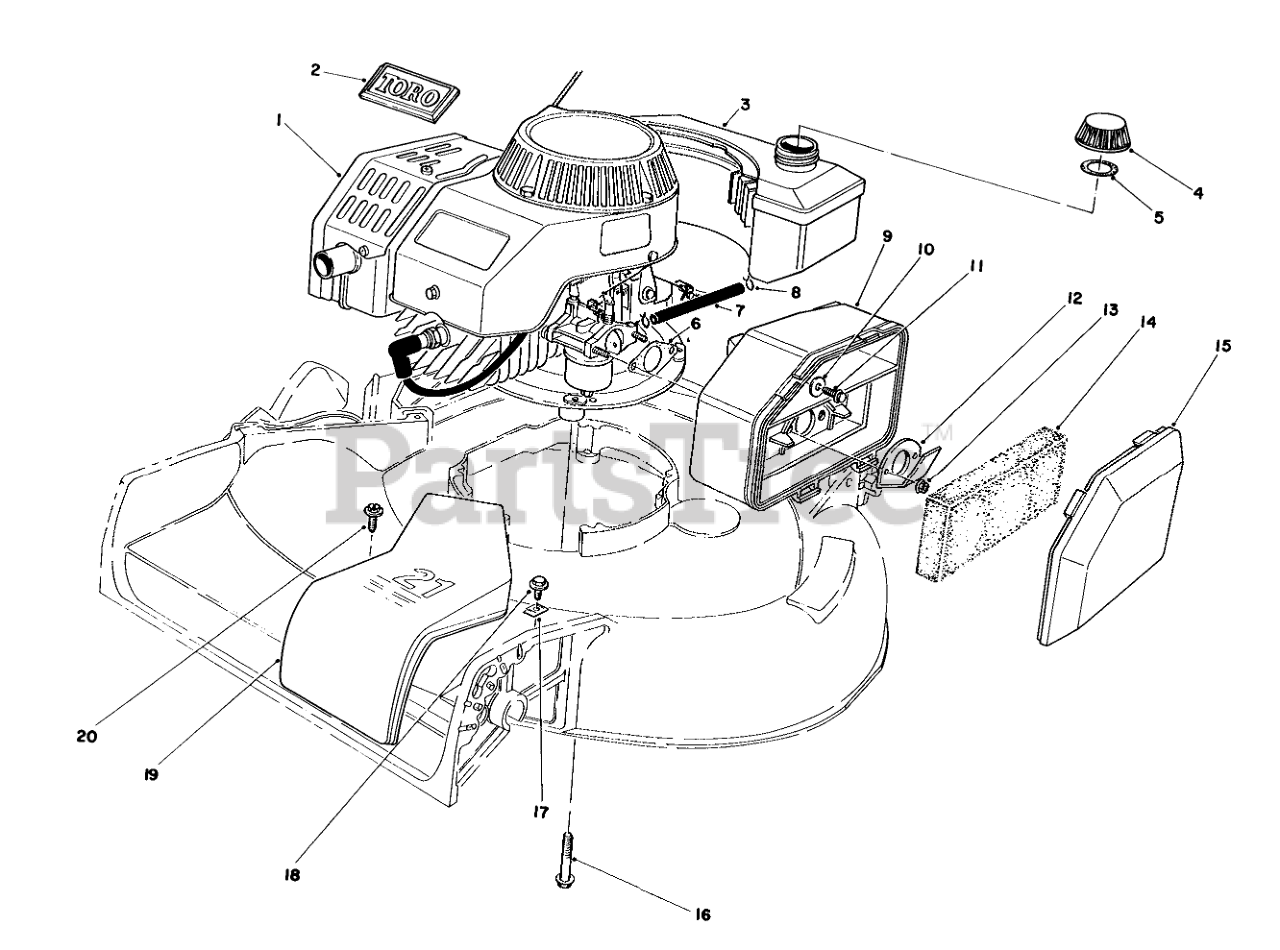

16780 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 59255

Engine
(Superseded to 12-8099)

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

3

Toro 81-0160

Fuel Tank Assembly
(Superseded to 99-5263)

$

$

Not available

4

Toro 42-0681

Gas Cap Assembly (Incl. Ref. #5)

$43.99

$

Usually ships in 3-6 days

0

5

Toro 20-4620

GAS CAP GASKET

$10.99

$

In Stock, Qty 6

0

6

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

7

Toro 81-2310

FUEL LINE

$3.49

$

Usually ships in 3-6 days

0

8

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 3 left!

0

9

Toro 81-0110

AIR CLEANER

$

$

Not available

10

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

11

Toro 57-2690

Screw Washer Head

$

$

Currently unavailable

12

Toro 81-0140

SPIT BACK DEFLECTOR

$

$

Not available

13

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

14

Toro 81-0100

FILTER

$9.49

$

In Stock, only 2 left!

0

15

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

16

Toro 3234-20

FLG SCREW,3/8-16X2.000
(Superseded to 66-9302)

$4.99

$

Usually ships in 3-6 days

0

17

Toro 46-5610

Cable Clamp
(Superseded to 62-3720)

$2.99

$

In Stock, only 3 left!

0

18

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

19

Toro 46-4780

BELT COVER 21" S D

$

$

Not available

20

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0
