16775 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

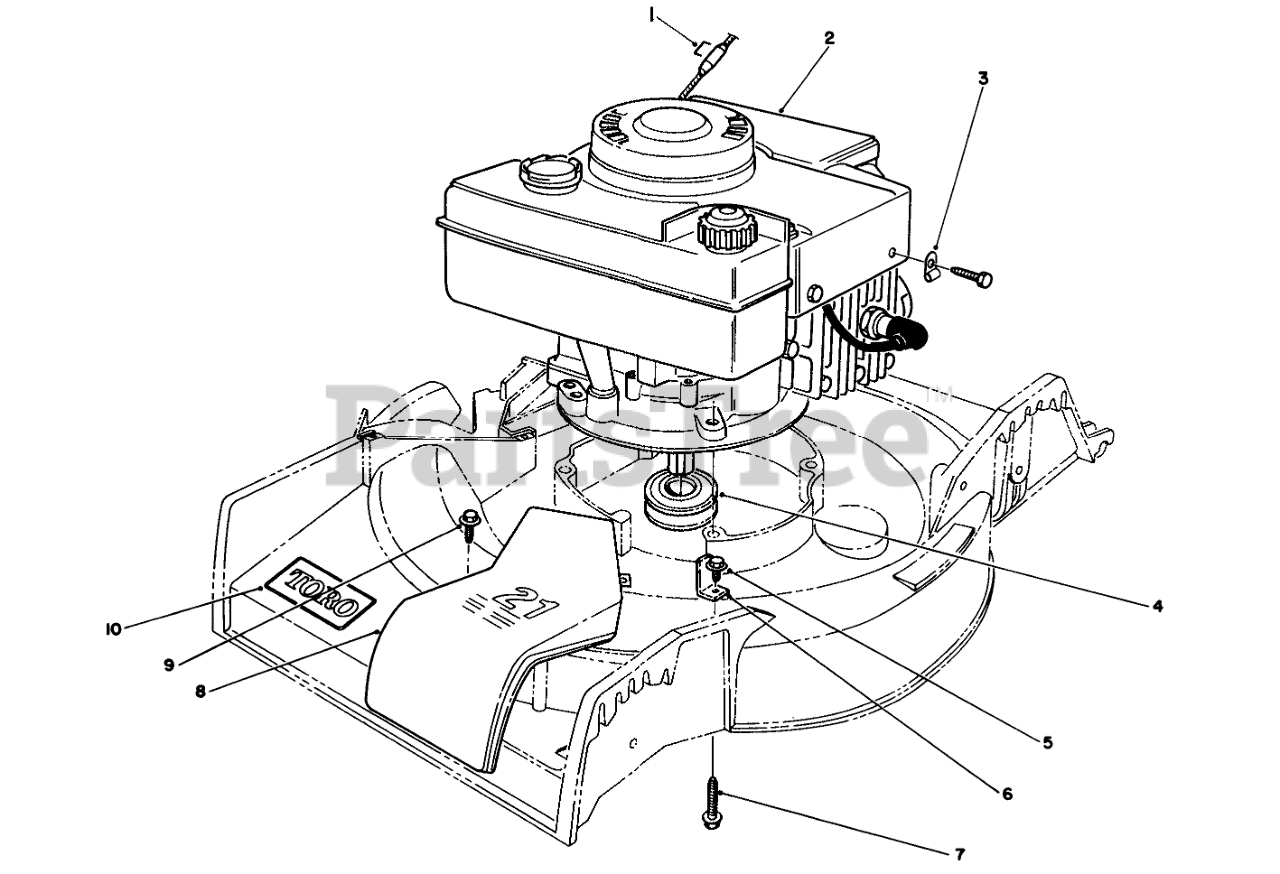

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Staple

$

$

Not available

2

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

3

Toro 2412-63

CLAMP

$

$

Not available

4

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

5

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 70-8080

BELT GUIDE

$3.49

$

In Stock, only 1 left!

0

7

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

8

Toro 46-4780

BELT COVER 21" S D

$

$

Not available

9

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

10

Toro 70-2200

DECAL

$6.49

$

Usually ships in 3-6 days

0
