16775 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

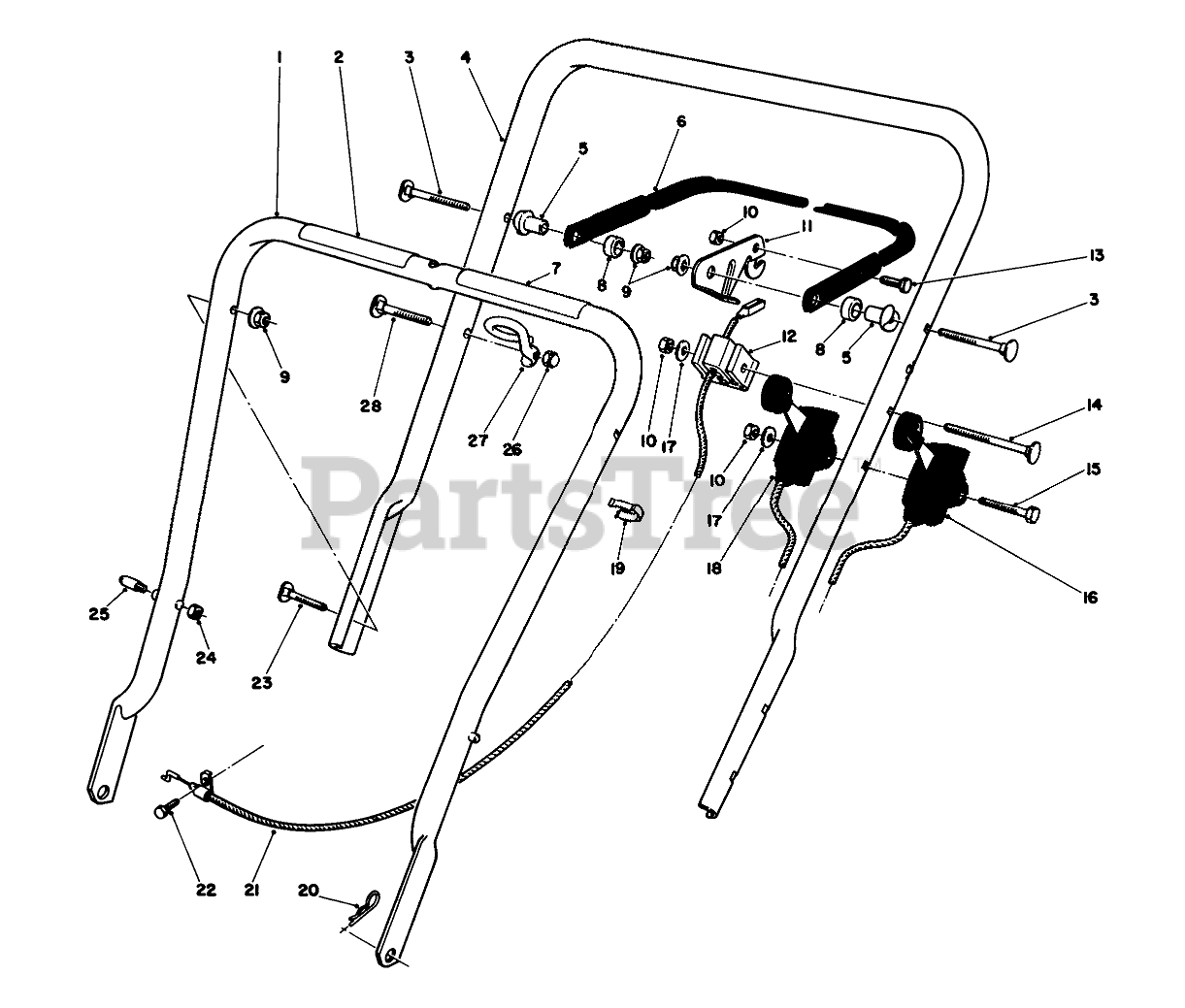

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 11-8889

Lower Handle Assembly (Incl. Ref. #2 & 7)

$

$

Not available

2

Toro 51-1590

DECAL - INSTRUCTIONS

$

$

Not available

3

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, only 2 left!

0

4

Toro 49-4231

UPPER HANDLE

$

$

Not available

5

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

6

Toro 49-4220

CONTROL BAR PROMO

$

$

Not available

7

Toro 49-1770

DANGER DECAL

$

$

Not available

8

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

9

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

11

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$13.99

$

Usually ships in 3-6 days

0

12

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 46-6434

HANDLE SCREW

$

$

Not available

15

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

16

Toro 33-2527

TRACTION CABLE

$122.99

$

Usually ships in 3-6 days

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 46-6000

SERVICE THROTTLE CONTRO

$50.99

$

Usually ships in 3-6 days

0

19

Toro 218-465

BOWDEN CLIP

$

$

Not available

20

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

21

Toro 46-8010

BRAKE CABLE

$

$

Not available

22

Toro 2210-250

SCREW-HH

$

$

Not available

23

Toro 17-9424

SCREW
(Superseded to 6-6330)

$

$

Not available

24

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Part

$3.99

$

In Stock, Qty 8

0

25

Toro 49-2750

HANDLE PIN

Note: Service Replacement Part

$36.99

$

Usually ships in 3-6 days

0

26

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

27

Toro 46-8080

Guide
(Superseded to 86-9671)

$4.49

$

In Stock, only 4 left!

0

28

Toro 46-6433

HANDLE SCREW

$14.99

$

Usually ships in 3-6 days

0
