16771 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) STARTER ASSEMBLY NO. 590532 Parts Diagram

Walk-Behind Mower

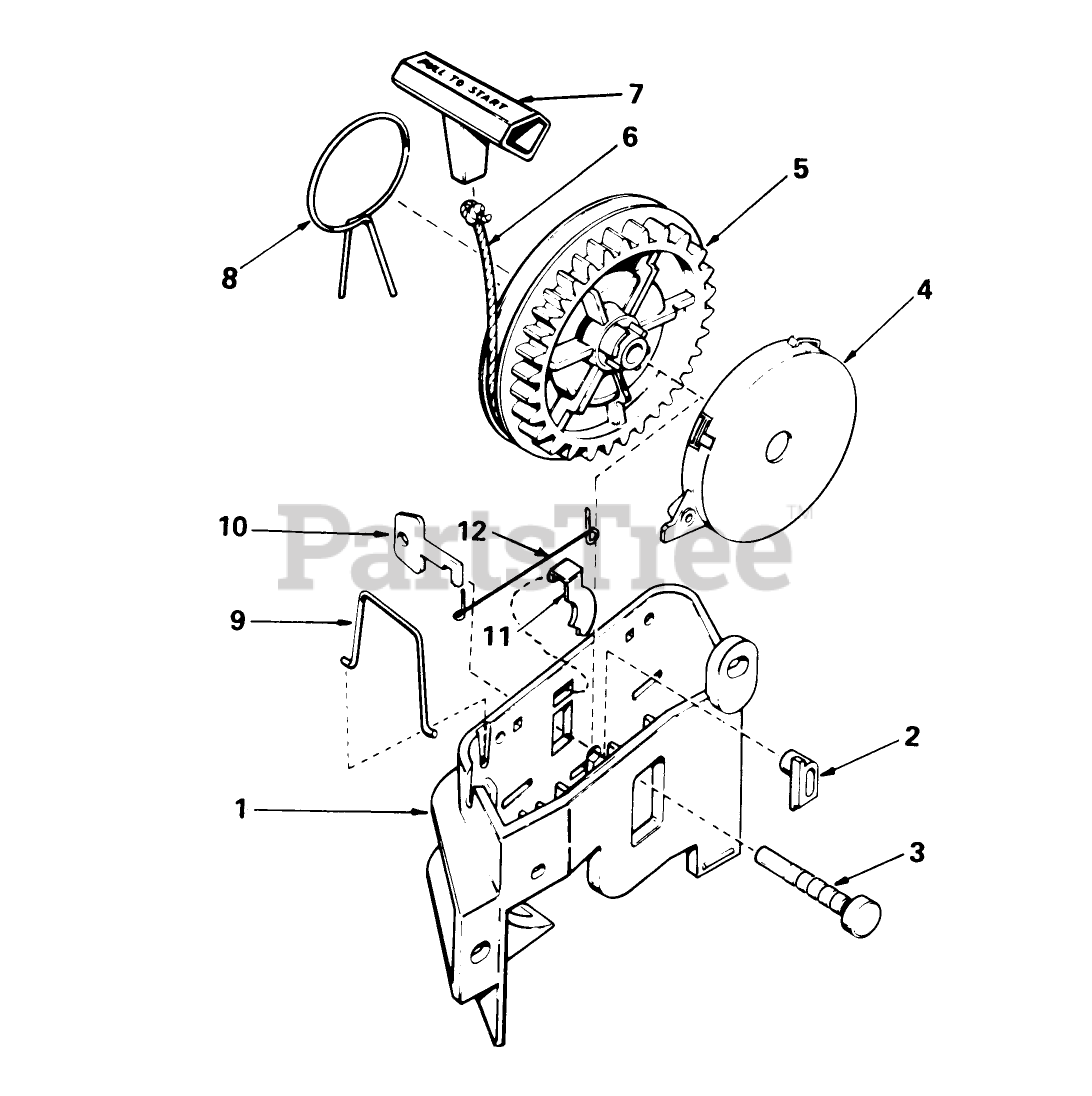

STARTER ASSEMBLY NO. 590532 Parts Diagram

  • Title

1

Briggs & Stratton 590523

Bracket Starter

$39.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 590524

Pawl, Locking Not used on all engine models)
(Superseded to 592968)

$28.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 590525

Pin-Pulley
(Superseded to 595351)

$116.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 590526

Spring Assy., Rewind (Incl. #3)

$10.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 590522

Pulley
(Superseded to 596501)

$8.49

$

In Stock, Qty 14

0

6

Briggs & Stratton 590535

Rope-Starter (98 cut to length)

$12.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 590452

Handle-Starter

$15.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 590554

Spring, Brake

$3.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 590529

Clip-Rope

$16.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 590530

Key (Not Used On All Engine Models

$30.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 590533

Pawl, Starter

$9.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 590534

Spring, Pawl

$12.99

$

Usually ships in 2-12 days

0
