16771 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

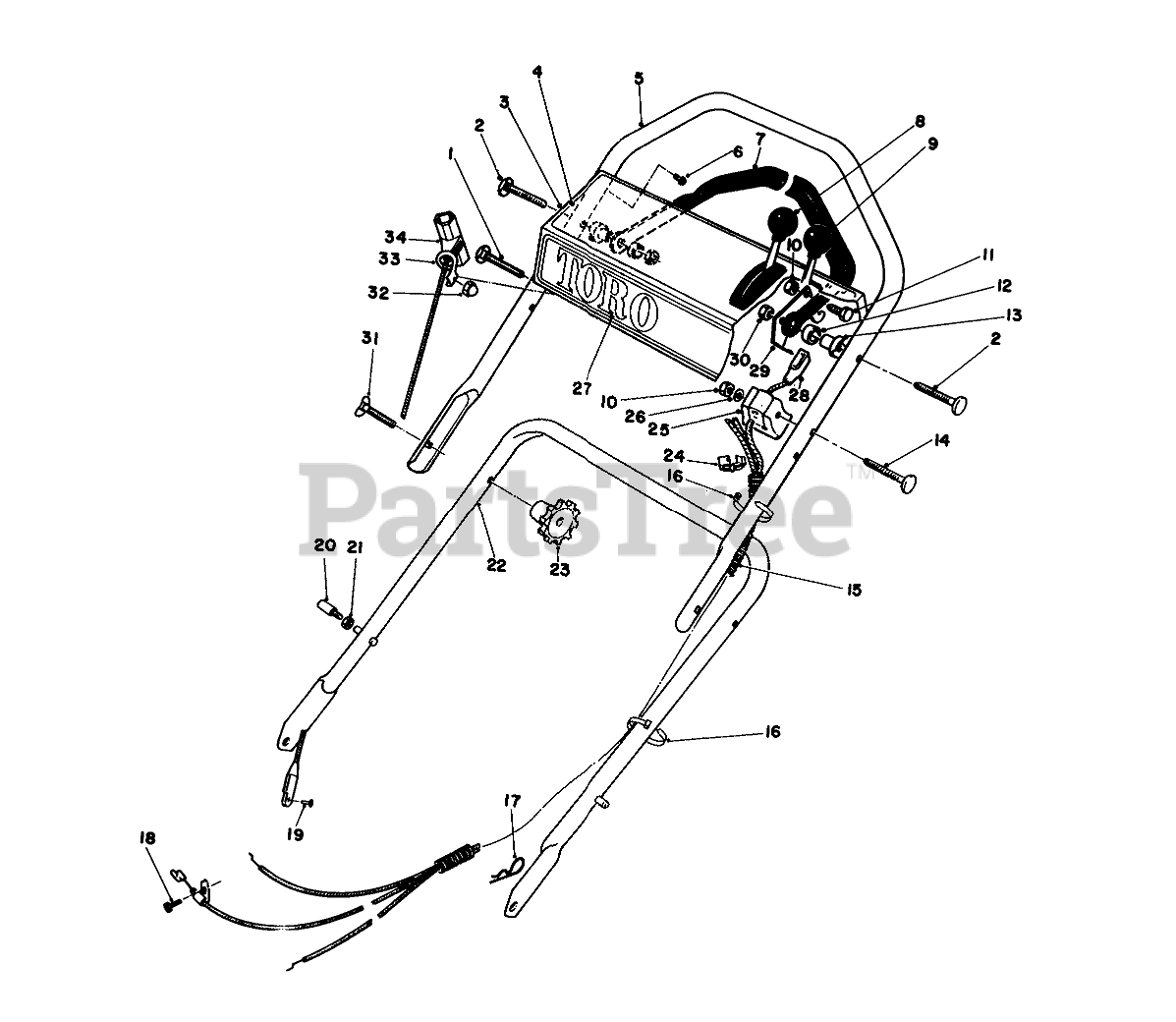

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-6433

HANDLE SCREW

$11.99

$

Usually ships in 3-6 days

0

2

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 11

0

3

Toro 11-6909

Panel-Control (Incl. Ref. #4)

$

$

Not available

4

Toro 46-7390

Decal-Instruction

$

$

Not available

5

Toro 46-5411

Handle-Upper
(Superseded to 84-8332)

$

$

Not available

6

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 46-5560

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

8

Toro 46-6010

SERVICE THROTTLE CONTRO

$60.99

$

Usually ships in 3-6 days

0

9

Toro 46-6040

SERVICE TRACT. CONTROL

$

$

Not available

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

13

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

14

Toro 46-6432

SCREW-HANDLE

$12.99

$

Usually ships in 3-6 days

0

15

Toro 46-6441

CONT. CABLE COVER

$

$

Not available

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

17

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

18

Toro 2210-250

SCREW-HH

$

$

Not available

19

Toro 2210-251

RIVET

$

$

Not available

20

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts

$32.99

$

Usually ships in 3-6 days

0

21

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Parts

$3.99

$

In Stock, Qty 7

0

22

Toro 49-1690

LOWER HANDLE ASM

$152.99

$

Usually ships in 3-6 days

0

23

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

24

Toro 2412-50

FITTING-RING

$8.99

$

Usually ships in 3-6 days

0

25

Toro 46-6980

SUPPORT-CABLE

$15.99

$

Usually ships in 3-6 days

0

26

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 46-7380

Decal-Toro
(Superseded to 66-1770)

$

$

Not available

28

Toro 46-8010

BRAKE CABLE

$

$

Not available

29

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$13.99

$

Usually ships in 3-6 days

0

30

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

31

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 11

0

32

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

33

Toro 46-8080

Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

34

Toro 46-8890

Rope-Starter

$

$

Not available
