16771 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

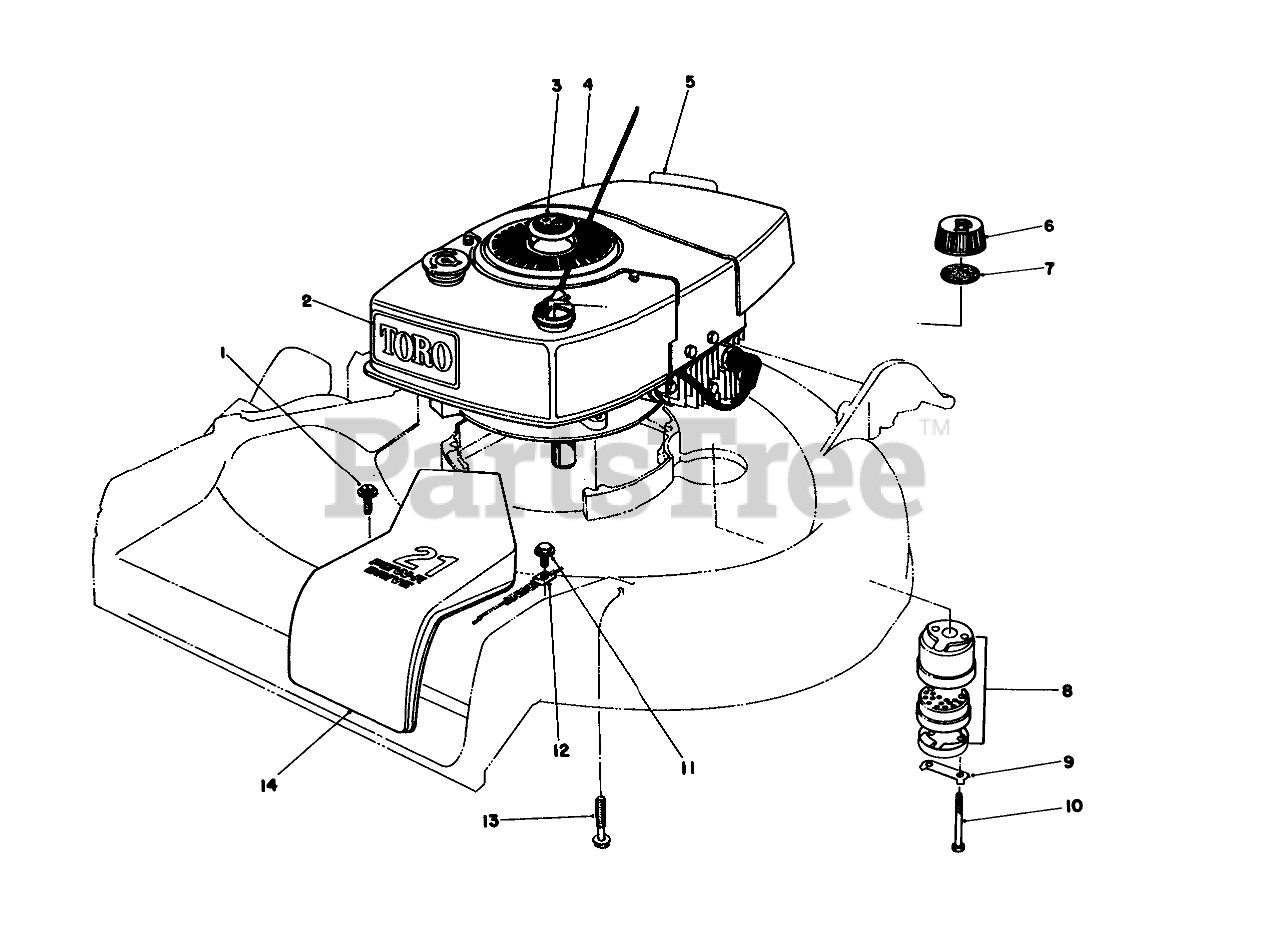

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

2

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

3

Toro 38-1480

PLUG BUTTON

$16.99

$

In Stock, only 1 left!

0

4

Toro 221-731

Engine

$

$

Currently unavailable

5

Toro 37-1580

Decal-Maintenan

$

$

Not available

6

Toro 42-0682

Gas Cap Assembly (Incl. Ref. #7)

$

$

Not available

7

Toro 20-4620

GAS CAP GASKET

$8.99

$

In Stock, Qty 6

0

8

Toro 5-4769

Muffler Assembly (Incl. #9 & 10)

$54.99

$

Usually ships in 3-6 days

0

9

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

10

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

11

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

12

Toro 46-5610

Cable Clamp
(Superseded to 62-3720)

$2.99

$

In Stock, only 3 left!

0

13

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

14

Toro 46-4780

BELT COVER 21" S D

$30.99

$

Usually ships in 3-6 days

0

Toro 11-6219

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 39-5930

Spark Arrestor Muffler (Optional (Incl. Ref. #9 & 10)

Note: Not illustrated

$

$

Not available
