16771 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

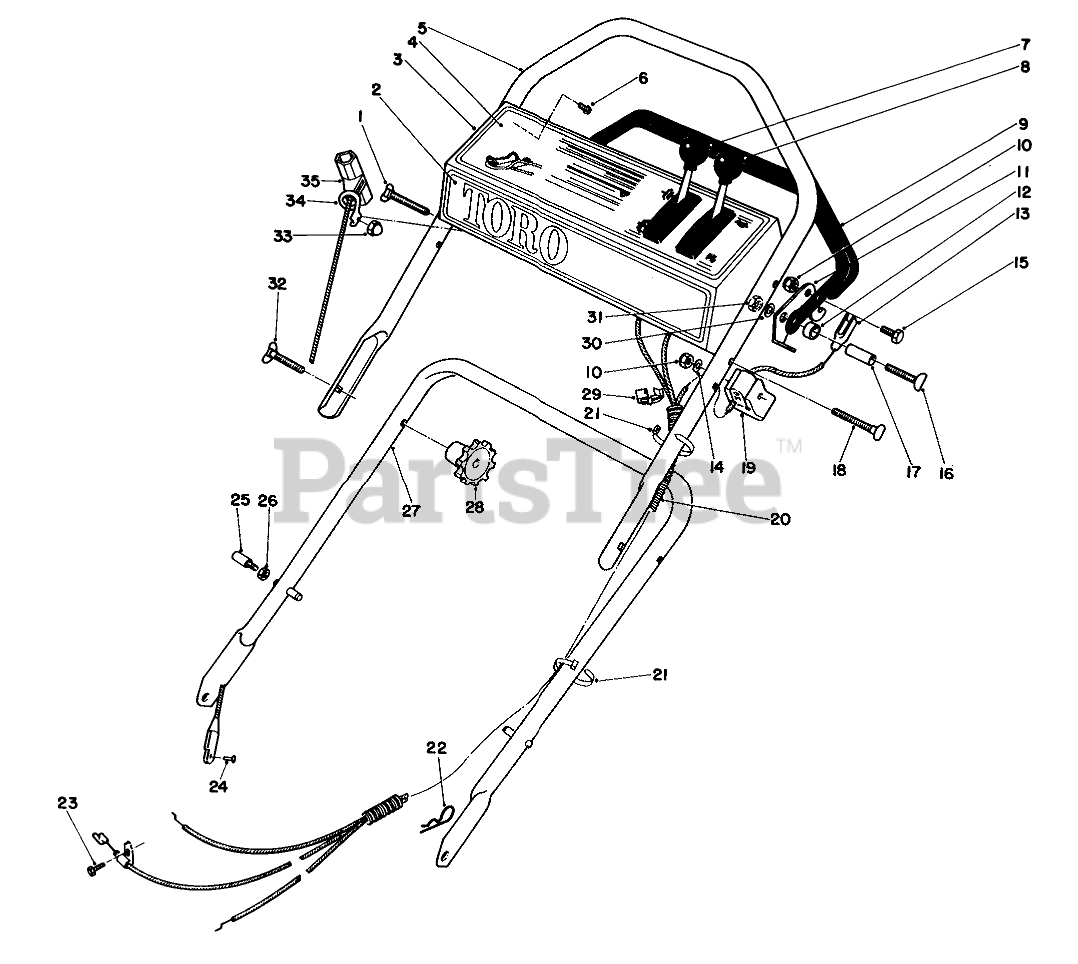

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-6433

HANDLE SCREW

$14.99

$

Usually ships in 3-6 days

0

2

Toro 46-7380

Decal-Toro
(Superseded to 66-1770)

$

$

Not available

3

Toro 114699

Panel-Control (Incl. Ref. #4)

$

$

Currently unavailable

4

Toro 46-7390

Decal-Instruction

$

$

Not available

5

Toro 46-5410

UPPER HANDLE

$

$

Not available

6

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 46-6040

SERVICE TRACT. CONTROL

$

$

Not available

8

Toro 46-6010

SERVICE THROTTLE CONTRO

$72.99

$

Usually ships in 3-6 days

0

9

Toro 46-5560

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

11

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$13.99

$

Usually ships in 3-6 days

0

12

Toro 46-6240

Nylon Spacer

$

$

Not available

13

Toro 46-8010

BRAKE CABLE

$

$

Not available

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, only 2 left!

0

17

Toro 46-5580

Spacer

$

$

Not available

18

Toro 46-6432

SCREW-HANDLE

$14.99

$

Usually ships in 3-6 days

0

19

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

20

Toro 46-6441

CONT. CABLE COVER

$

$

Not available

21

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

22

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

23

Toro 2210-250

SCREW-HH

$

$

Not available

24

Toro 2210-251

RIVET

$

$

Not available

25

Toro 174380

Handle Pin

Note: Service Replacement Parts

$

$

Currently unavailable

26

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Service Replacement Parts

$1.49

$

Usually ships in 3-6 days

0

27

Toro 49-0120

LOWER HANDLE ASSEMBLY

$

$

Not available

28

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

29

Toro 2412-50

FITTING-RING

$9.99

$

Usually ships in 3-6 days

0

30

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

32

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, only 2 left!

0

33

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

34

Toro 46-8080

Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

35

Rope-Starter

Note: Obtain from your local Tecumseh dealer

$

$

Not available
