16771 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

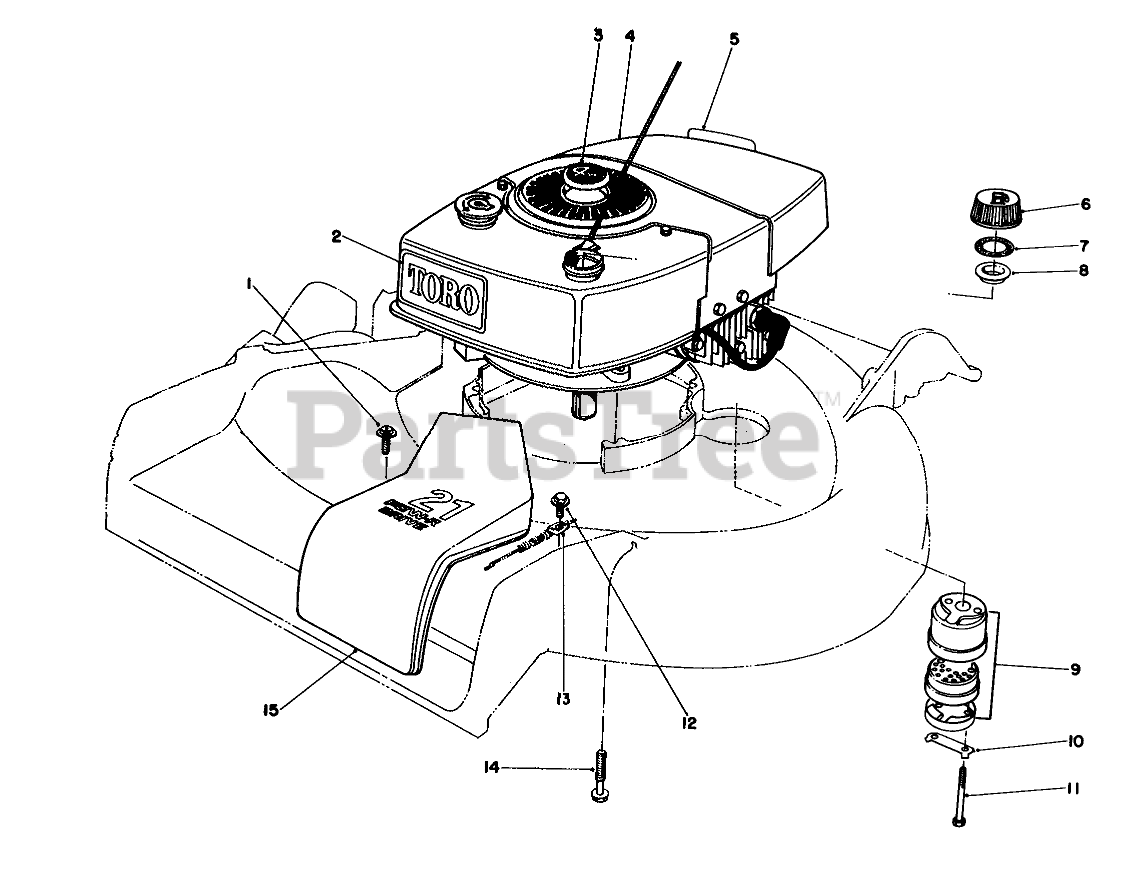

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 12-5450

SCREW

$10.99

$

In Stock, only 2 left!

0

2

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

3

Toro 38-1480

PLUG BUTTON

$16.99

$

In Stock, only 1 left!

0

4

Toro 221-731

Engine

$

$

Currently unavailable

5

Toro 37-1580

Decal-Maintenan

$

$

Not available

6

Toro 27-7872

Gas Cap Assembly (Incl. Ref. #7 & 8)
(Superseded to 42-0682)

$

$

Not available

7

Toro 2210-144

GASKET

$10.99

$

Usually ships in 3-6 days

0

8

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

9

Toro 5-4769

Muffler Assembly (Incl. #10 & 11)

$65.99

$

Usually ships in 3-6 days

0

10

Toro 3-5094

CLIP - LOCKING

$12.99

$

Usually ships in 3-6 days

0

11

Toro 321-23

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

12

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, only 3 left!

0

13

Toro 46-5610

Cable Clamp
(Superseded to 62-3720)

$2.99

$

In Stock, only 3 left!

0

14

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

15

Toro 464780

Cover-Belt

$

$

Currently unavailable

Toro 11-3459

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
