16770 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

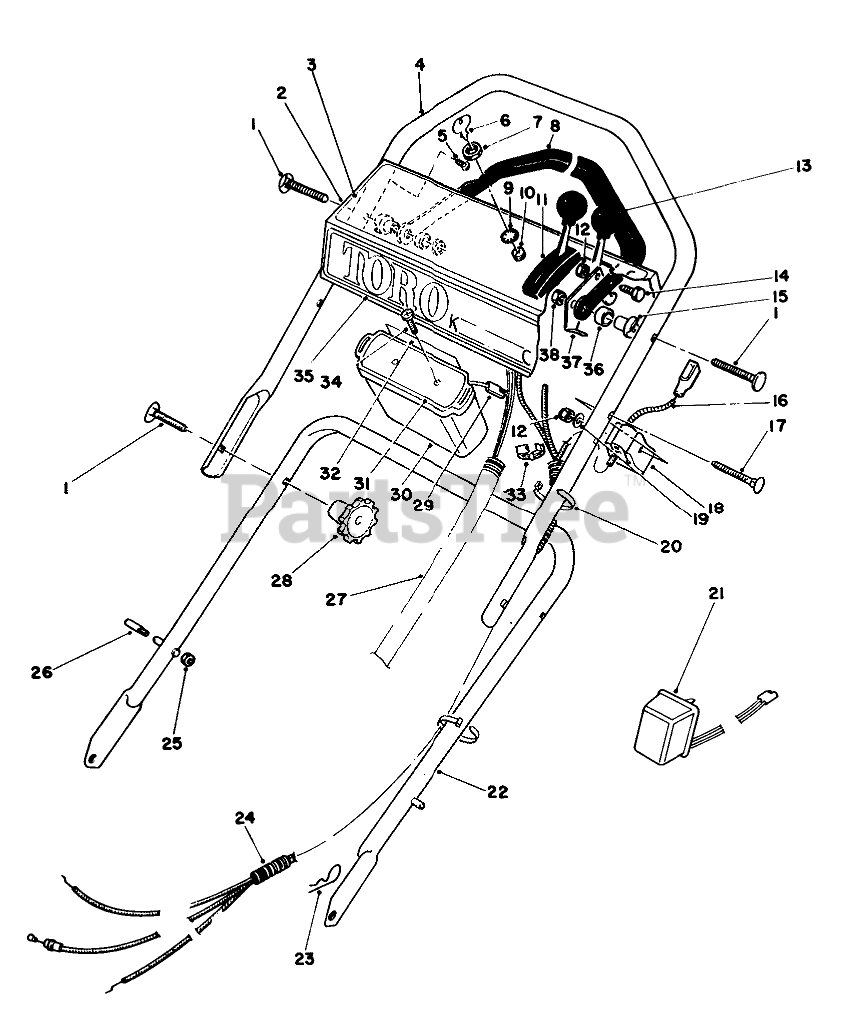

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 5

0

2

Toro 11-7029

Control Panel (Incl. Ref. #3)

$

$

Not available

3

Toro 46-7430

INSTRUCTION DECAL

$

$

Not available

4

Toro 46-5411

Handle-Upper
(Superseded to 84-8332)

$

$

Not available

5

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

7

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

8

Toro 46-5560

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

9

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

10

Toro 46-5780

Switch-Starter (Incl. Ref. #7 & 9)

$29.99

$

In Stock, only 1 left!

0

11

Toro 46-6040

SERVICE TRACT. CONTROL

$

$

Not available

12

Toro 329642

Nut

$

$

Currently unavailable

13

Toro 46-6010

SERVICE THROTTLE CONTRO

$72.99

$

Usually ships in 3-6 days

0

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

16

Toro 434531

Brake Cable

$

$

Currently unavailable

17

Toro 46-6432

SCREW-HANDLE

$14.99

$

Usually ships in 3-6 days

0

18

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

21

Toro 6-9780

Charger
(Superseded to 131-0848)

$78.99

$

Usually ships in 3-6 days

0

22

Toro 49-1690

LOWER HANDLE ASM

$173.99

$

Usually ships in 3-6 days

0

23

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

24

Toro 46-6441

CONT. CABLE COVER

$

$

Not available

25

Toro 329647

Locknut

Note: Service Replacement Parts

$

$

Currently unavailable

26

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts

$36.99

$

Usually ships in 3-6 days

0

27

Toro 46-5810

WIRE HARNESS

$186.99

$

Usually ships in 3-6 days

0

28

Toro 194050

Horn

$

$

Currently unavailable

29

Toro 48-2070

LEAD WIRE ASM

$

$

Not available

30

Toro 39-0640

Battery Case

$

$

Not available

31

Toro 39-0630

BATTERY COVER

$

$

Not available

32

Toro 36-5380

Decal

$

$

Not available

33

Toro 2412-50

FITTING-RING

$9.99

$

Usually ships in 3-6 days

0

34

Toro 32104-129

Screw

$

$

Not available

35

Toro 46-8460

Decal-Toro

$

$

Not available

36

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

37

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$13.99

$

Usually ships in 3-6 days

0

38

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

Toro 38-4180

Battery Pack Assembly (Incl. Ref. #29-32 & 34)
(Superseded to 99-5262)

Note: Not illustrated

$

$

Not available
