16770 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

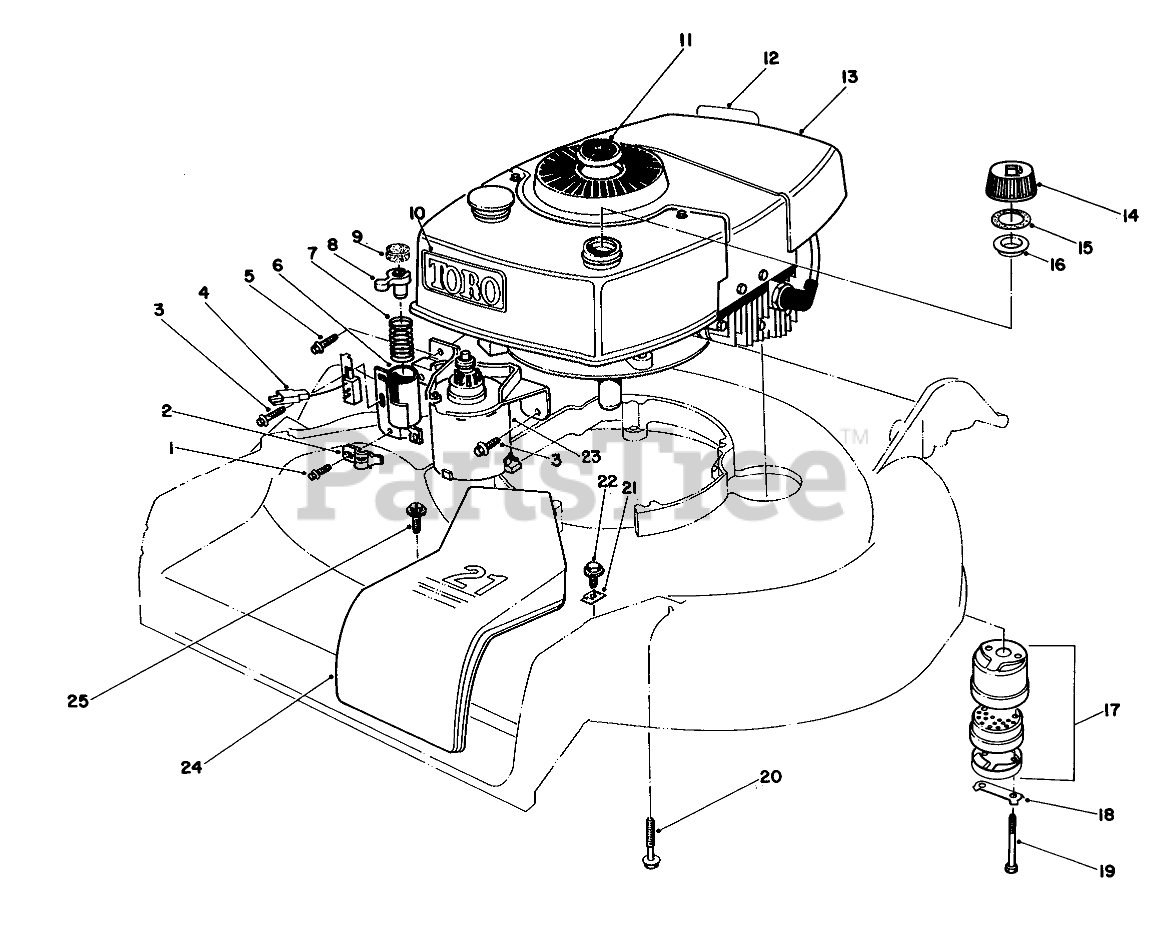

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

2

Toro 46-6530

CABLE CLAMP

$

$

Not available

3

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

4

Toro 47-6530

PUSH BUTTON SWITCH

$

$

Not available

5

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

6

Toro 46-5840

TUBE W A

$

$

Not available

7

Toro 47-2180

COMPRESSION SPRING

$

$

Not available

8

Toro 46-5820

Plunger
(Superseded to 47-7350)

$

$

Not available

9

Toro 43-4670

Pad-Friction
(Superseded to 47-7350)

$

$

Not available

10

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

11

Toro 38-1480

PLUG BUTTON

$16.99

$

In Stock, only 1 left!

0

12

Toro 37-1580

Decal-Maintenan

$

$

Not available

13

Toro 221-730

Engine

$

$

Currently unavailable

14

Toro 27-7872

Gas Cap Assembly (Incl. Ref. #15 & 16)
(Superseded to 42-0682)

$

$

Not available

15

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

16

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

17

Toro 5-4769

Muffler Assembly (Incl. Ref. #18 & 19)

$62.99

$

Usually ships in 3-6 days

0

18

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

19

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

20

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

21

Toro 46-5610

Cable Clamp
(Superseded to 62-3720)

$2.99

$

In Stock, only 3 left!

0

22

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

23

Toro 46-5710

Starter Motor

$

$

Not available

24

Toro 46-4780

BELT COVER 21" S D

$

$

Not available

25

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0
