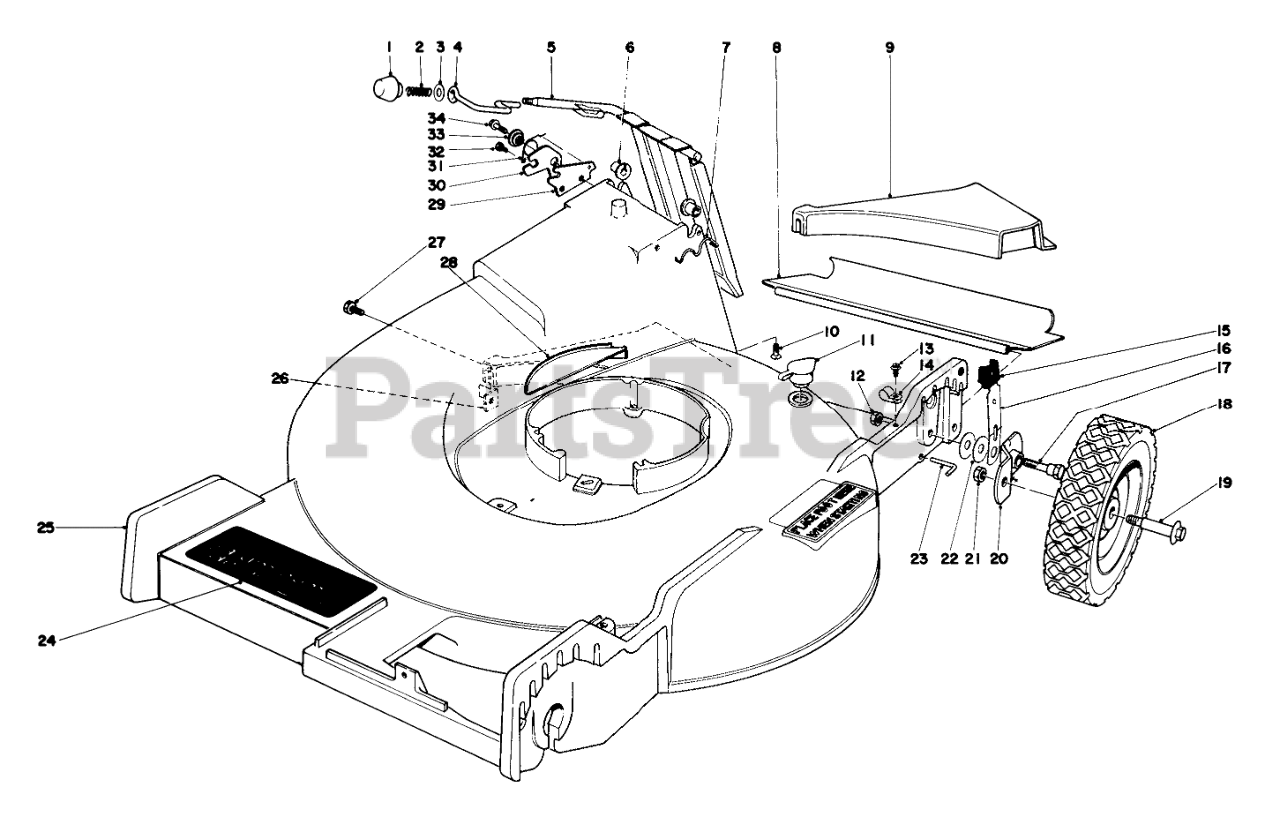

16756 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title
1

$31.99

$

Usually ships in 3-6 days

0

2

Toro 23-0920

COMPRESSION SPRING

$8.99

$

Usually ships in 3-6 days

0

3

Toro 23-1120

WASHER

$9.99

$

Usually ships in 3-6 days

0

4

Toro 23-0940

DOOR LATCH

$

$

Not available

5

Toro 27-7910

Door Handle

$

$

Not available

6

Toro 23-0880

BUSHING-NYLON

$

$

Not available

7

Toro 23-0200

Door Retainer
(Superseded to 33-4830)

$

$

Not available

8

Toro 23-0560

REAR SAFETY SHIELD

$

$

Not available

9

Toro 28-6570

Insert Rear

$

$

Currently unavailable

10

Toro 32144-17

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

11

Toro 6-4500

WASHOUT PLUG

$

$

Not available

12

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

13

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

14

Toro 2412-52

CLAMP-NYLON

$

$

Not available

15

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

16

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

17

Toro 25-3440

PIVOT SCREW

$

$

Not available

18

Toro 12-2620

Wheel Assembly
(Superseded to 99-5256)

$

$

Not available

19

$

$

Not available

20

Toro 24-7710

PIVOT ARM ASM A

$147.99

$

Usually ships in 3-6 days

0

Toro 23-9120

PIVOT ARM ASM B

Note: Not illustrated

$

$

Not available

21

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

22

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

23

Toro 33-3202

ROD-SHIELD

$7.99

$

In Stock, only 1 left!

0

24

Toro 28-5050

Decal-Front Housing SP

$

$

Currently unavailable

25

Toro 25-9991

Housing

$

$

Not available

26

Toro 26-0660

SPECIAL NUT

$

$

Not available

27

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

28

Toro 27-7470

HOUSING CAP

$

$

Not available

29

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

30

Toro 23-1190

Latch Safety
(Superseded to 42-4010)

$

$

Not available

31

Toro 23-1200

TORSION SPRING

$

$

Not available

32

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

33

Toro 23-1180

Latch Spacer

$

$

Not available

34

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

Toro 26-9510

Replacement Stud Kit

Note: Not illustrated

$

$

Not available

Toro 6-8949

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
