16756 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) FRONT WHEEL AND PIVOT ARM ASSEMBLY Parts Diagram

Walk-Behind Mower

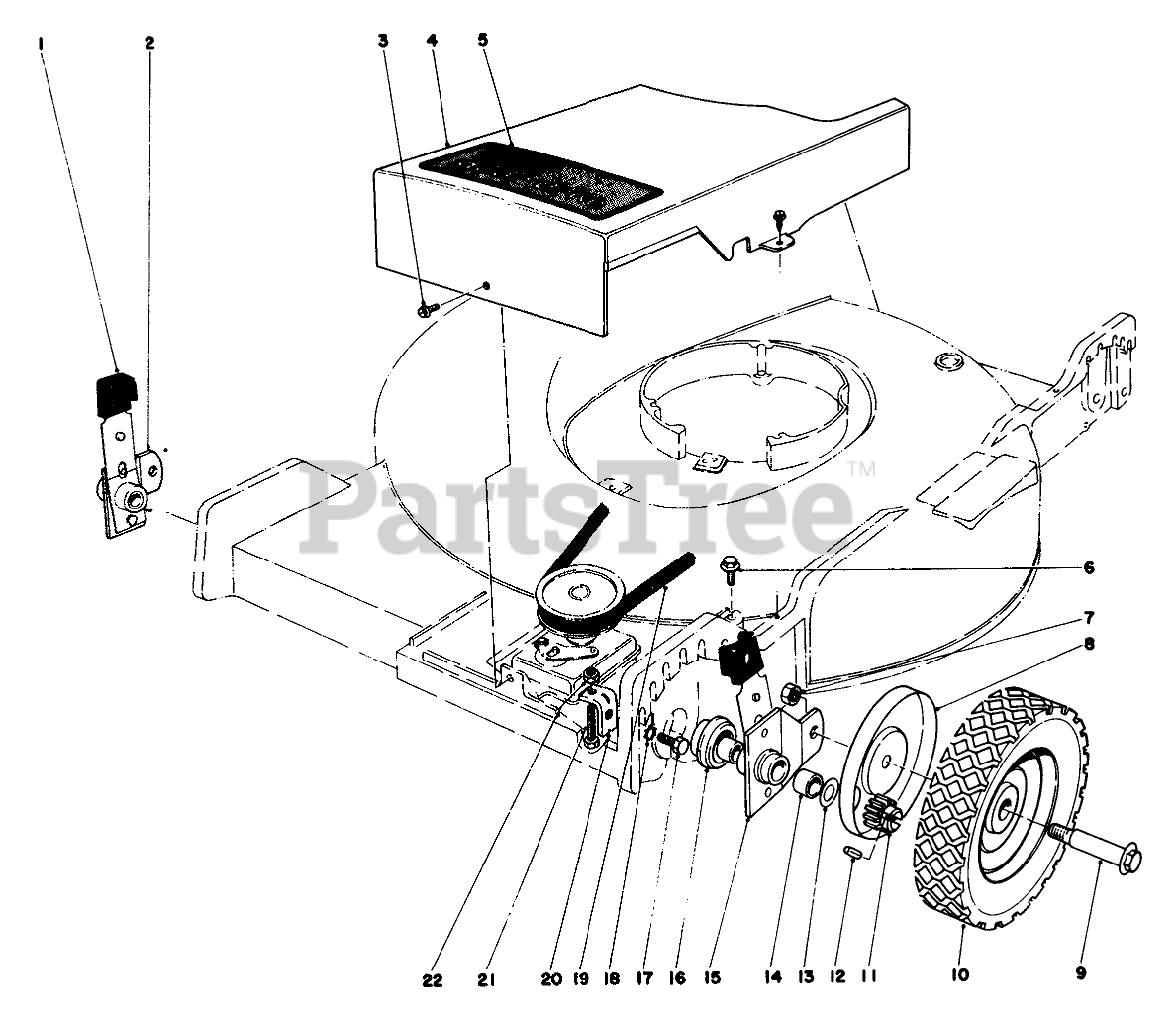

FRONT WHEEL AND PIVOT ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

2

Toro 25-8190

Pivot Arm (Incl. Ref. #14)

$

$

Not available

3

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

4

Toro 28-6840

Belt-Cover
(Superseded to 28-6240)

$

$

Not available

5

Toro 28-5060

Decal Belt Cover

$

$

Currently unavailable

6

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

7

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

8

Toro 23-0280

WHEEL COVER

$

$

Not available

9

Toro 3-2652

Bolt

$

$

Not available

10

Toro 12-2610

Wheel & Tire
(Superseded to 11-1279)

$

$

Not available

11

Toro 18-9690

Pinion
(Superseded to 99-2532)

$15.99

$

Usually ships in 3-6 days

0

12

Toro 3284-3

PIN-GROOVED

$2.99

$

In Stock, Qty 12

0

13

Toro 18-9810

WASHER-THRUST

$9.99

$

In Stock, only 2 left!

0

14

Toro 256-206

BUSHING

$1.99

$

In Stock, only 2 left!

0

15

Toro 25-8180

Pivot Arm (Incl. Ref . #14)

$147.99

$

Usually ships in 3-6 days

0

16

Toro 23-0380

End Cap
(Superseded to 36-9040)

$11.99

$

In Stock, only 1 left!

0

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

19

Toro 24-9730

V-BELT

$23.99

$

Usually ships in 3-6 days

0

20

Toro 25-7560

Bracket-Gear Box

$

$

Not available

21

Toro 3-7281

SCREW

$

$

Not available

22

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0
