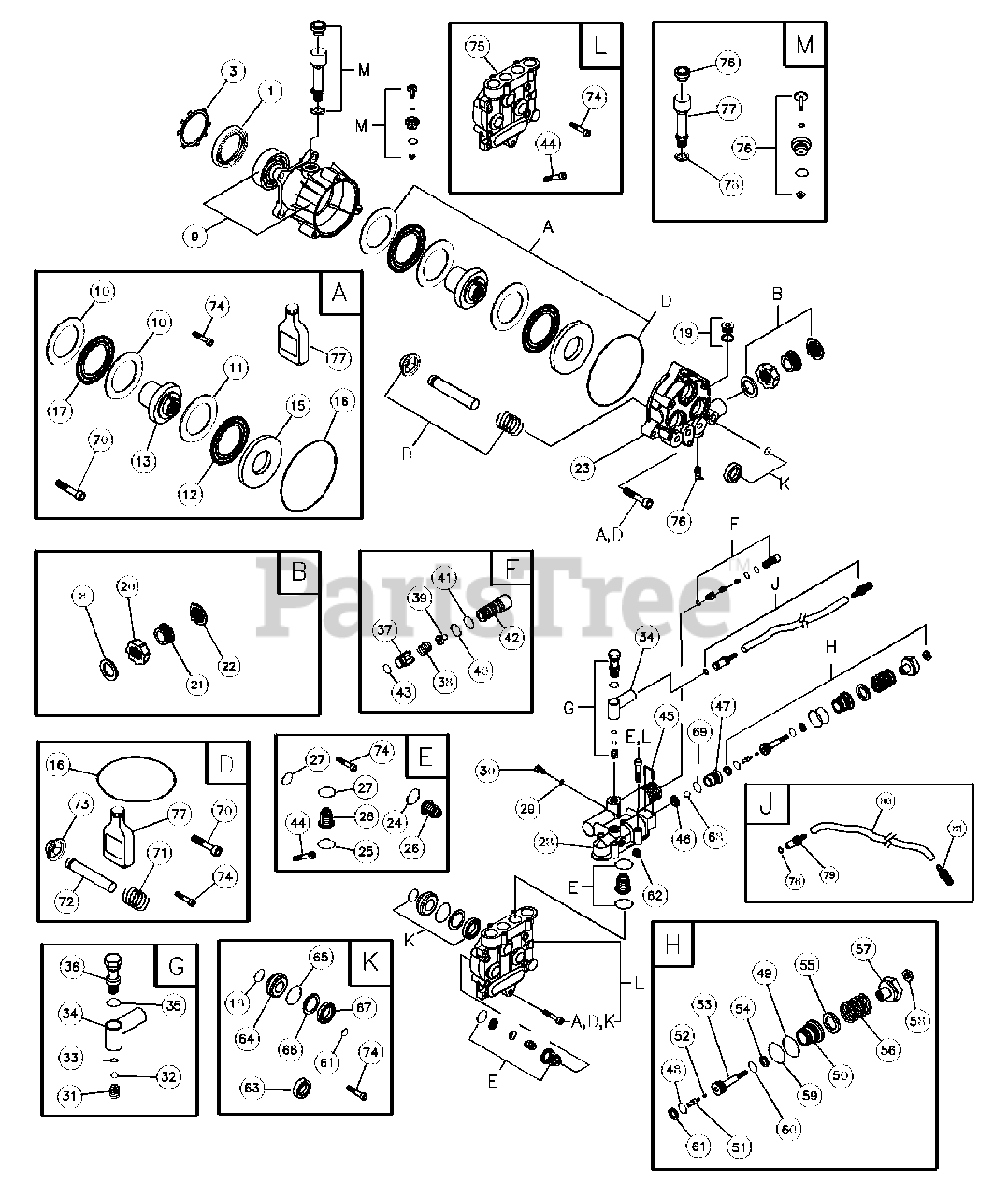

1674-0 - Generac 2,300 PSI Pressure Washer Pump Parts Diagram

2,300 PSI Pressure Washer

Pump Parts Diagram

  • Title

1

Briggs & Stratton 190568GS

SEAL

$59.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 190569GS

RETAINER RING

$4.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 190671GS

ENGINE ADAPTER & BEARING

$176.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 190571GS

CAP, Oil

$

$

Not available

23

Briggs & Stratton 190573GS

PISTON HOUSING

$

$

Not available

28

Briggs & Stratton 190673GS

MANIFOLD

$

$

Not available

29

Briggs & Stratton 190575GS

O-RING
(Superseded to 193971GS)

$7.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 190576GS

SCREW, Venturi
(Superseded to 193971GS)

$7.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 190577GS

CONNECTION, Chemical Inlet

$6.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 190578GS

PIN

$

$

Not available

46

Briggs & Stratton 190579GS

VALVE, Seat Plate Brass
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

47

Briggs & Stratton 190580GS

VALVE, Seat Stainless
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

62

Briggs & Stratton 190581GS

CAP

$7.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 190582GS

BALL, Stainless Steal
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

69

Briggs & Stratton 190584GS

O-RING
(Superseded to 193972GS)

$62.99

$

In Stock, only 1 left!

0

76

Briggs & Stratton 21783GS

THERMAL RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

77

Briggs & Stratton 190585GS

OIL BOTTLE

$15.99

$

In Stock, only 3 left!

0

A

Briggs & Stratton 190672GS

KIT, WOBBLE PLATE BEARING

Note: Item is a service kit and includes all parts shown within the box.

$166.99

$

Usually ships in 2-12 days

0

10

FLAT BEARING DISC

$

$

Not available

11

FLAT BEARING DISC

$

$

Not available

12

ROLLER BEARING

$

$

Not available

13

WOBBLE PLATE, Sleeve & Cap

$

$

Not available

15

BEARING DISC

$

$

Not available

16

O-RING

$

$

Not available

17

ROLLER BEARING

$

$

Not available

70

SCREW

$

$

Not available

74

SCREW

$

$

Not available

77

OIL BOTTLE

$

$

Not available

B

Briggs & Stratton 190670GS

KIT, WATER INLET

Note: Item is a service kit and includes all parts shown within the box.

$40.99

$

Usually ships in 2-12 days

0

8

WASHER

$

$

Not available

20

GARDEN HOSE w/ FINGER GRIP

$

$

Not available

21

NIPPLE, Garden Hose

$

$

Not available

22

WASHER w/ FILTER

$

$

Not available

D

Briggs & Stratton 190590GS

KIT, PISTON

Note: Item is a service kit and includes all parts shown within the box.

$93.99

$

Usually ships in 2-12 days

0

16

O-RING

$

$

Not available

70

SCREW

$

$

Not available

71

SPRING

$

$

Not available

72

PISTON, Stainless Steel

$

$

Not available

73

SPRING PLATE

$

$

Not available

74

SCREW

$

$

Not available

77

OIL BOTTLE

$

$

Not available

E

Briggs & Stratton 190591GS

KIT, CHECK VALVES

Note: Item is a service kit and includes all parts shown within the box.

$40.99

$

In Stock, Qty 5

0

24

O-RING

$

$

Not available

25

O-RING

$

$

Not available

26

ASSY., Check Valve

$

$

Not available

27

O-RING

$

$

Not available

44

SCREW

$

$

Not available

74

SCREW

$

$

Not available

F

Briggs & Stratton 190592GS

KIT, INLET CHECK

Note: Item is a service kit and includes all parts shown within the box.

$20.99

$

In Stock, Qty 6

0

37

VALVE, Non-Return

$

$

Not available

38

SPRING

$

$

Not available

39

INJECTION NOZZLE

$

$

Not available

40

O-RING

$

$

Not available

41

O-RING

$

$

Not available

42

INJECTION NIPPLE

$

$

Not available

43

O-RING

$

$

Not available

G

Briggs & Stratton 190593GS

KIT, CHEMICAL INJECTION

Note: Item is a service kit and includes all parts shown within the box.

$

$

Not available

31

SPRING

$

$

Not available

32

BALL

$

$

Not available

33

O-RING

$

$

Not available

34

CONNECTION, Chemical Inlet

$

$

Not available

35

O-RING

$

$

Not available

36

SCREW, Fixing

$

$

Not available

H

Briggs & Stratton 190594GS

KIT, UNLOADER

Note: Item is a service kit and includes all parts shown within the box.

$

$

Not available

48

BACK RING

$

$

Not available

49

O-RING

$

$

Not available

50

VALVE, By Pass, Brass

$

$

Not available

51

PISTON

$

$

Not available

52

SPRING, Easy Start

$

$

Not available

53

PISTON, Body

$

$

Not available

54

RING, Back

$

$

Not available

55

SPACER

$

$

Not available

56

SPRING, Regulation Press

$

$

Not available

57

NUT, Regulation Press

$

$

Not available

58

NUT

$

$

Not available

59

O-RING

$

$

Not available

60

O-RING

$

$

Not available

61

O-RING

$

$

Not available

J

Briggs & Stratton 189971GS

KIT, CHEMICAL HOSE

Note: Item is a service kit and includes all parts shown within the box.

$

$

Not available

78

O-RING

$

$

Not available

79

TUBE, Inlet Support

$

$

Not available

80

TUBE, Chemical

$

$

Not available

81

FILTER

$

$

Not available

K

Briggs & Stratton 190595GS

KIT, SEAL SET

Note: Item is a service kit and includes all parts shown within the box.

$96.99

$

Usually ships in 2-12 days

0

18

O-RING

$

$

Not available

61

O-RING

$

$

Not available

63

SEAL

$

$

Not available

64

PILOT SPACER, Brass

Note: Item is a service kit and includes all parts shown within the box.

$

$

Not available

65

O-RING

$

$

Not available

66

WASHER

$

$

Not available

67

SEAL, H.P

$

$

Not available

74

SCREW

$

$

Not available

L

Briggs & Stratton 190596GS

KIT, HEAD BRASS

Note: Item is a service kit and includes all parts shown within the box.

$163.99

$

Usually ships in 2-12 days

0

44

SCREW

$

$

Not available

74

SCREW

$

$

Not available

75

HEAD, Pump

$

$

Not available

M

Briggs & Stratton 190669GS

KIT, BREATHER TUBE

Note: Item is a service kit and includes all parts shown within the box.

$47.99

$

Usually ships in 2-12 days

0

76

VENT VALVE, Oil Cap

$

$

Not available

77

EXTENTION, Oil

$

$

Not available

78

WASHER

$

$

Not available
