1674-0 - Generac 2,300 PSI Pressure Washer Main Unit Parts Diagram

2,300 PSI Pressure Washer

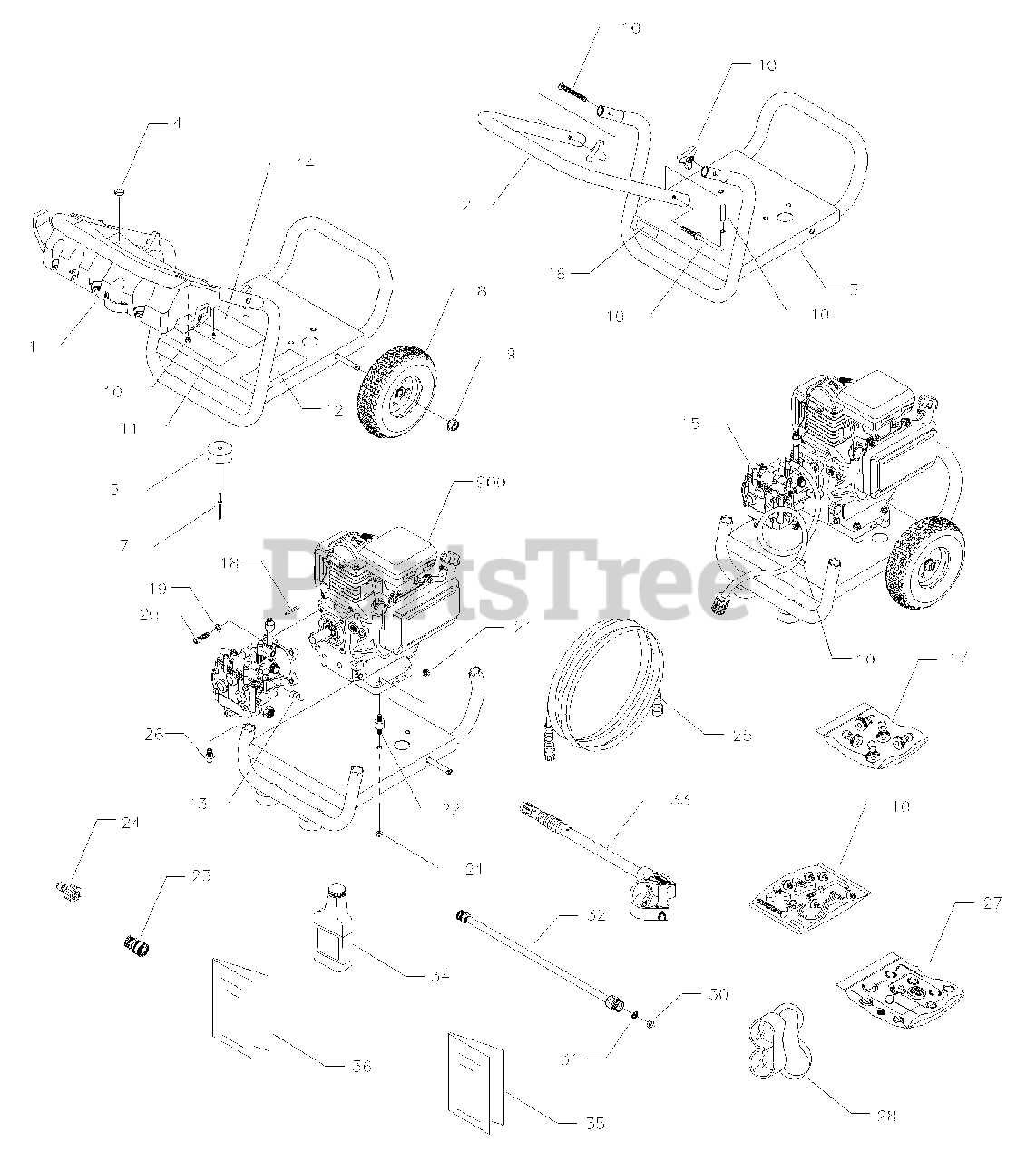

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 190153GS

DECALS/BILLBOARD, 1675-0

$

$

Not available

2

Briggs & Stratton A187602GS

HANDLE, Powder Coat Red

$65.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton A190156GS

BASE
(Superseded to P190156GS)

$

$

Not available

4

Briggs & Stratton 30809GS

GROMMET, Rubber

$4.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 191413GS

MOUNT, Vibe

$6.49

$

In Stock, Qty 9

0

7

Briggs & Stratton 188194GS

RIVET, Blind

$

$

Not available

8

Briggs & Stratton B4966GS

ASSY, Wheel
(Superseded to 209636GS)

$93.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 190147GS

NUT, Push
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

10

Briggs & Stratton 191429GS

KIT, HNDL, FSTNNG, SRV

$24.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187918GS

DECAL, Quick Reference

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 187916GS

DECAL, Start Instructions

$1.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 190537GS

CAP, Black Vinyl

$4.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 187915GS

DECAL, Warning/Danger

$14.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 190151GS

ASSY, Pump
(Superseded to 317054GS)

Note: (See "Pump" illustration and parts list)

$457.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 187952GS

DECAL, Cool Down

$8.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 186301GS

KIT, Nozzle

$71.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 23139DGS

KEY

$4.49

$

In Stock, only 1 left!

0

19

Briggs & Stratton 92479GS

WASHER, Lock

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 23707GS

SCREW

$3.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 9

0

22

Briggs & Stratton 21217GS

MOUNT, Rubber Shock

$7.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 95518GS

QUICK CONNECT, Wand/Acc
(Superseded to 312981GS)

$39.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 95519GS

QUICK CONNECT, Wand End
(Superseded to 312981GS)

$39.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 190249GS

HOSE
(Superseded to 708962)

$

$

Not available

26

Briggs & Stratton 21783GS

VALVE, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

27

Briggs & Stratton 190862GS

KIT, Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, Qty 20+

0

28

Briggs & Stratton 87815GS

GOGGLES, Safety

$12.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 97837GS

O-RING, Hi Pressure

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B4224GS

SCREEN, Gun Inlet

$

$

Not available

32

Briggs & Stratton B3858GS

EXTENSION

$

$

Not available

33

Briggs & Stratton 190049GS

GUN, High Pressure
(Superseded to 704312)

$93.99

$

In Stock, Qty 7

0

34

Briggs & Stratton BB3061BGS

OIL
(Superseded to 100005)

$8.99

$

In Stock, Qty 20+

0

35

Briggs & Stratton 190164GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B3294GS

MANUAL, Engine

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable
