16711 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) GRASS BAG ASSEMBLY Parts Diagram

Walk-Behind Mower

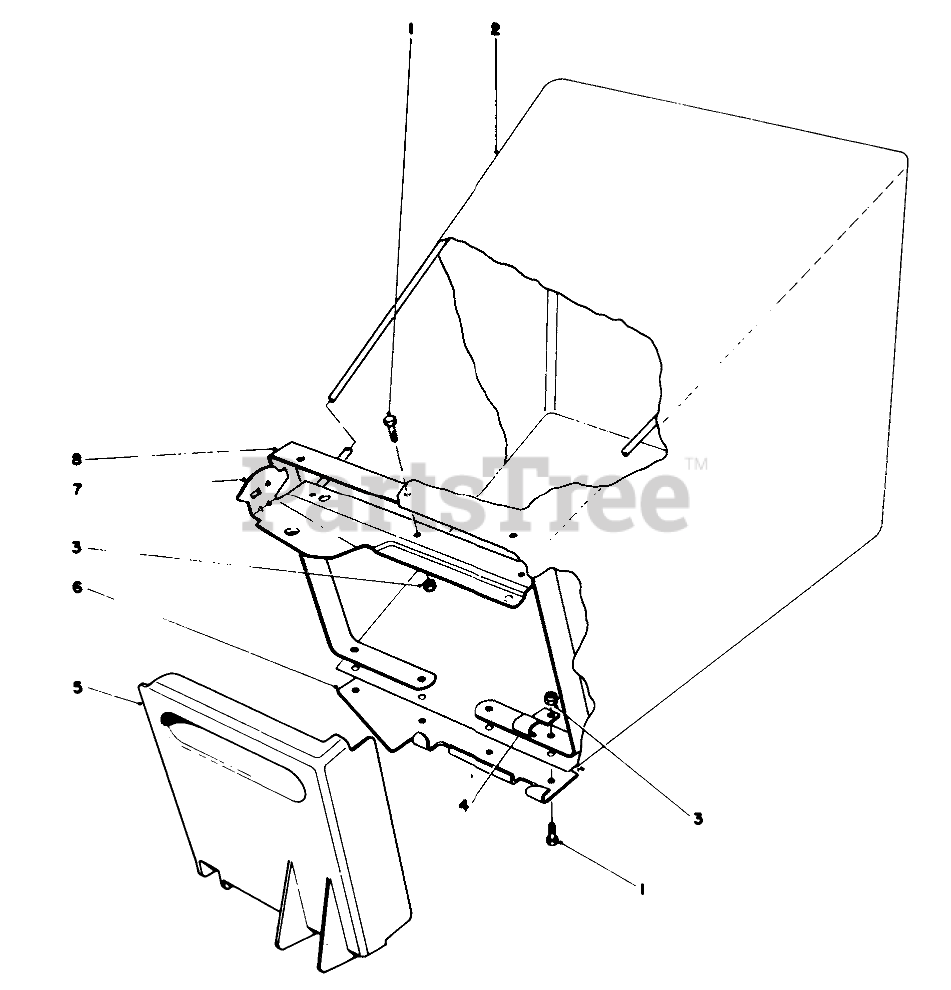

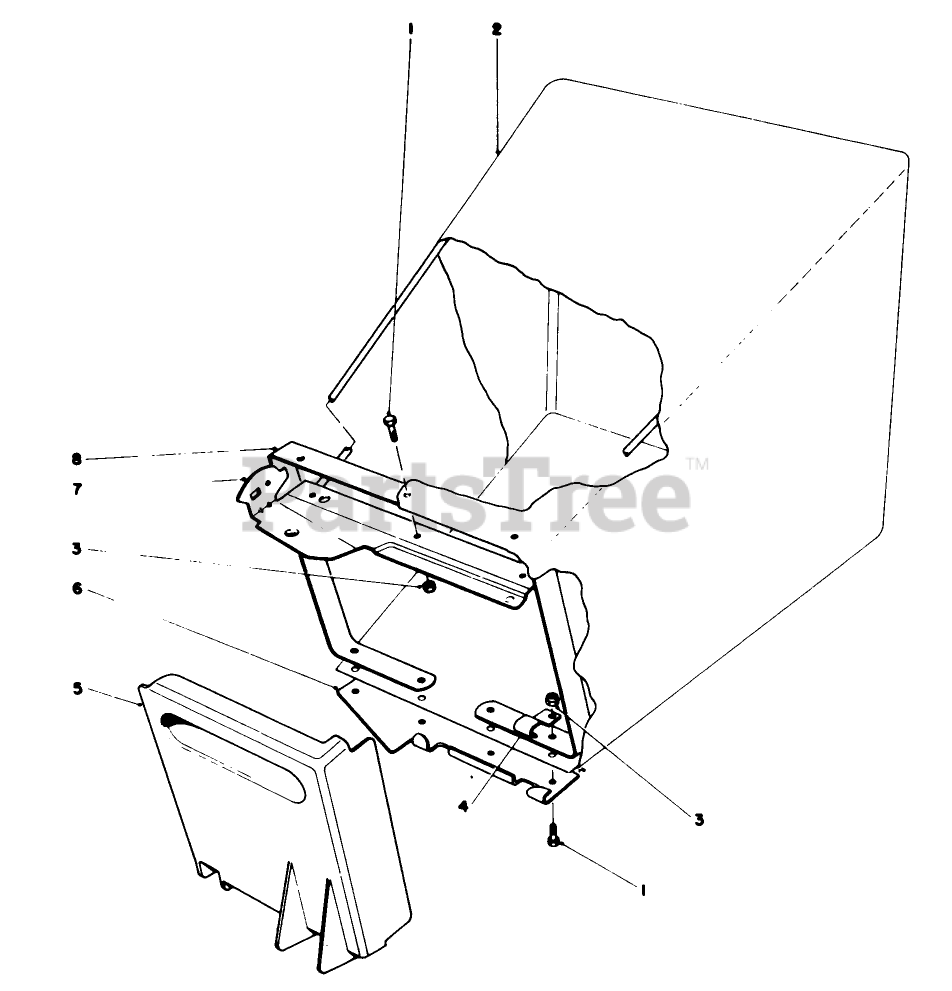

GRASS BAG ASSEMBLY Parts Diagram

  • Title
1

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

2

Toro 6-8769

Grass Bag Assembly
(Superseded to 6-1389)

$

$

Not available

3

Toro 3290-419

NUT/WASHER

$

$

Not available

4

Toro 23-5100

SUPPORT BRACKET

$

$

Not available

5

Toro 28-6860

Bag Door
(Superseded to 23-1140)

$181.99

$

Usually ships in 3-6 days

0

6

Toro 23-1150

DOOR BRACKET

$

$

Not available

7

Toro 27-81

70 Bag F rame

$

$

Currently unavailable

8

Toro 23-1110

LOWER BAG FRAME

$128.99

$

Usually ships in 3-6 days

0
