16711 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1977) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

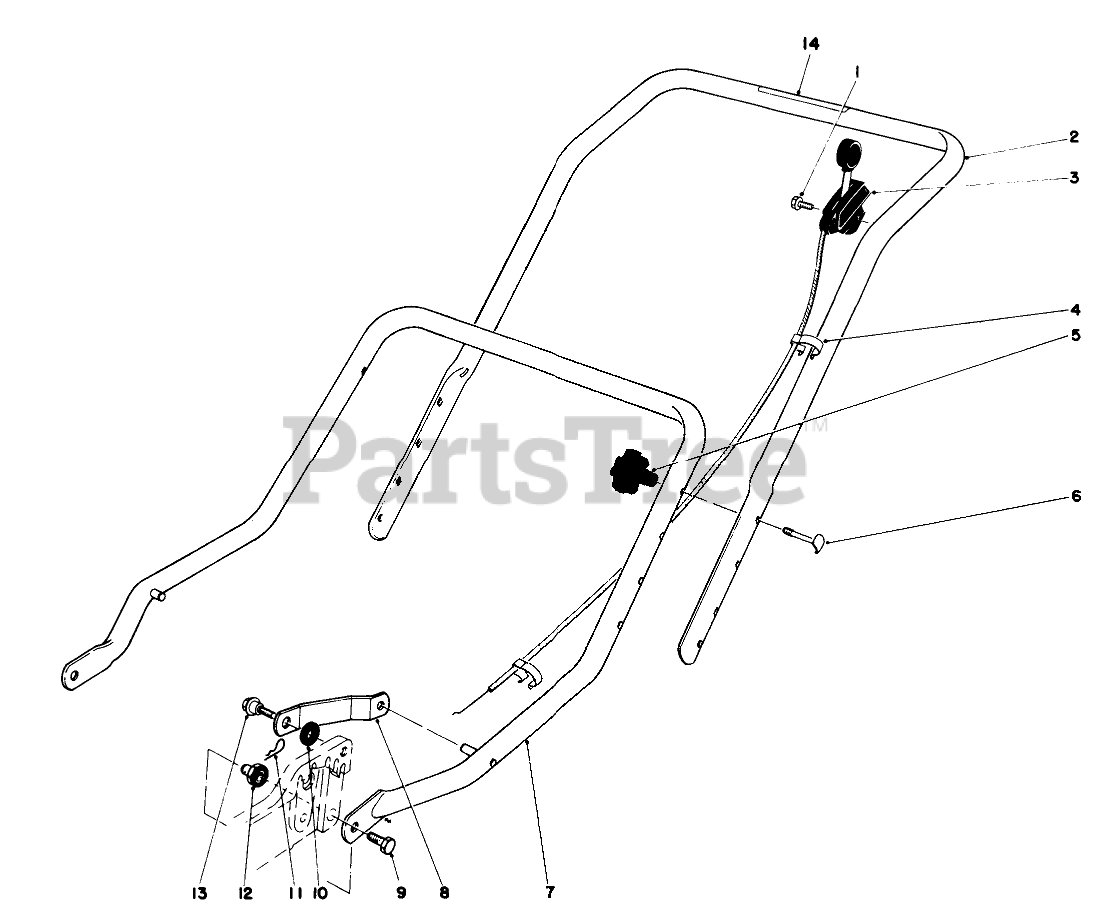

HANDLE ASSEMBLY Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Toro 28-5430

Upper Handle

$

$

Not available

3

Toro 28-6170

Throttle Control
(Superseded to 46-6000)

$50.99

$

Usually ships in 3-6 days

0

4

Toro 218-465

BOWDEN CLIP

$

$

Not available

5

$17.99

$

In Stock, only 2 left!

0

6

Toro 6-6330

HANDLE SCREW

$

$

Not available

7

Toro 26-0740

Lower Handle

$

$

Currently unavailable

8

Toro 26-0760

HANDLE LATCH

$

$

Not available

9

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

11

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

12

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

13

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

14

Toro 29-6290

Decal

$

$

Not available
