1669-0 - Generac 5,000 Watt Portable Generator Control Panel Parts Diagram

5,000 Watt Portable Generator

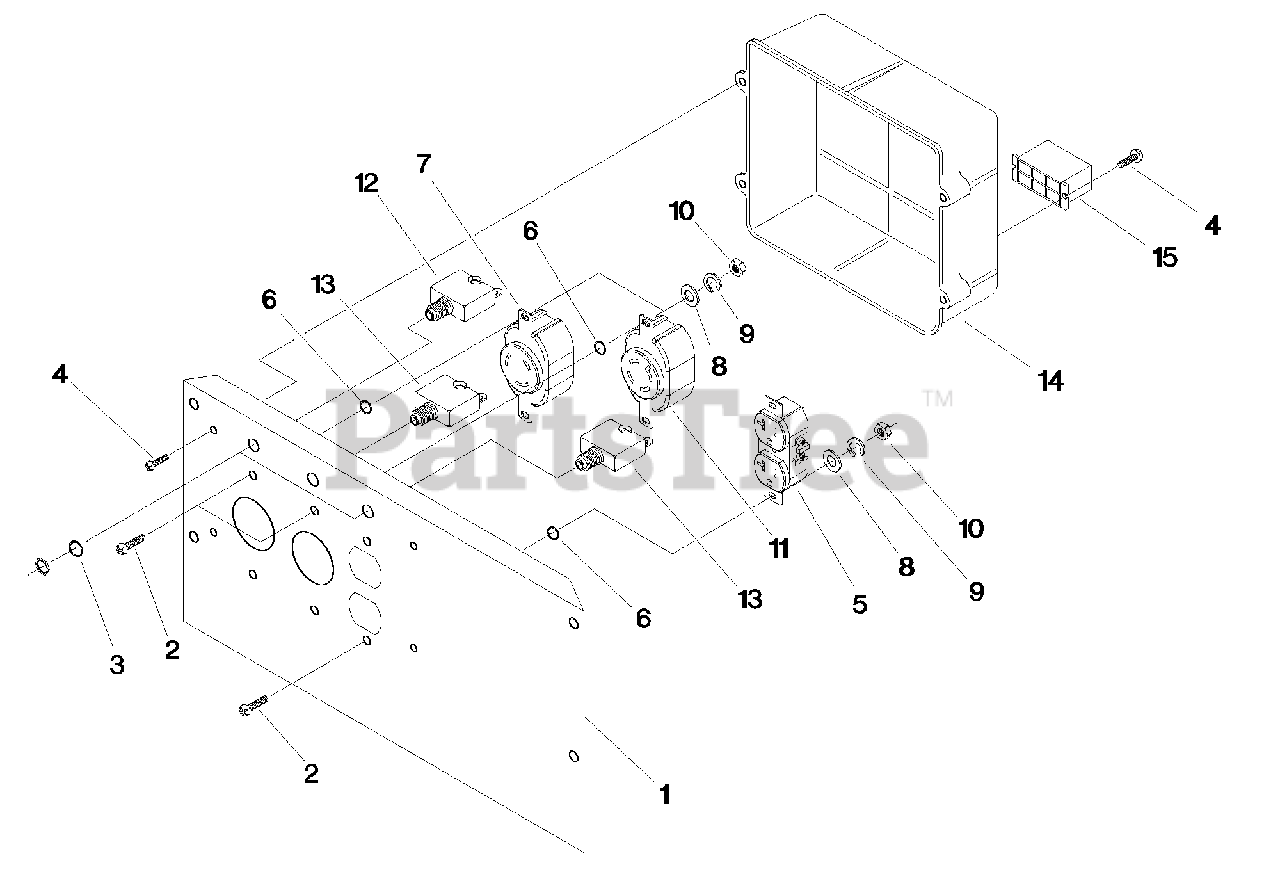

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton B81897GS

PANEL, Control

$

$

Not available

2

Briggs & Stratton 75475GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 82881GS

WASHER, Lock

$

$

Not available

4

Briggs & Stratton 82308GS

SCREW

$2.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 68759GS

OUTLET, 120V, 20A Duplex

$24.99

$

In Stock, only 4 left!

0

6

Briggs & Stratton 23365GS

WASHER, Lock

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 68868GS

RECEPTACLE, 120V, 30A Twistlock
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 38150GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22264GS

WASHER, Lock
(Superseded to 847333)

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 51715GS

NUT

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 68867GS

RECEPTACLE, 120/240V, 20A Twistlock

$46.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 75207AGS

BREAKER, Circuit, 30A
(Superseded to 706178)

$34.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 75207GS

BREAKER, Circuit, 20A
(Superseded to 209872GS)

$9.99

$

In Stock, only 4 left!

0

14

Briggs & Stratton 81919GS

PANEL, Control, Back, Plastic

$136.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22694GS

CONNECTOR, 6-Pin Female

$5.99

$

In Stock, only 2 left!

0
