16655 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1977) HOUSING AND ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

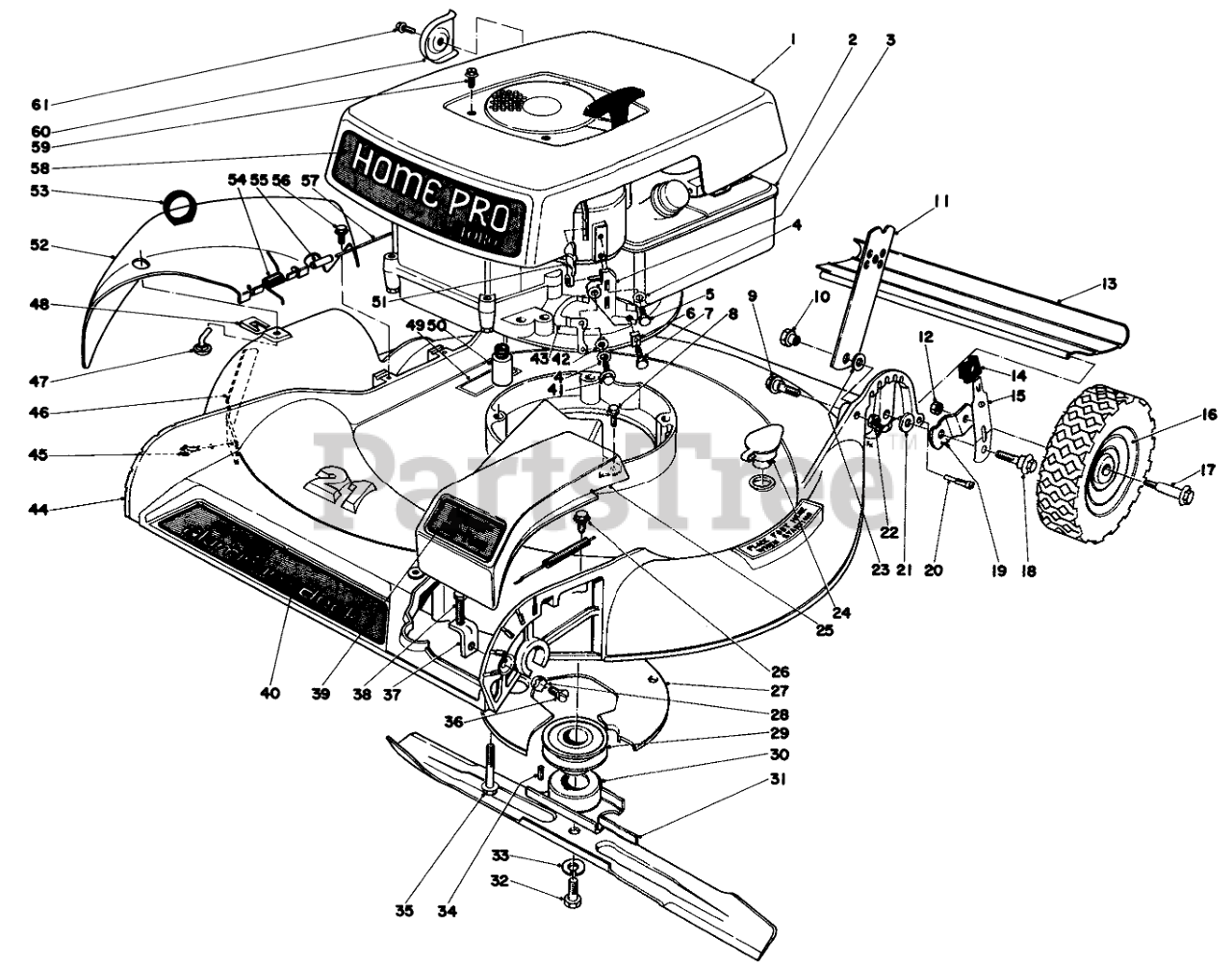

HOUSING AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 28-1340

Shroud

$

$

Not available

2

Toro 221-537

Engine

$

$

Currently unavailable

3

Toro 27-9280

CABLE & PIVOT BLOCK

$

$

Not available

4

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 32144-19

SCREW-SHWH

$1.49

$

Usually ships in 3-6 days

0

6

Toro 2412-38

Clip

$

$

Not available

7

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

8

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

9

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

10

Toro 27-6520

HANDLE PIVOT NUT

$9.99

$

Usually ships in 3-6 days

0

11

Toro 27-7080

HANDLE LATCH

$

$

Not available

12

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

13

Toro 28-3780

SHIELD - TRAILING

$

$

Not available

14

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

15

Toro 25-7890

SPRING ARM ASM

$

$

Not available

16

Toro 12-2620

Wheel Assembly
(Superseded to 99-5256)

$

$

Not available

17

Toro 3-2652

Bolt

$

$

Not available

18

Toro 12-2440

PIVOT SCREW

$21.99

$

In Stock, only 1 left!

0

19

Toro 20-3190

PIVOT ARM PLATED

$

$

Not available

20

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

21

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

22

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

23

Toro 27-6510

HANDLE LATCH SPACER

$5.49

$

Usually ships in 3-6 days

0

24

Toro 6-4500

WASHOUT PLUG

$

$

Not available

25

Toro 28-4610

Cover Belt Drive

$

$

Not available

26

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

27

Toro 19-4040

Grass Guard

$

$

Not available

28

Toro 3255-12

Lockwasher

$

$

Not available

29

Toro 23-0130

Pulley
(Superseded to 93-0278)

$49.99

$

Usually ships in 3-6 days

0

30

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$

$

Not available

31

Toro 8-5230

Blade
(Superseded to 8-5230-03)

$38.99

$

Usually ships in 3-6 days

0

32

Toro 3-5246

SPECIAL SCREW

$

$

Not available

33

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

34

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

35

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

36

Toro 32108-20

SCREW

$0.99

$

Usually ships in 3-6 days

0

37

Toro 25-7560

Bracket-Gear Box

$

$

Not available

38

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 28-4620

Decal Gear Drive

$

$

Not available

40

Toro 28-4630

Decal Deck

$

$

Not available

41

Toro 32144-20

SCREW-HHFTF

$2.99

$

In Stock, only 4 left!

0

42

Toro 25-0520

BUSHING

$32.99

$

Usually ships in 3-6 days

0

43

Toro 25-8150

CAM INTERLOCK

$

$

Not available

44

Toro 6-8149

Housing (Incl. Ref. #40 & 49)

$

$

Currently unavailable

45

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

46

Toro 12-2990

Bar Safety

$

$

Not available

47

Toro 28-3260

BAG CHUTE PIN

$

$

Not available

48

Toro 28-3250

BAG CHUTE CLIP PIN

$

$

Not available

49

Toro 28-6920

Decal Warning

$

$

Currently unavailable

50

Toro 19-4030

OIL DRAIN EXTENSION

$

$

Not available

51

Toro 25-0350

INTERLOCK LEVER

$

$

Not available

52

Toro 28-1440

Deflector

$

$

Not available

53

Toro 28-1430

LIFT LOOP

$

$

Not available

54

Toro 28-1560

TORSION SPRING

$

$

Not available

55

Toro 28-3270

SLEEVE

$

$

Not available

56

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

57

Toro 3-2644

HINGE PIN

$

$

Not available

58

Toro 28-4650

Decal Shroud

$

$

Not available

59

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

60

Toro 2210-129

Deflector

$

$

Not available

61

Toro 2210-128

Screw
(Superseded to 2210-173)

$

$

Not available

Toro 19-5790

Drain Plug Wrench

Note: Not illustrated

$

$

Not available

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0
