16600 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1977) HOUSING AND ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

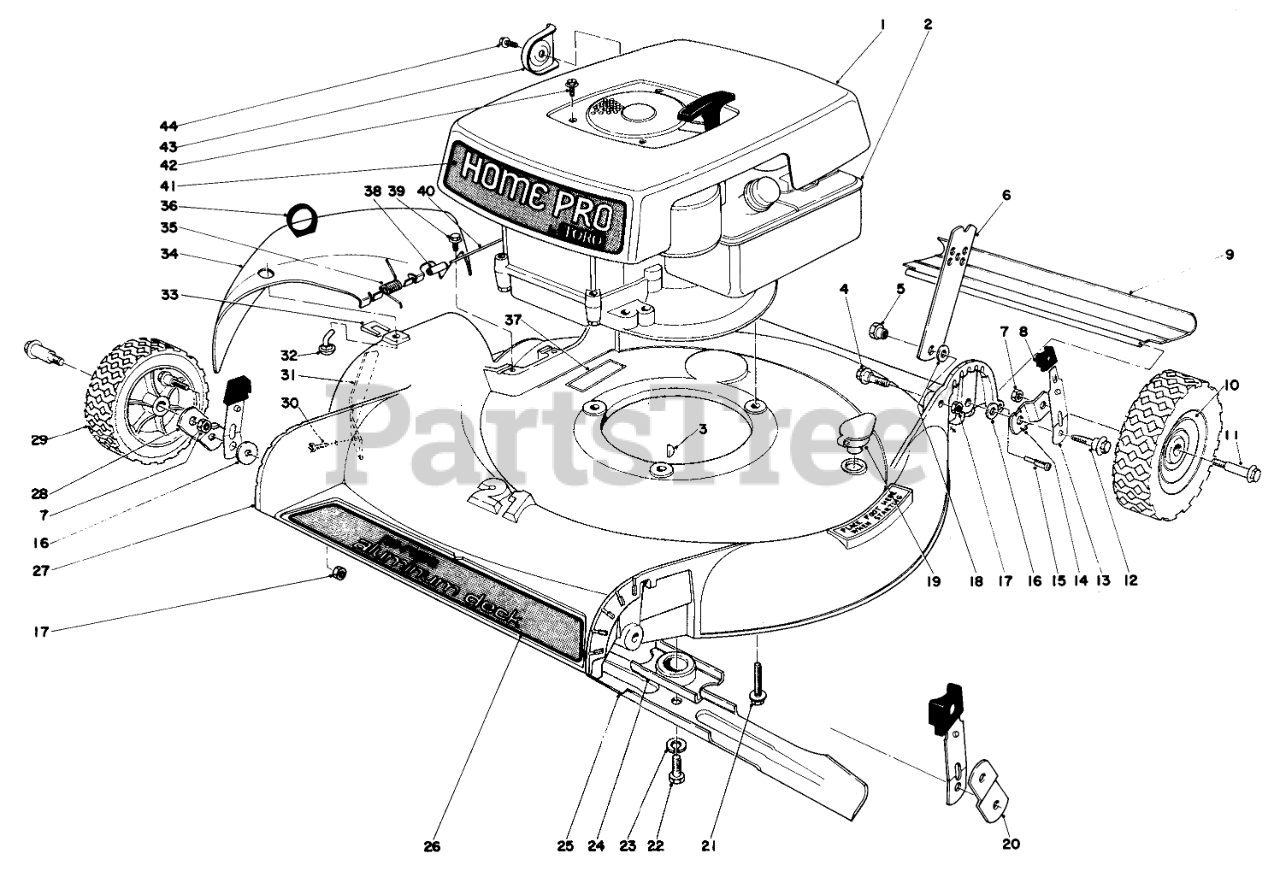

HOUSING AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 28-1340

Shroud

$

$

Not available

2

Toro 221-548

Engine

$

$

Currently unavailable

3

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

4

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

5

Toro 27-6520

HANDLE PIVOT NUT

$9.99

$

Usually ships in 3-6 days

0

6

Toro 27-7080

HANDLE LATCH

$

$

Not available

7

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

8

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

9

Toro 28-3780

SHIELD - TRAILING

$

$

Not available

10

Toro 10-9680

WHEEL ASM 8

$

$

Not available

11

Toro 3-2652

Bolt

$

$

Not available

12

Toro 12-2440

PIVOT SCREW

$21.99

$

In Stock, only 1 left!

0

13

Toro 25-7890

SPRING ARM ASM

$

$

Not available

14

Toro 20-3190

PIVOT ARM PLATED

$

$

Not available

15

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

16

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

17

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

18

Toro 27-6510

HANDLE LATCH SPACER

$5.49

$

Usually ships in 3-6 days

0

19

Toro 6-4500

WASHOUT PLUG

$

$

Not available

20

Toro 20-3170

PIVOT ARM C PLTD

$

$

Not available

21

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

22

Toro 3-5246

SPECIAL SCREW

$

$

Not available

23

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

24

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$

$

Not available

25

Toro 8-5230

Blade
(Superseded to 8-5230-03)

$38.99

$

Usually ships in 3-6 days

0

26

Toro 28-4640

Decal-Deck

$

$

Currently unavailable

27

Toro 6-8149

Housing

$

$

Currently unavailable

28

Toro 20-3180

PIVOT ARM D PLTD

$

$

Not available

29

Toro 10-9670

WHEEL ASM 7

$

$

Not available

30

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

31

Toro 12-2990

Bar Safety

$

$

Not available

32

Toro 28-3260

BAG CHUTE PIN

$

$

Not available

33

Toro 28-3250

BAG CHUTE CLIP PIN

$

$

Not available

34

Toro 28-1440

Deflector

$

$

Not available

35

Toro 28-1560

TORSION SPRING

$

$

Not available

36

Toro 28-1430

LIFT LOOP

$

$

Not available

37

Toro 28-6920

Decal Warning

$

$

Currently unavailable

38

Toro 28-3270

SLEEVE

$

$

Not available

39

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

40

Toro 3-2644

HINGE PIN

$

$

Not available

41

Toro 28-4650

Decal Shroud

$

$

Not available

42

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

43

Toro 2210-129

Deflector

$

$

Not available

44

Toro 2210-128

Screw
(Superseded to 2210-173)

$

$

Not available

Toro 19-5790

Drain Plug Wrench

Note: Not illustrated

$

$

Not available

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0
