166 R (128-166R100) - Cub Cadet Walk-Behind Mower Engine (1988) Max 4.0 HP-110702-3123-01 Part 1 Parts Diagram

Walk-Behind Mower Engine

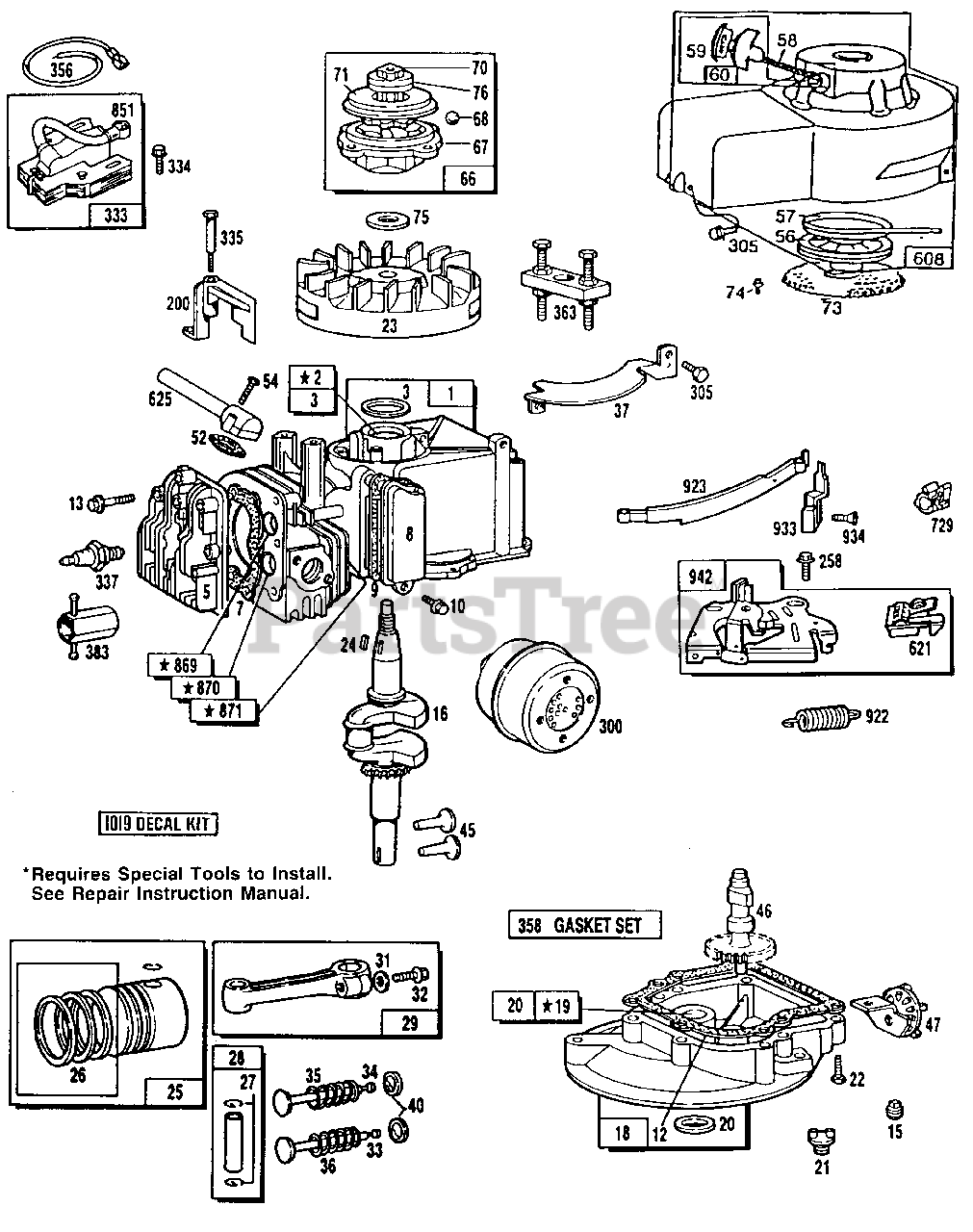

Max 4.0 HP-110702-3123-01 Part 1 Parts Diagram

  • Title

1

Cub Cadet BS-399168

Cylinder Assembly

$170.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-293708

Bushing-Cylinder
(Superseded to BS-399269)

Note: Note: Requires special tools for installation.

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 13

0

5

Cub Cadet BS-212996

Head-Cylinder

$16.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-270836

Gasket-Cylinder Hd.

Note: (Included in Gasket Set-Part No. 391662)

$

$

Not available

8

Cub Cadet BS-298383

Breather-Valve Chamber

$

$

Not available

9

Cub Cadet BS-270239

Gasket-Valve Cover

Note: (Included in Gasket Set-Part No. 391662)

$

$

Not available

10

Cub Cadet BS-93394

Screw-Breather Mounting Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet BS-270833

Gasket-Crankcase-.015" Thick
(Superseded to BS-692218)

Note: (Standard)

$

$

Not available

Cub Cadet BS-270895

Gasket-Crankcase-.005" Thick

Note: (Included in Gasket Set-Part No. 391662)

$9.99

$

In Stock, only 1 left!

0

Cub Cadet BS-270896

Gasket-Crankcase-.009" Thick

Note: (Included in Gasket Set-Part No. 391662)

$5.99

$

In Stock, Qty 8

0

13

Cub Cadet BS-93111

Screw-Cylinder Hd. (1-15/16" Long)
(Superseded to BS-691640)

$3.49

$

In Stock, Qty 11

0

15

Cub Cadet BS-91084

Plug-Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 14

0

16

Cub Cadet BS-262340

Crankshaft

$172.99

$

Usually ships in 2-12 days

0

18

Cub Cadet 491053

Base-Engine

$

$

Currently unavailable

19

Cub Cadet BS-293709

Bushing-Engine Base

Note: Note: Requires special tools for installation.

$11.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-391485

Seal-Oil

$9.99

$

In Stock, Qty 5

0

21

Cub Cadet BS-66768

Plug-Oil Filler
(Superseded to BS-281658S)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-93032

Screw-Base Mtg. Sem

$

$

Not available

23

Cub Cadet BS-395653

Flywheel-Magneto

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-391650

Piston Ass'y.-Standard

$63.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391651

Piston Ass'y.-.010" O.S.

$

$

Currently unavailable

Cub Cadet BS-391652

Piston Ass'y.-.020" O.S.

$

$

Currently unavailable

Cub Cadet BS-391653

Piston Ass'y.-.030" O.S.

Note: PISTON RING SETS: Note: For Chrome Piston Ring Set-Standard Size-Order Part

$

$

Currently unavailable

26

Cub Cadet BS-391654

Ring Set-Std. Piston

$

$

Not available

Cub Cadet BS-391656

Ring Set-.010" O.S. Piston

$

$

Currently unavailable

Cub Cadet BS-391658

Ring Set-.020" O.S. Piston

$

$

Currently unavailable

Cub Cadet BS-391660

Ring Set-.030" O.S. Piston

$

$

Currently unavailable

27

Cub Cadet BS-26026

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-391649

Pin Assembly-Piston- Standard

$

$

Currently unavailable

Cub Cadet BS-394861

Pin Assembly-Piston-.005" O.S.

$

$

Currently unavailable

29

Cub Cadet BS-391640

Rod Assembly-Connecting

Note: Note: For Connecting Rod with .020" Undersize Crankpin Bearing-Order No. 39

$

$

Not available

31

Cub Cadet BS-222282

Washer-Flat

Note: (One for Each Screw)

$

$

Currently unavailable

32

Cub Cadet BS-93670

Screw-Connecting Rod

$

$

Currently unavailable

33

Cub Cadet BS-212004

Valve-Exhaust

$31.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-261233

Valve-Intake

$

$

Currently unavailable

35

Cub Cadet BS-260552

Spring-Intake Valve

$5.49

$

In Stock, only 1 left!

0

36

Cub Cadet BS-26478

Spring-Exhaust Valve

$6.49

$

In Stock, only 1 left!

0

37

Cub Cadet BS-223150

Guard-Flywheel

$

$

Currently unavailable

40

Cub Cadet BS-93312

Retainer-Valve Spring
(Superseded to BS-692194)

Note: Used with valves with groove in stem.

$5.99

$

In Stock, Qty 9

0

45

Cub Cadet BS-261250

Tappet-Valve

$

$

Currently unavailable

46

Cub Cadet BS-395856

Gear-Cam

$

$

Currently unavailable

47

Cub Cadet BS-294652

Oil Slinger Gear and Bracket

$

$

Not available

52

Cub Cadet BS-270844

Gasket-Intake Elbow

Note: (Included in Gasket Set-Part No. 391662)

$13.99

$

Usually ships in 2-12 days

0

54

Cub Cadet BS-93485

Screw-Intake Elbow Mounting

$

$

Not available

56

Cub Cadet BS-280439

Pulley-Starter
(Superseded to BS-280439S)

$12.99

$

In Stock, Qty 10

0

57

Cub Cadet BS-490179

Spring-Rewind Starter

$

$

Not available

58

Cub Cadet BS-280406

Rope-Rewind Starter-82" Long
(Superseded to BS-280406S)

$8.49

$

In Stock, only 4 left!

0

59

Cub Cadet BS-396892

Insert-Starter Grip

$5.49

$

In Stock, only 1 left!

0

60

Cub Cadet BS-393152

Grip-Starter Rope

$4.99

$

Usually ships in 2-12 days

0

66

Cub Cadet BS-399671

Clutch Assembly-Rewind Starter

$34.99

$

In Stock, Qty 20+

0

67

Cub Cadet BS-394897

Housing-Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Cub Cadet BS-63770

Ball-Clutch

$

$

Not available

70

Cub Cadet BS-298436

Ratchet-Rewind Starter
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-221653

Washer-Clutch Retainer

$

$

Currently unavailable

73

Cub Cadet BS-221661

Screen-Starter Pulley
(Superseded to BS-691725)

$

$

Not available

74

Cub Cadet BS-93490

Screw-Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 8

0

75

Cub Cadet BS-220865

Washer

$

$

Currently unavailable

76

Cub Cadet BS-68238

Washer-Ratchet Sealing

$

$

Not available

200

Cub Cadet BS-68388

Blade-Governor

$26.99

$

Usually ships in 2-12 days

0

258

Cub Cadet BS-94018

Screw-Hex Head
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 8

0

300

Cub Cadet BS-394569

Muffler-Exhaust

$

$

Not available

305

Cub Cadet BS-94153

Screw-Blower Housing Mounting Sem

$

$

Not available

333

Cub Cadet BS-398593

Armature-Magneto
(Superseded to BS-591420)

$53.99

$

In Stock, only 2 left!

0

334

Cub Cadet BS-93381

Screw-Armature Mounting Sem

$

$

Not available

335

Cub Cadet BS-93435

Screw-Armature and Governor Blade Mounting Sem

$

$

Not available

337

Cub Cadet 298809

Plug-Spark (with Gasket) 1 1/2" High-37-42 mm.

$

$

Currently unavailable

356

Cub Cadet BS-398808

Wire-Ground

$11.99

$

In Stock, only 1 left!

0

358

Cub Cadet BS-391662

Gasket Set

$40.99

$

Usually ships in 2-12 days

0

363

Cub Cadet BS-19069

Puller-Flywheel

Note: (Optional Accessory)

$23.99

$

In Stock, only 1 left!

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 4 left!

0

608

Cub Cadet BS-399516

Starter Ass'y.-Rewind

Note: (5 o'clock)

$48.99

$

Usually ships in 2-12 days

0

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

625

Cub Cadet BS-397973

Tube-Fuel Intake

$

$

Currently unavailable

729

Cub Cadet BS-280470

Clip-Wire

$

$

Not available

851

Cub Cadet BS-221798

Terminal-Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

869

Cub Cadet BS-210879

Seat-Intake Valve

Note: (Standard)

$6.99

$

Usually ships in 2-12 days

0

870

Cub Cadet BS-211291

Seat-Exhaust Valve

Note: (Standard)

$

$

Not available

871

Cub Cadet BS-262001

Guide-Exhaust Valve

Note: Note: 63709 Guide-Intake Valve See Repair Instruction Manual.

$13.99

$

Usually ships in 2-12 days

0

922

Cub Cadet BS-261647

Spring-Band Brake

$

$

Not available

923

Cub Cadet BS-394867

Brake Assembly-Band

$39.99

$

Usually ships in 2-12 days

0

933

Cub Cadet BS-223448

Pivot-Band Brake

$

$

Currently unavailable

934

Cub Cadet BS-94037

Screw-Machine

$

$

Currently unavailable

942

Cub Cadet BS-397668

Control Plate-Band Brake

$

$

Currently unavailable

1019

Cub Cadet BS-491080

Decal (Label) Kit

$

$

Currently unavailable
