16585 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

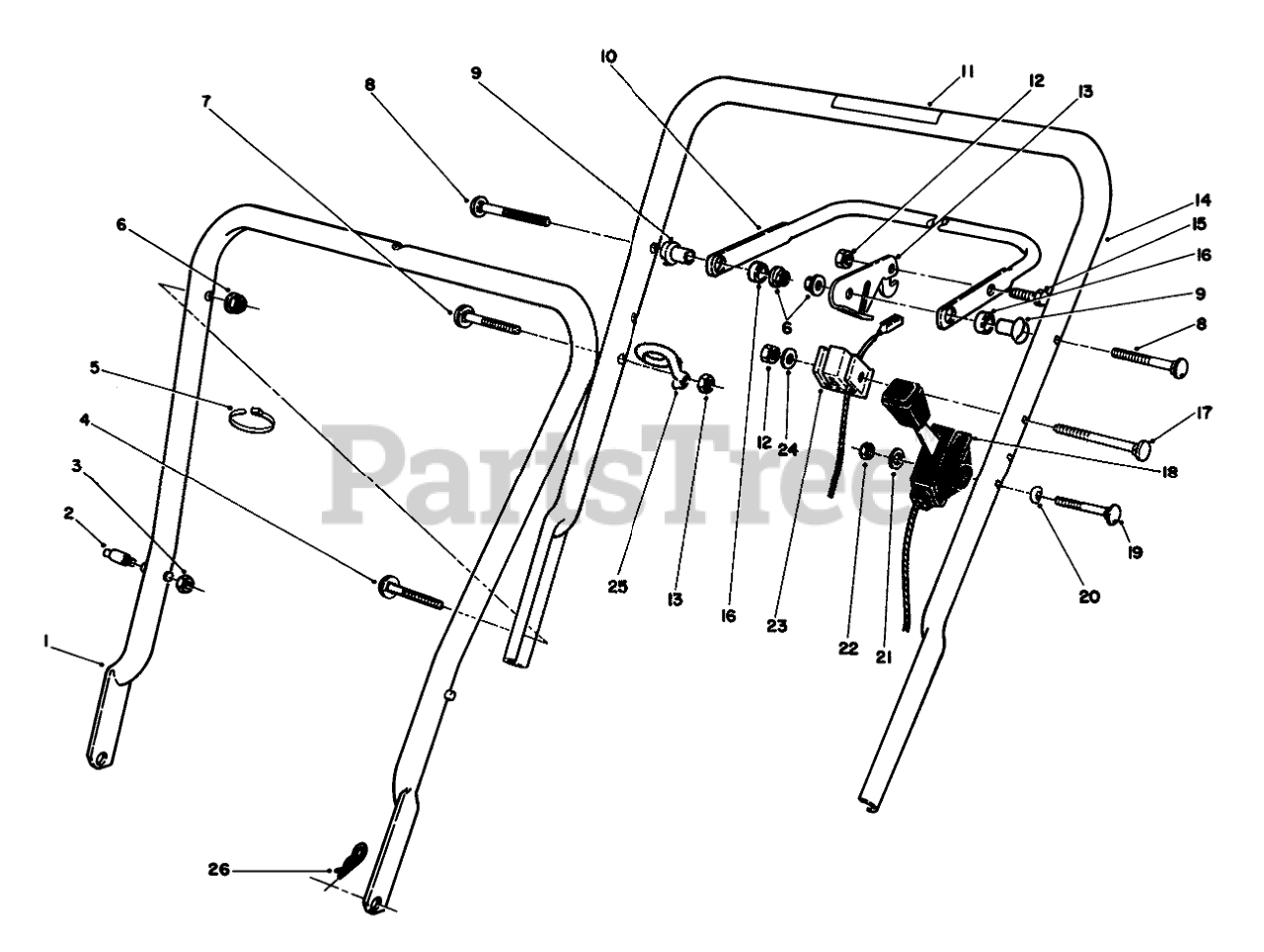

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 49-1690

LOWER HANDLE ASM

$152.99

$

Usually ships in 3-6 days

0

2

Toro 49-2750

HANDLE PIN

$32.99

$

Usually ships in 3-6 days

0

3

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

4

Toro 17-9424

SCREW
(Superseded to 6-6330)

$

$

Not available

5

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

6

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

7

Toro 46-6433

HANDLE SCREW

$11.99

$

Usually ships in 3-6 days

0

8

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 12

0

9

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

10

Toro 71-3080

Bar-Control
(Superseded to 71-3080-05)

$38.99

$

Usually ships in 3-6 days

0

11

Toro 56-6280

WARNING DECAL

$

$

Not available

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

14

Toro 12-5669

Handle-Upper (Incl. Ref. #11)

$

$

Not available

15

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

17

Toro 46-6434

HANDLE SCREW

$4.49

$

Usually ships in 3-6 days

0

18

Toro 49-4197

THROTTLE CONTROL - R&S

$

$

Not available

19

Toro 3290-424

SCREW-SHH

$2.99

$

Usually ships in 3-6 days

0

20

Toro 57-3150

Washer-Curved

$

$

Not available

21

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 46-6980

SUPPORT-CABLE

$15.99

$

Usually ships in 3-6 days

0

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 46-8080

Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

26

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

Toro 14-1959

Loose Parts

$

$

Not available
